Chemical Composition (wt.%): Element Content Ni Balance, ≥63 Cu 28-34 Fe ≤2.5 Mn ≤2.0 C ≤0.30 Si ≤0.50 S ≤0.024

Mechanical Properties: Property Typical Value Tensile Strength ≥480 MPa Yield Strength ≥170 MPa Elongation ≥35%

Applications: Marine engineering Chemical processing equipment Heat exchangers Valves and pumps Hydrofluoric acid service

Chemical Composition (wt.%): Element Content Ni Balance, ≥63 Cu 28-34 Fe ≤2.5 Mn ≤2.0 C ≤0.30 Si ≤0.50 S ≤0.024

Mechanical Properties: Property Typical Value Tensile Strength ≥480 MPa Yield Strength ≥170 MPa Elongation ≥35%

Applications: Marine engineering Chemical processing equipment Heat exchangers Valves and pumps Hydrofluoric acid service

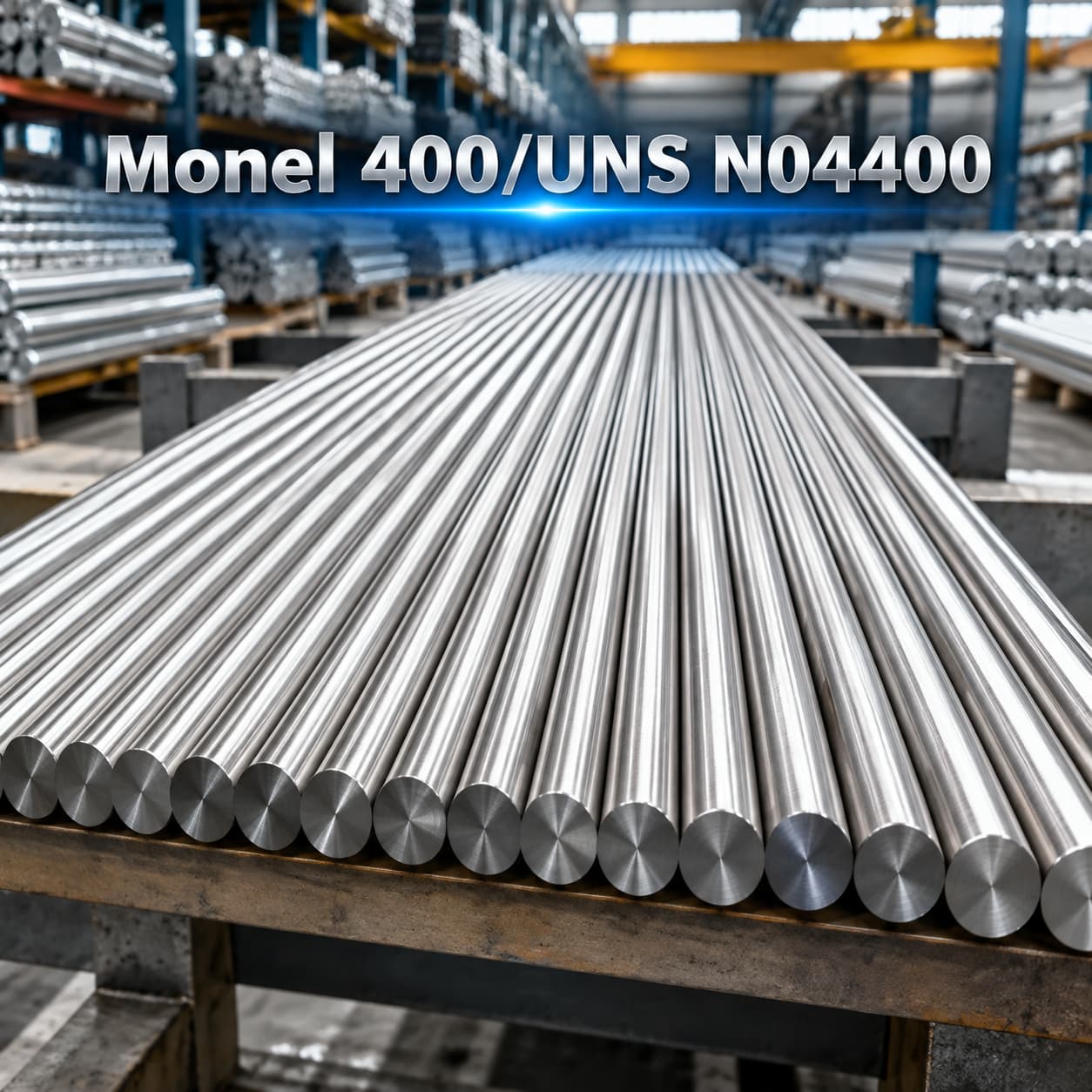

Alloy 400 / UNS N04400

Grade: Monel 400/UNS N04400/Alloy 400/W.Nr. 2.4360/NiCu30Fe/Nickel Alloy 400

Sheet/Plate: 0.3mm-150mm

Strip/Foil: 0.02mm-16mm

Pipe: 6mm*0.5mm-1200mm*100mm

Bar: Ф6mm – Ф600mm

Wire: Ф0.01mm – Ф6mm

Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.

Standard: ASTM/ASME/AMS

MONEL 400 is a nickel-copper alloy offering excellent corrosion resistance in seawater, hydrofluoric acid and alkaline environments. It combines good strength, toughness, ductility and weldability, making it one of the most widely used corrosion-resistant nickel alloys for marine, chemical and industrial applications.

Chemical Composition (wt.%):
