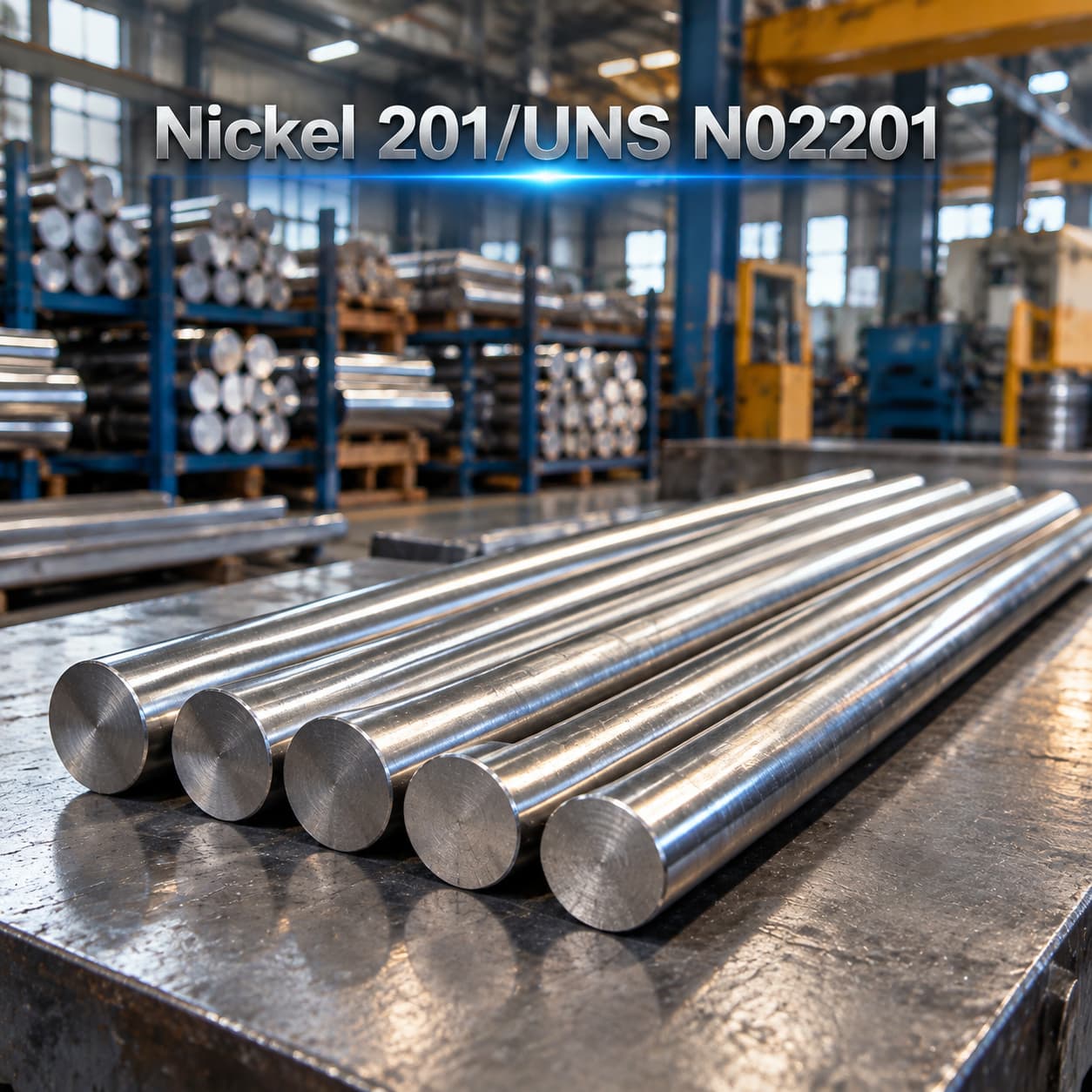

Nickel 201/UNS N02201

Grade: Nickel 201/UNS N02201

Sheet/Plate: 0.3mm-150mm

Strip/Foil: 0.02mm-16mm

Pipe: 6mm*0.5mm-1200mm*100mm

Bar: Ф6mm – Ф600mm

Wire: Ф0.01mm – Ф6mm

Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.

Standard: ASTM/ASME/AMS

Nickel 201 is the low carbon version of commercially pure Nickel 200. Limiting carbon to 0.02 percent reduces susceptibility to graphitization during elevated temperature exposure, making this grade preferable for many applications above approximately 315°C. It retains useful corrosion resistance and conductivity while offering good ductility for forming. Typical uses include hot caustic equipment, electronic components and parts requiring extensive spinning or cold forming.

Chemical composition

Element	Weight percent
Ni plus Co	99.0 min
Fe	0.40 max
Mn	0.35 max
Si	0.35 max
Cu	0.25 max
C	0.02 max
S	0.01 max

Limiting chemical composition in weight percent; nickel includes cobalt. [6]

Product specifications

Product form	Specification route	Qualification
Plate sheet strip	ASTM B162 / ASME SB162	Rolled products
Rod bar	ASTM B160 / ASME SB160	Wrought solid products
Seamless pipe tube	ASTM B161 / ASME SB161	General seamless products
Heat exchanger tube	ASTM B163 / ASME SB163	Seamless condenser and heat exchanger tube
Welded pipe	ASTM B725 / ASME SB725	Welded pipe
Welded tube	ASTM B730 / ASME SB730	Welded tube
Wire	ISO 9724; DIN 17753	Manufacturer referenced specifications

High temperature suitability also depends on environment, pressure and the governing construction code. Specify N02201 explicitly in the purchase order. [6, 13]

Mechanical properties

Product and condition	Tensile MPa	Yield MPa	Elongation %
Annealed rod bar	345–415	70–170	40–60
Annealed hot rolled plate	345–485	83–240	40–60
Annealed seamless pipe tube	345–485	70–195	40–60

Nominal room temperature ranges; yield is 0.2 percent offset and elongation uses approximately 51 mm gauge length. [6]

Application areas

Caustic evaporators
Combustion boats and plater bars
Electronic components and extensively formed parts
