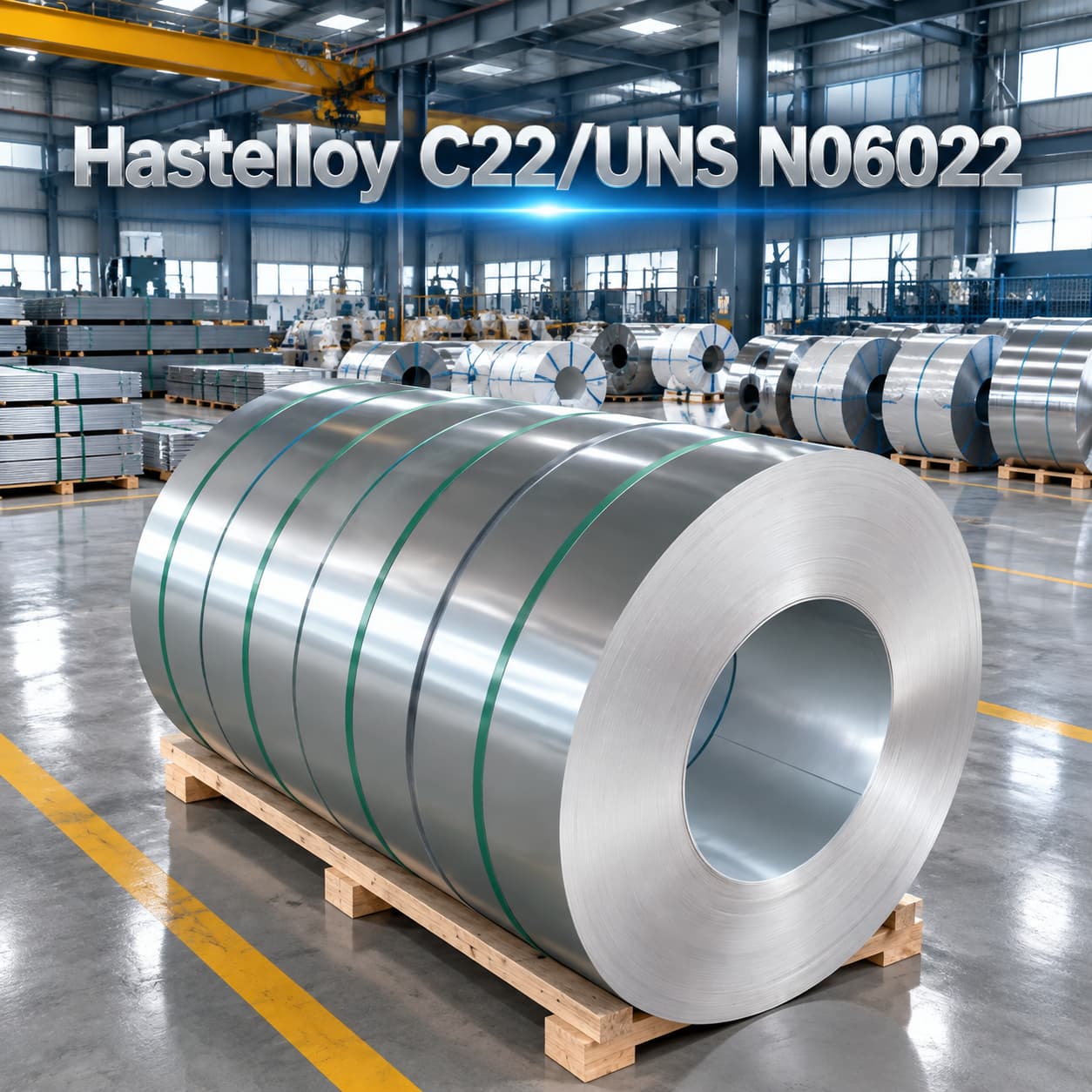

Alloy C22/UNS N06022

Grade: Hastelloy C22/UNS N06022/Alloy C22

Sheet/Plate: 0.3mm-150mm

Strip/Foil: 0.02mm-16mm

Pipe: 6mm*0.5mm-1200mm*100mm

Bar: Ф6mm – Ф600mm

Wire: Ф0.01mm – Ф6mm

Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.

Standard: ASTM/ASME/AMS

Alloy 22 (UNS N06022) is the most versatile Nickel-Chromium-Molybdenum-Tungsten alloy with controlled Iron. Due to Alloy 22’s content this alloy exhibits excellent resistance to both oxidising and reducing acid environments as well as those containing mixed acids. Alloy 22 is particularly useful for resistance to pitting and crevice corrosion in acid-halide environments. Alloy 22 is used in pickling chlorination, sulphonation plants, pollution control, chemical processing, marine and nuclear fuel reprocessing.

Chemical Compositions Of Hastelloy C-22 Nickel Alloy

Composition

Content (%)

Min.

Bal.

2.5

Max.

22.5

3.5

2.5

0.015

0.5

0.08

0.02

0.35

0.02

Standards

Bar

Sheet/Strip

Pipe

ASTM B462
ASTM B574

ASTM B575

ASTM B906

ASTM B622
ASTM B619
ASTM B626

Mechanical Properties (Minimum Value At 20℃)

Tensile Strength (σb/MPa)	Yield Strength (σp0.2/MPa)	Elongation (σ5/%)
758	363	62

Applications

The exceptional corrosion resistance of C22 has promoted its use in many different markets wherever harsh environments are encountered, including the chemical process, pharmaceutical, food processing, oil & gas, power generation, and the paper industries. CRA offers specialty alloy C22 seamless pipe & tube for use in multiple industries and applications, including:
▪ Chemical processes
▪ Food Processing
▪ Pharmaceutical Industry
▪ Oil & Gas
▪ Power Generation
▪ Pulp & Paper Industries
