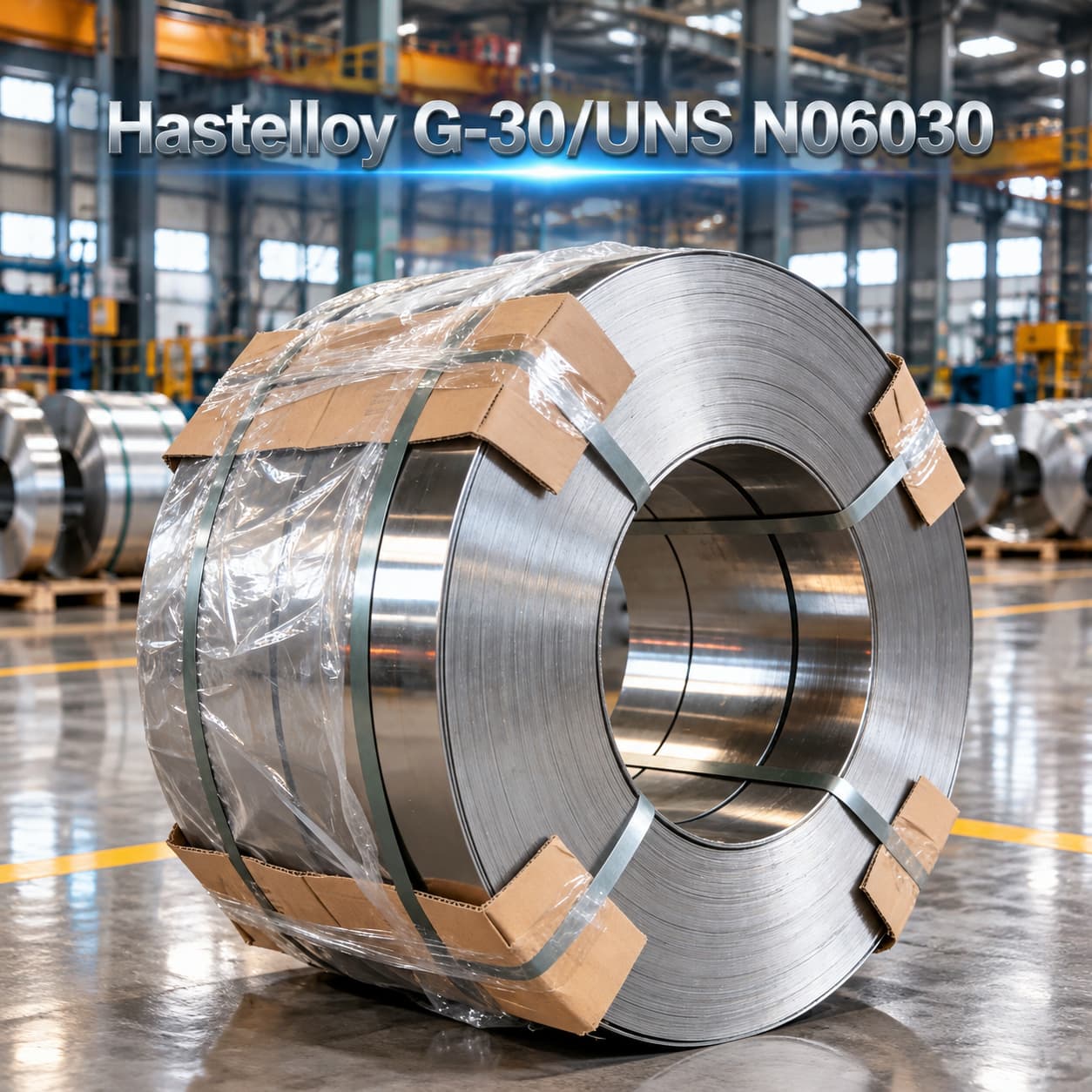

Alloy G-30/UNS N06030

Grade: Hastelloy G-30/UNS N06030/Alloy G30

Sheet/Plate: 0.3mm-150mm

Strip/Foil: 0.02mm-16mm

Pipe: 6mm*0.5mm-1200mm*100mm

Bar: Ф6mm – Ф600mm

Wire: Ф0.01mm – Ф6mm

Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.

Standard: ASTM/ASME/AMS

Hastelloy G-30 (UNS N06030 / W.Nr. 2.4603) is an improved version of nickel-chromium-iron-molybdenum-copper alloy G-3. With higher chromium, added cobalt and tungsten, the G-30 shows superior corrosion resistance over most other nickel and iron based alloys in commercial phosphoric acids as well as complex environments containing highly oxidizing acids. The resistance of the alloy to the formation of grain boundary precipitates in the heat-affected zone makes it suitable for use in most chemical process applications in the as-welded condition.

Chemical Compositions Of Hastelloy G-30 Nickel Alloy

Alloy

Nb+Ta

Hastelloy G-30

≤0.03

≤0.80

≤1.50

≤0.04

≤0.03

28.0-31.5

Bal

≤5.00

4.0-6.0

1.5-4.0

0.3-1.5

1.0-2.4

13.0-17.0

Product Forms And Standards

Rod, Bar, Wire and Forgings	ASTM B462, ASTM B581, ASME SB462, ASME SB581
Plate, Sheet and Strip	ASTM B582
Pipe and Tube	ASTM B619, ASTM B622, ASTM B626, ASME SB619, ASME SB622, ASME SB626
Welding Product	AWS A5.14 ERNiCrMo-11, ASME Ⅱ SFA-5.14 ERNiCrMo-11, ASME Ⅸ F-No.45
Others	ASTM B366, ASTM B462, ASME SB366, ASME SB462

Typical Physical And Mechanical Properties (RT, Solution Annealed)

Density, g/cm3	Melting Point, ℃	Tensile Strength, MPa	Yield Strength, MPa	ELongation, %	Hardness, HB
8.22	1332-1361	690	325	56	–

Applications

▪ Phosphoric Acid Service
▪ Sulfuric Acid Service
▪ Nitric Acid Service
▪ Nuclear Fuel Reprocessing
▪ Nuclear Waste Processing
▪ Pickling Operations
▪ Petrochemicals
▪ Fertilizer Manufacture
▪ Pesticide Manufacture
▪ Gold Ore Extraction
