Chemical Compositions Of Hastelloy C-2000 Nickel Alloy Alloy C Si Mn P S Cr Ni Co Mo Al Cu Fe Hastelloy C-2000 ≤0.01 ≤0.08 ≤0.50 ≤0.025 ≤0.010 22.0-24.0 Bal ≤2.0 15.0-17.0 ≤0.50 1.3-1.9 17.0-20.0

Typical Physical And Mechanical Properties (RT, Solution Annealed) Density, g/cm3 Melting Point, ℃ Tensile Strength, MPa Yield Strength, MPa ELongation, % Hardness, HB 8.50 1328-1358 760 363 64 –

Chemical Compositions Of Hastelloy C-2000 Nickel Alloy Alloy C Si Mn P S Cr Ni Co Mo Al Cu Fe Hastelloy C-2000 ≤0.01 ≤0.08 ≤0.50 ≤0.025 ≤0.010 22.0-24.0 Bal ≤2.0 15.0-17.0 ≤0.50 1.3-1.9 17.0-20.0

Typical Physical And Mechanical Properties (RT, Solution Annealed) Density, g/cm3 Melting Point, ℃ Tensile Strength, MPa Yield Strength, MPa ELongation, % Hardness, HB 8.50 1328-1358 760 363 64 –

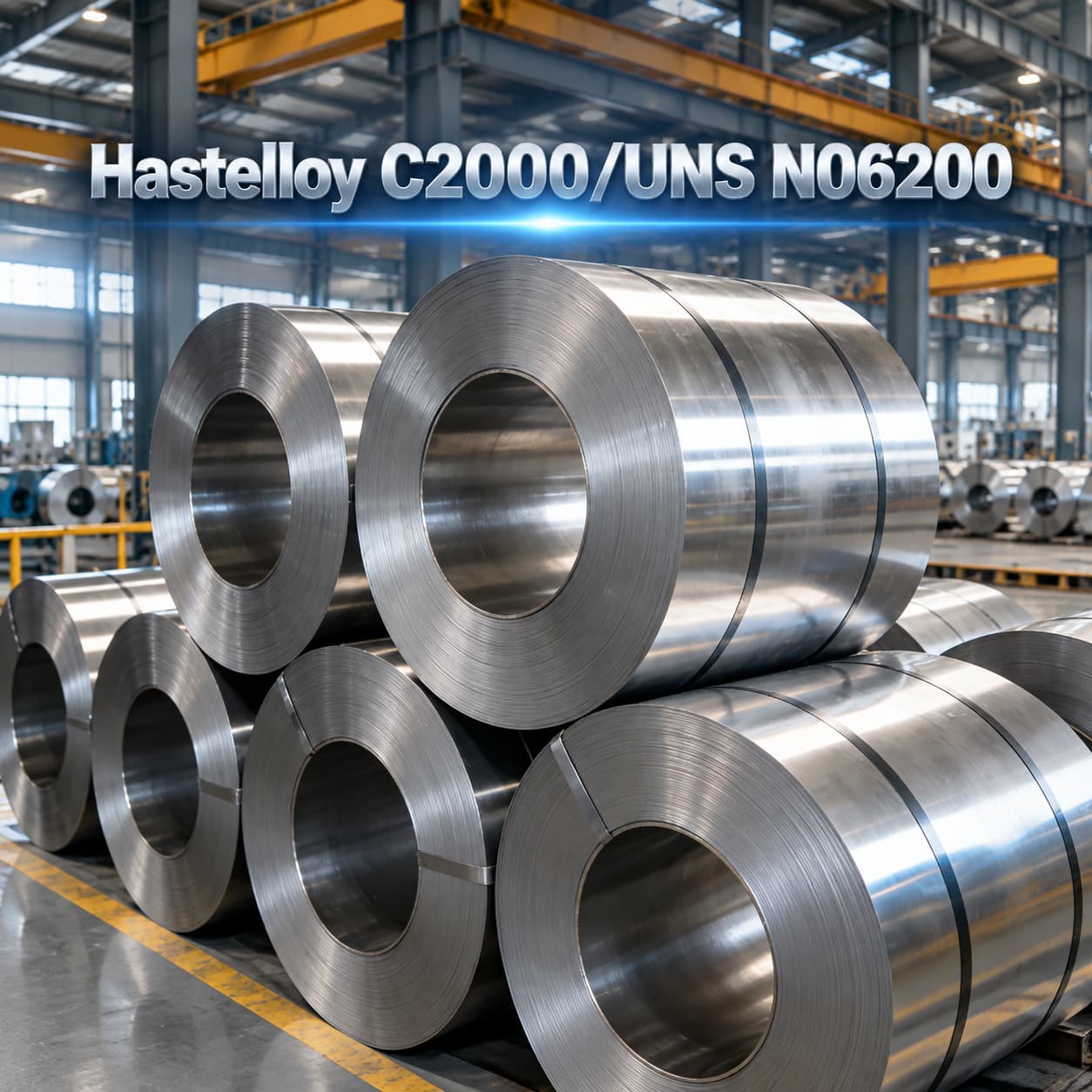

Alloy C2000/UNS N06200

Grade: Hastelloy C2000/UNS N06200/Alloy C2000

Sheet/Plate: 0.3mm-150mm

Strip/Foil: 0.02mm-16mm

Pipe: 6mm*0.5mm-1200mm*100mm

Bar: Ф6mm – Ф600mm

Wire: Ф0.01mm – Ф6mm

Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.

Standard: ASTM/ASME/AMS

Hastelloy C-2000 (UNS N06200 / W.Nr. 2.4675) is unique among the versatile nickel-chromium-molybdenum materials in having a deliberate copper addition. This provides greatly enhanced resistance to sulfuric acid. It also has a high chromium content, to maximize its resistance to oxidizing chemicals and process streams contaminated with ferric ions and dissolved oxygen.

Chemical Compositions Of Hastelloy C-2000 Nickel Alloy

Alloy

Hastelloy C-2000

≤0.01

≤0.08

≤0.50

≤0.025

≤0.010

22.0-24.0

Bal

≤2.0

15.0-17.0

≤0.50

1.3-1.9

17.0-20.0

Typical Physical And Mechanical Properties (RT, Solution Annealed)

Density, g/cm3	Melting Point, ℃	Tensile Strength, MPa	Yield Strength, MPa	ELongation, %	Hardness, HB
8.50	1328-1358	760	363	64	–

Applications

▪ Chemical process industry reactors, heat exchangers, columns, and piping
▪ Pharmaceutical industry reactors and dryers
▪ Flue gas desulfurization systems

Introduction

Specification

Chemical Compositions Of Hastelloy C-2000 Nickel Alloy

Alloy

Hastelloy C-2000

≤0.01

≤0.08

≤0.50

≤0.025

≤0.010

22.0-24.0

Bal

≤2.0

15.0-17.0

≤0.50

1.3-1.9

17.0-20.0

Mechanical

Typical Physical And Mechanical Properties (RT, Solution Annealed)

Density, g/cm3	Melting Point, ℃	Tensile Strength, MPa	Yield Strength, MPa	ELongation, %	Hardness, HB
8.50	1328-1358	760	363	64	–

Application

Applications

▪ Chemical process industry reactors, heat exchangers, columns, and piping
▪ Pharmaceutical industry reactors and dryers
▪ Flue gas desulfurization systems
