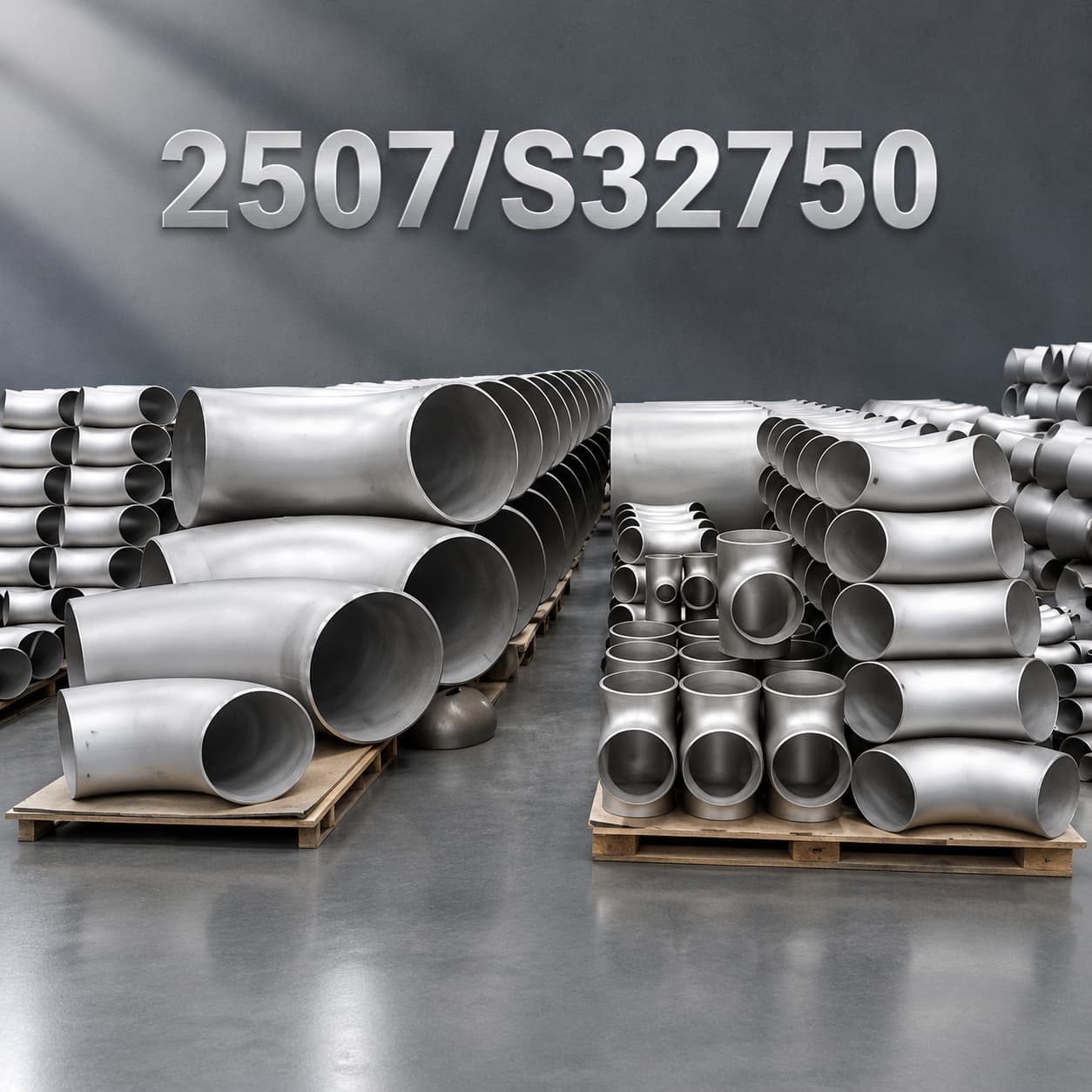

2507 Super Duplex Stainless Steel Elbow

Grade: 2507/S32750 /S32760

Elbow types:

90° Long Radius, 90° Short Radius, 45° Elbow, 180° Return, 3D / 5D Elbow

Standards:

ASME B16.9, EN 10253-4:2025, JIS B2312/2313 etc.

2507 is a super duplex stainless steel designed for highly demanding corrosive services. Its high chromium, molybdenum and nitrogen contents provide excellent resistance to pitting, crevice corrosion and chloride stress-corrosion cracking, while the duplex structure provides high mechanical strength. 2507 fittings are widely specified for seawater, offshore oil and gas, desalination and aggressive chemical-process piping.

Chemical Composition

Element	Specified / Typical Range (wt. %)
C	≤0.030
Mn	≤1.20
Si	≤0.80
P	≤0.035
S	≤0.020
Cr	24.0–26.0
Ni	6.0–8.0
Mo	3.0–5.0
N	0.24–0.32
Cu	0.50 max.
Fe	Balance

Mechanical Properties

Property	Minimum / Requirement
Tensile Strength, min.	795 MPa
Yield Strength, 0.2%, min.	550 MPa
Elongation, min.	25%
Hardness	As required by the applicable fitting specification

Chemical and petrochemical process piping
Oil and gas transmission and production systems
Power generation and utility piping
Food, beverage and pharmaceutical systems
Water treatment and desalination
Marine and offshore piping
