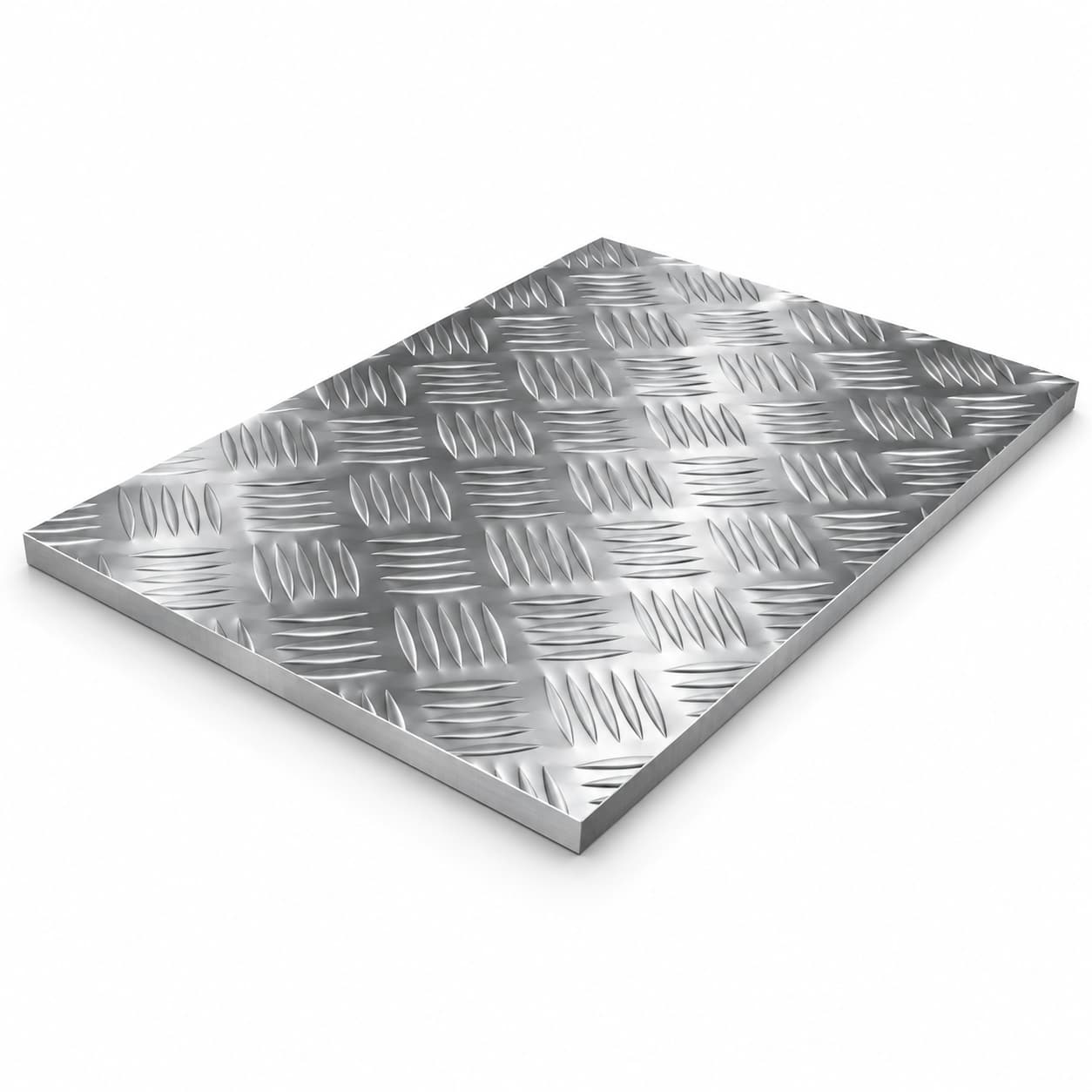

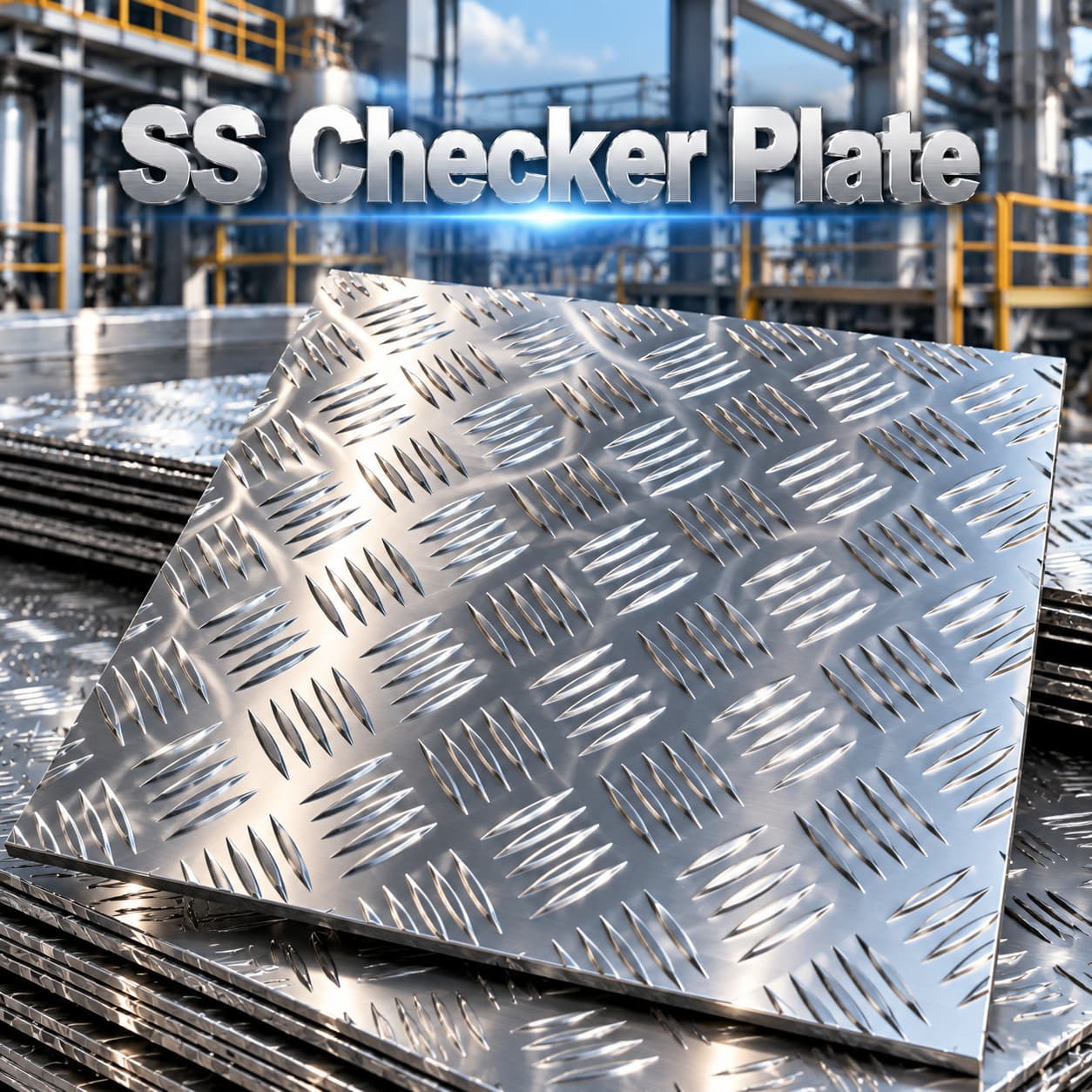

Stainless Steel Checker Plate

Grade: 304/304L, 316/316L

Standard: ASTM A240/A240M

Thickness: 3.0mm-10.0mm

Width: 1500mm/1800mm/2000mm, cut size are available.

A stainless steel floor plate (also known as a checker plate) is a metal sheet with a raised surface pattern (diamonds, tears, checker plate, or similar patterns) designed to reduce the risk of slipping.

It combines strength, durability, and corrosion resistance, making it ideal for industrial, commercial, outdoor, or high-maintenance environments.

Its resistance to chemicals and repeated washdowns makes it a preferred choice for sectors such as food processing, commercial kitchens, and laboratories.

Chemical composition	304 (UNS S30400/ EN1.4301)	304L (UNS S30403/EN 1.4307)
Carbon, Max%	0.07	0.03
Manganese, Max%	2	2
Phosphorus, Max%	0.045	0.045
Sulphur, Max%	0.03	0.03
Silicon, Max%	0.75	0.75
Chromium Range%	17.5-19.5	17.5-19.5
Nickel Range%	8.0-10.5	8.0-12.0
Nitrogen, Max%	0.1	0.1

Chemical composition	316 (UNS S31600/ EN1.4401)	316L (UNS S31603/EN 1.4404)
Carbon, Max%	0.08	0.03
Manganese, Max%	2	2
Phosphorus, Max%	0.045	0.045
Sulphur, Max%	0.03	0.03
Silicon, Max%	0.75	0.75
Chromium Range%	16.0-18.0	16.0-18.0
Nickel Range%	10.0-14.0	10.0-14.0
Nitrogen, Max%	0.1	0.1
Molybdenum Range%	2.0-3.0	2.0-3.0

Mechanical Properties	304	304L
Tensile Min	75 ksi	70 ksi
Yield Min	30 ksi	25 ksi
Elongation Min	40%	40%
Hardness Max	92 HRB	92 HRB

Mechanical Properties	316	316L
Tensile Min	75 ksi	70 ksi
Yield Min	30 ksi	25 ksi
Elongation Min	40%	40%
Hardness Max	95 HRB	95 HRB

Thanks to their textured surface and resistance to corrosion and chemicals, these plates are well suited for:

Industrial and commercial flooring
Stairs, ramps, and landings
Walkways and work platforms
Heavy equipment, truck steps, and trailers
Wet, outdoor, or washdown-intensive environments exposed to chemicals
