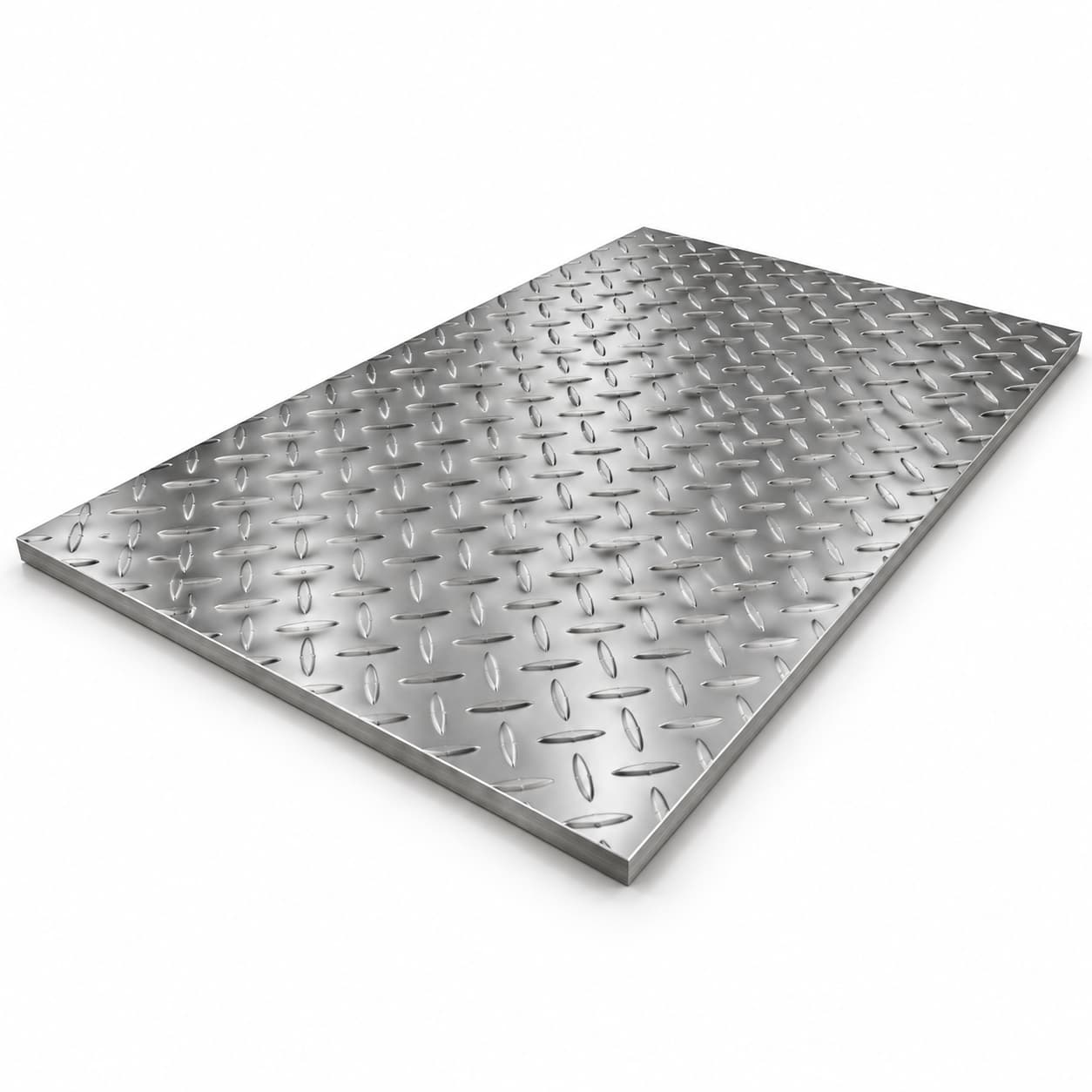

Stainless Steel Diamond Plate
Grade: 304/304L, 316/316L
Standard: ASTM A240/A240M
Thickness: 3.0mm-10.0mm
Width: 1500mm/1800mm/2000mm, cut size are available.
- Fast Shipping / Ready Stock
- ISO 9001 Direct Factory
- Custom Cutting & Processing
- 100% MTC & SGS Inspection Supported
Diamond stainless steel sheets have raised diamond pattern on the surface, which provide enhanced slip resistance and durability. Diamond pattern stainless steel sheet is commonly used in applications that require traction and protection, such as stair treads, vehicle running boards, and industrial flooring.
Diamond stainless steel sheets are not only suitable for decorative elevators, architectural decoration, metal curtains, wall industries, but also widely used in the field of innovative product design technology. Due to the fast and smooth conveying function of the stainless steel grid plate, it is especially suitable for food machinery, pharmaceutical machinery, electronic weighing apparatus, freezer cold storage, building roofing, packaging and printing machinery, film printing, logistics equipment, transmission rails/belts, urban rail transit vehicles and Automatic doors and body systems for metro light rail vehicles. This diamond pattern stainless steel sheet is guaranteed not to stick to the conveyor belt or the product being conveyed.
| Chemical composition | 304 (UNS S30400/ EN1.4301) | 304L (UNS S30403/EN 1.4307) |
| Carbon, Max% | 0.07 | 0.03 |
| Manganese, Max% | 2 | 2 |
| Phosphorus, Max% | 0.045 | 0.045 |
| Sulphur, Max% | 0.03 | 0.03 |
| Silicon, Max% | 0.75 | 0.75 |
| Chromium Range% | 17.5-19.5 | 17.5-19.5 |
| Nickel Range% | 8.0-10.5 | 8.0-12.0 |
| Nitrogen, Max% | 0.1 | 0.1 |
| Chemical composition | 316 (UNS S31600/ EN1.4401) | 316L (UNS S31603/EN 1.4404) |
| Carbon, Max% | 0.08 | 0.03 |
| Manganese, Max% | 2 | 2 |
| Phosphorus, Max% | 0.045 | 0.045 |
| Sulphur, Max% | 0.03 | 0.03 |
| Silicon, Max% | 0.75 | 0.75 |
| Chromium Range% | 16.0-18.0 | 16.0-18.0 |
| Nickel Range% | 10.0-14.0 | 10.0-14.0 |
| Nitrogen, Max% | 0.1 | 0.1 |
| Molybdenum Range% | 2.0-3.0 | 2.0-3.0 |
| Mechanical Properties | 304 | 304L |
| Tensile Min | 75 ksi | 70 ksi |
| Yield Min | 30 ksi | 25 ksi |
| Elongation Min | 40% | 40% |
| Hardness Max | 92 HRB | 92 HRB |
| Mechanical Properties | 316 | 316L |
| Tensile Min | 75 ksi | 70 ksi |
| Yield Min | 30 ksi | 25 ksi |
| Elongation Min | 40% | 40% |
| Hardness Max | 95 HRB | 95 HRB |
Thanks to their textured surface and resistance to corrosion and chemicals, these plates are well suited for:
- Industrial and commercial flooring
- Stairs, ramps, and landings
- Walkways and work platforms
- Heavy equipment, truck steps, and trailers
- Wet, outdoor, or washdown-intensive environments exposed to chemicals
