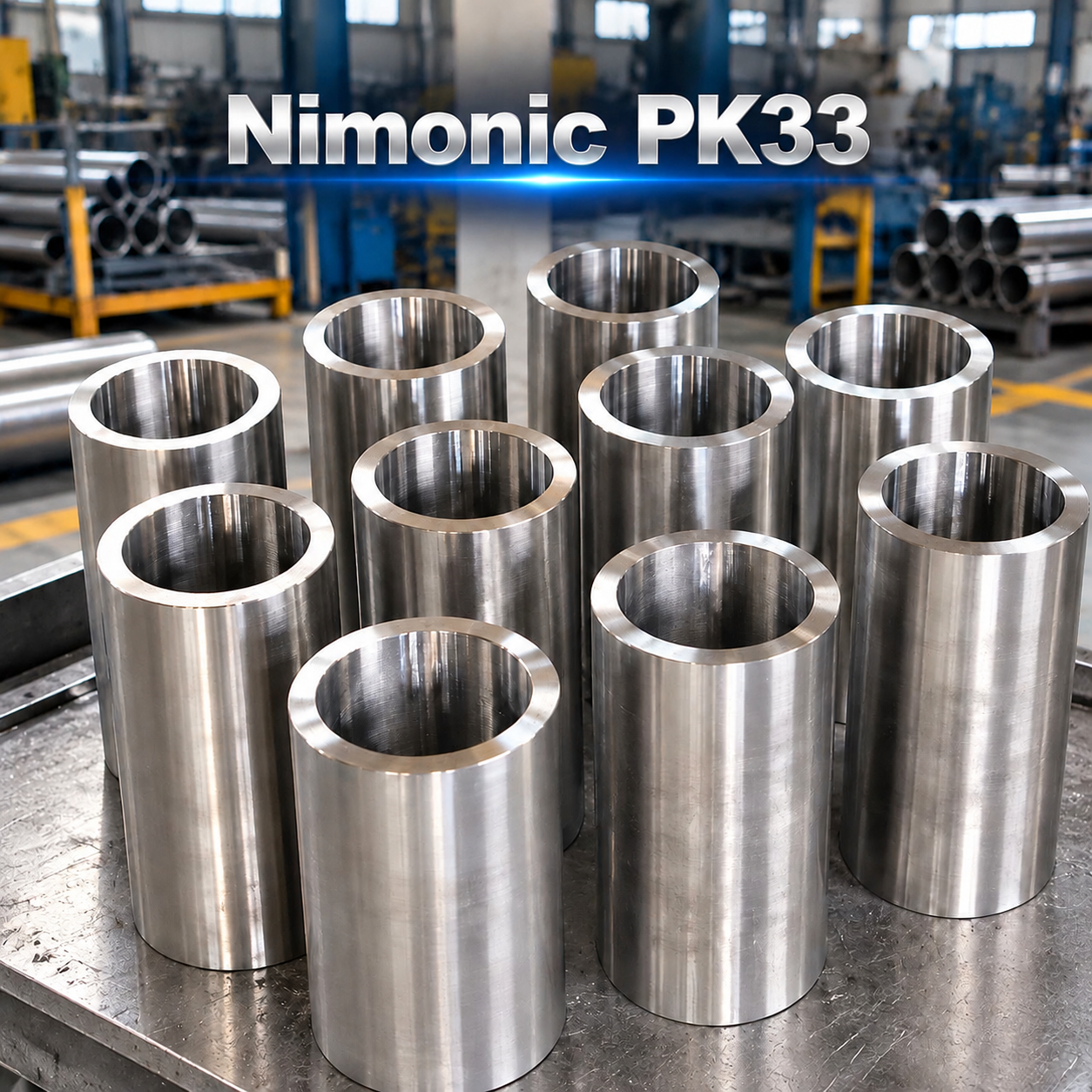

Alloy PK33/Nimonic PK33

Grade: Nimonic PK33/Alloy PK33/UNS N07033

Sheet/Plate: 0.3mm-150mm

Strip/Foil: 0.02mm-16mm

Pipe: 6mm*0.5mm-1200mm*100mm

Bar: Ф6mm – Ф600mm

Wire: Ф0.01mm – Ф6mm

Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.

Standard: ASTM/ASME/AMS

NIMONIC PK33 is a nickel chromium cobalt alloy developed for demanding welded sheet components. Molybdenum strengthens the matrix, while aluminum and titanium enable age hardening. It combines elevated-temperature strength with useful ductility after welding and resistance to thermal cycling. Turbine combustion hardware is a principal application, and solution treatment followed by aging establishes the final operating condition.

Chemical composition

Element	Weight percent	Element	Weight percent
Ni	Balance	Cr	16–20
Co	12–16	Mo	5–9
Ti	1.5–3.0	Al	1.7–2.5
C	0.07 max	Si	0.5 max
Cu	0.2 max	Fe	1.0 max
Mn	0.5 max	B	0.005 max
Zr	0.06 max	S	0.015 max

Mechanical properties

Typical forged-bar tensile properties, bulletin Table 9. Treatment: 2 h at 1100°C / air cool + 4 h at 850°C / air cool. Proof stress is at 0.1% offset, not 0.2%.

Test temperature °C	0.1% proof MPa	Tensile MPa	Elongation %
20	664	1127	33
500	587	973	37
600	571	957	31
700	571	973	21
800	571	757	18

Elongation is reported on the proportional specimen convention printed in Table 9. Bar values differ from the bulletin sheet values.

Application areas

Gas turbine combustion chambers
Jet pipes and reheat systems
Forged turbine ring components
