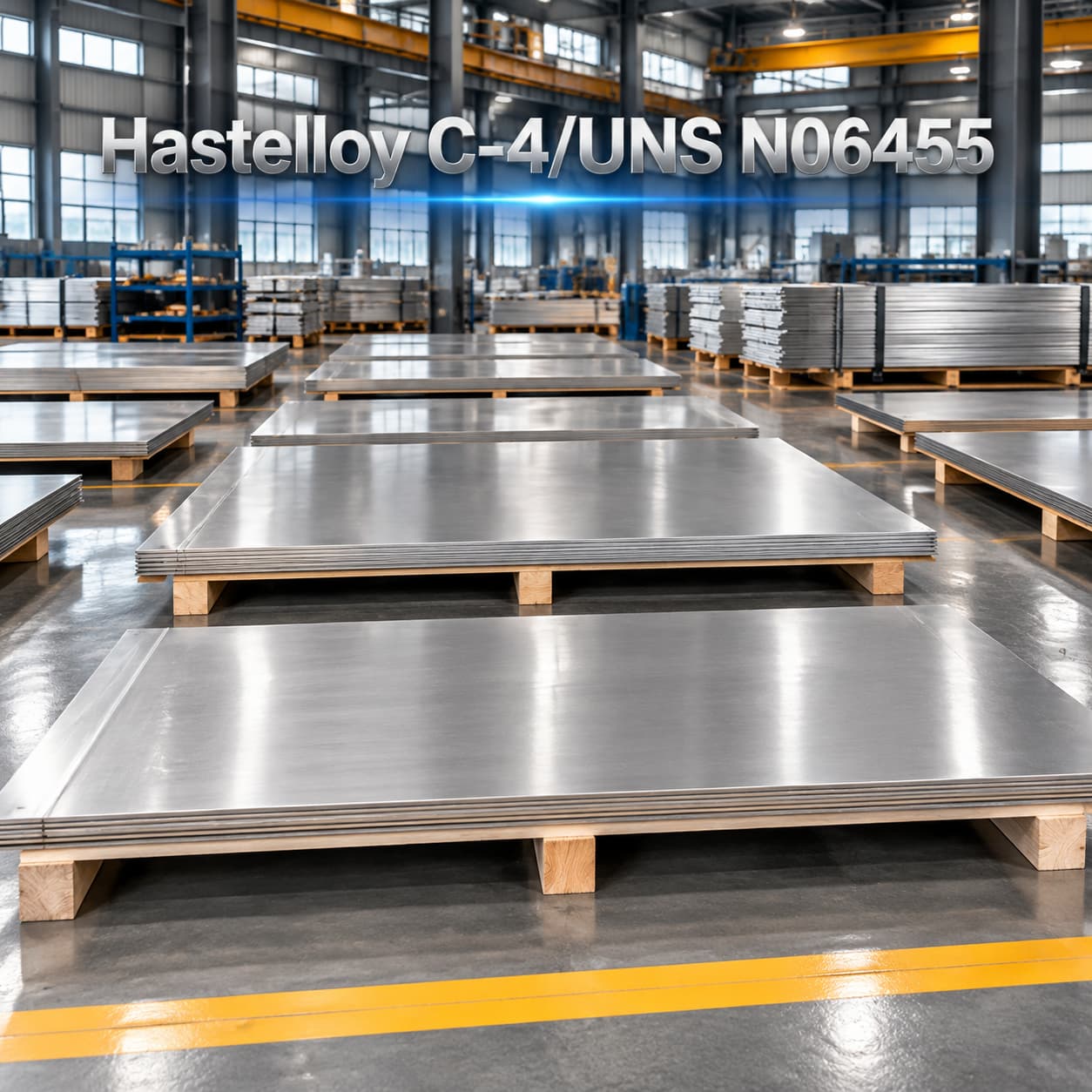

Alloy C-4/UNS N06455

Grade: Hastelloy C-4/UNS N06455/Alloy C4

Sheet/Plate: 0.3mm-150mm

Strip/Foil: 0.02mm-16mm

Pipe: 6mm*0.5mm-1200mm*100mm

Bar: Ф6mm – Ф600mm

Wire: Ф0.01mm – Ф6mm

Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.

Standard: ASTM/ASME/AMS

Hastelloy C-4 is a Nickel-Chromium-Molybdenum alloy that offers exceptional stabilization at the elevated temperatures, good ductility and resistance to corrosion properties. It retains its characteristics even after aging up to 1200oF to 1900oF or 649oC to 1038oC. Alloy C-4 offers resistance to grain development precipitation in the welding area so it is highly suitable for the chemical processes in the welding condition. It offers extremely high resistance to stress corrosion cracking and oxidizing conditions up to 1900oF or 1038oC. Hastelloy C-4 offers resistance to mineral acids, organic and inorganic acids, sea water and brine solutions. It has service temperature up to 1900oF or 1038oC. Outstanding resistance to high temperature corrosion and stress corrosion cracking. Great material for use in chemical processing plants and nuclear fuel processing.

Chemical Composition

The chemical composition of Hastelloy C-4 is outlined in the following table.

Element	Content (%)
Chromium, Cr	14-18
Molybdenum, Mo	14-17
Iron, Fe	3 max
Cobalt, Co	2 max
Manganese, Mn	1 max
Titanium, Ti	0.7 max
Silicon, Si	0.08 max
Phosphorus, P	0.04 max

Standards:

ASTM B574
▪ ASTM B575
▪ ASTM B619
▪ ASTM B622
▪ ASTM B626
▪ DIN 2.4610

Mechanical Properties

The mechanical properties of Hastelloy C-4 are outlined in the following table.

Properties	Metric	Imperial
Tensile strength	738 MPa	107000 psi
Yield strength ( @ 0.2% offset)	492 MPa	71400 psi
Elastic modulus	211 GPa	30600 ksi
Elongation at break (in 50.8 mm)	42%	42%

Applications

▪ Chemical processing equipment
▪ Nuclear fuel processing
