Chemical Composition (wt.%): Nickel (%) Copper (%) Iron (%) Manganese (%) Sulfur (%) Zinc (%) Lead (%) Phosphorous (%) 29.0 to 33.0 Balance 0.4 to 1.0 1.0 Max 0.020 Max 1.0 Max 0.05 Max 0.020 Max

Mechanical Properties: Yield Strength (Minimum) Tensile Strength (Minimum) Elongation (Minimum) KSI MPA KSI MPA Percentage 24 165 56 385 46

Chemical Composition (wt.%): Nickel (%) Copper (%) Iron (%) Manganese (%) Sulfur (%) Zinc (%) Lead (%) Phosphorous (%) 29.0 to 33.0 Balance 0.4 to 1.0 1.0 Max 0.020 Max 1.0 Max 0.05 Max 0.020 Max

Mechanical Properties: Yield Strength (Minimum) Tensile Strength (Minimum) Elongation (Minimum) KSI MPA KSI MPA Percentage 24 165 56 385 46

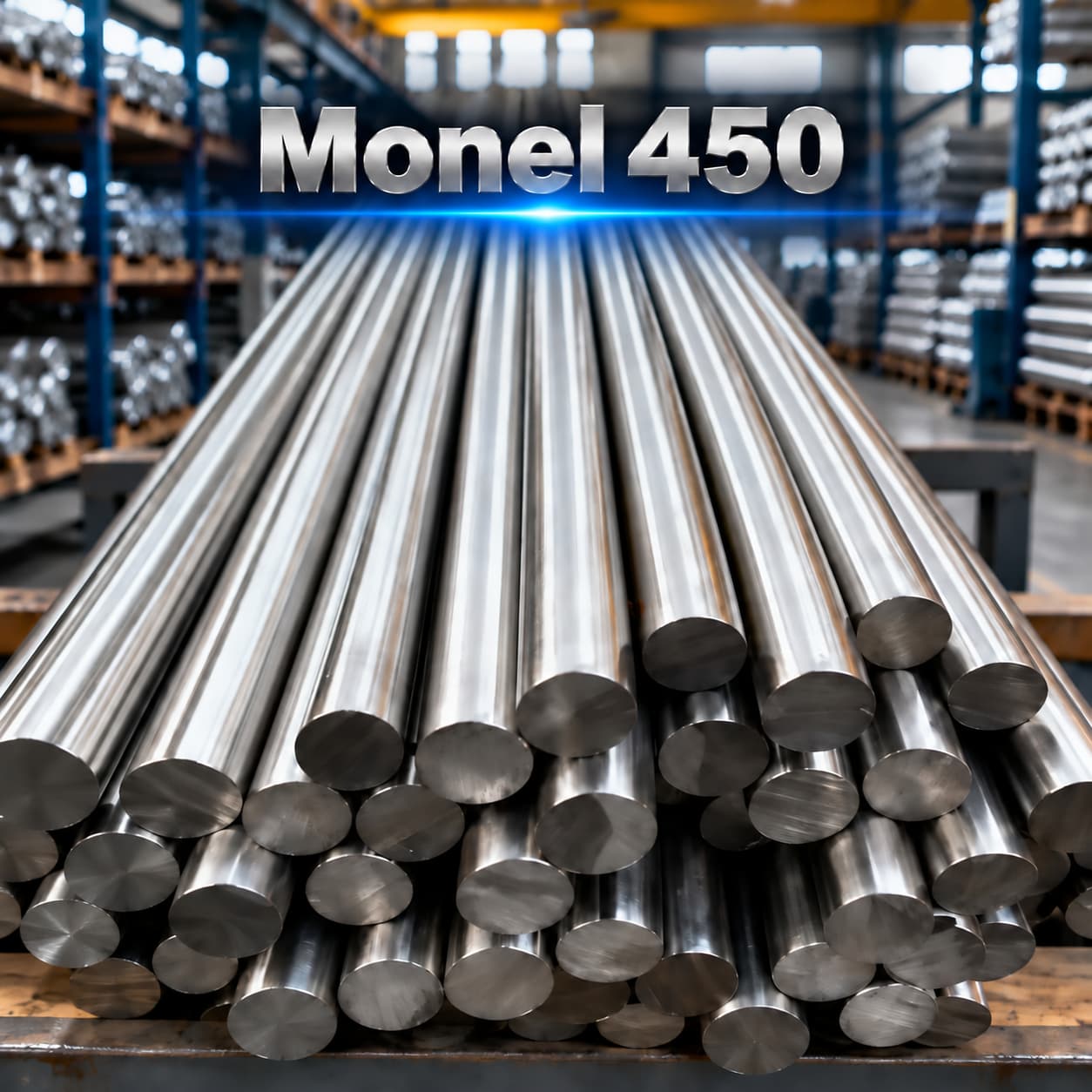

Alloy 450 / UNS C71500

Grade: Monel 450/UNS C71500/Alloy 450/Nickel Alloy 450/W.Nr.：2.0882/CuNi30Mn1Fe

Sheet/Plate: 0.3mm-150mm

Strip/Foil: 0.02mm-16mm

Pipe: 6mm*0.5mm-1200mm*100mm

Bar: Ф6mm – Ф600mm

Wire: Ф0.01mm – Ф6mm

Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.

Standard: ASTM/ASME/AMS

Monel 450 or Alloy 450, houses a 70-30 combination of copper and nickel, respectively. This variant of the Monel alloy family comes with superior weldability. The alloy possesses fair resistance to bio-fouling or corrosion in the seawater.

With this alloy, you also get access to high fatigue strength along with optimum thermal conductivity. The Monel 450 is used excessively for the creation of condenser plates, seawater condensers, evaporator tubes, distiller tubes, saltwater piping, as well as tubes for heat exchange.

Chemical Composition (wt.%):

Nickel (%)	Copper (%)	Iron (%)	Manganese (%)	Sulfur (%)	Zinc (%)	Lead (%)	Phosphorous (%)
29.0 to 33.0	Balance	0.4 to 1.0	1.0 Max	0.020 Max	1.0 Max	0.05 Max	0.020 Max

Mechanical Properties:

Yield Strength (Minimum)		Tensile Strength (Minimum)		Elongation (Minimum)
KSI	MPA	KSI	MPA	Percentage
24	165	56	385	46

Applications

▪ Seawater Condensers
▪ Distiller Tubes
▪ Condenser Plates
▪ Evaporator Tubes
▪ Heat Exchanger
▪ Piping for Salt Water

Introduction

Specification

Chemical Composition (wt.%):

Nickel (%)	Copper (%)	Iron (%)	Manganese (%)	Sulfur (%)	Zinc (%)	Lead (%)	Phosphorous (%)
29.0 to 33.0	Balance	0.4 to 1.0	1.0 Max	0.020 Max	1.0 Max	0.05 Max	0.020 Max
