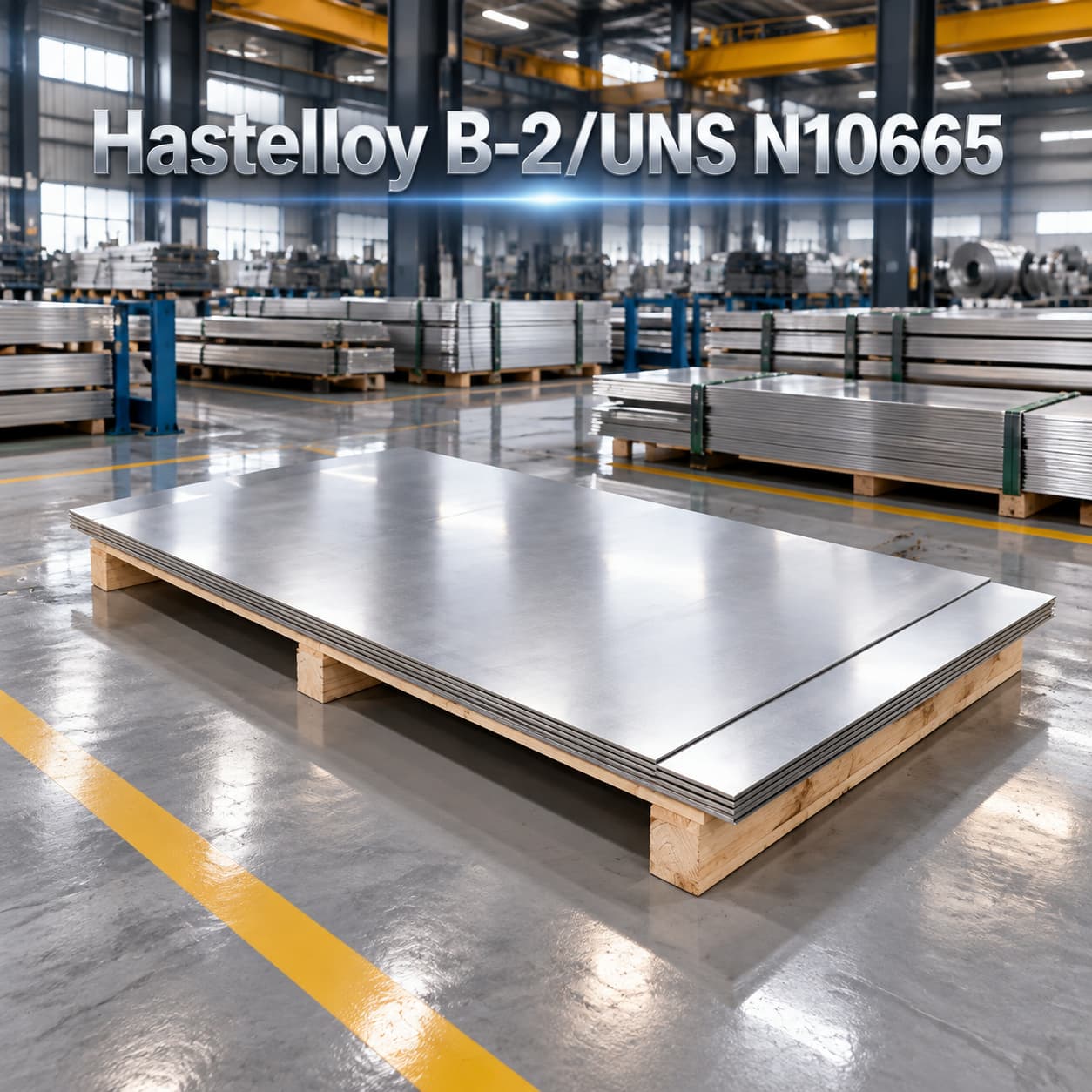

Alloy B-2/UNS N10665

Grade: Hastelloy B-2/UNS N10665/Alloy B2

Sheet/Plate: 0.3mm-150mm

Strip/Foil: 0.02mm-16mm

Pipe: 6mm*0.5mm-1200mm*100mm

Bar: Ф6mm – Ф600mm

Wire: Ф0.01mm – Ф6mm

Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.

Standard: ASTM/ASME/AMS

Hastelloy B2 is a solid solution strengthened, nickel-molybdenum alloy, with significant resistance to reducing environments like hydrogen chloride gas, and sulfuric, acetic and phosphoric acids. Molybdenum is the primary alloying element which provides significant corrosion resistance to reducing environments. This nickel steel alloy can be used in the as-welded condition because it resists the formation of grain-boundary carbide precipitates in the weld heat-affected zone.

This nickel alloy provides excellent resistance to hydrochloric acid at all concentrations and temperatures. In additions, Hastelloy B2 has excellent resistance to pitting, stress corrosion cracking and to knife-line and heat-affected zone attack. Alloy B2 provides resistance to pure sulfuric acid and a number of non-oxidizing acids.

Chemical Composition

Element Content (%)
Nickel, Ni 69
Molybdenum, Mo 28
Iron, Fe 2
Chromium, Cr 1
Cobalt, Co 1
Manganese, Mn 1
Silicon, Si 0.10
Carbon, C 0.01

ASTM Specifications

Pipe Smls Pipe Welded Tube Smls Tube Welded Sheet / Plate Bar Forging Fitting
B622 B619 B622 B626 B333 B335 B564 B366

Mechanical Properties

Properties Metric Imperial
Tensile strength 914 MPa 133000 psi
Yield strength (@strain 0.200%) 396 MPa 57400 psi
Elastic modulus 217 GPa 31500 ksi
Elongation at break (in 50.8 mm) 55% 55%
Hardness, Brinell (converted from Rockwell B hardness) 168 168
Hardness, Knoop (converted from Rockwell B hardness) 186 186
Hardness, Rockwell B 98 98
Hardness, Vickers (converted from Rockwell B hardness) 241 241

Applications

▪ Chemical processes
▪ Vacuum furnaces
▪ Mechanical components in reducing environments

Hastelloy B2 is a solid solution strengthened, nickel-molybdenum alloy, with significant resistance to reducing environments like hydrogen chloride gas, and sulfuric, acetic and phosphoric acids. Molybdenum is the primary alloying element which provides significant corrosion resistance to reducing environments. This nickel steel alloy can be used in the as-welded condition because it resists the formation of grain-boundary carbide precipitates in the weld heat-affected zone.

This nickel alloy provides excellent resistance to hydrochloric acid at all concentrations and temperatures. In additions, Hastelloy B2 has excellent resistance to pitting, stress corrosion cracking and to knife-line and heat-affected zone attack. Alloy B2 provides resistance to pure sulfuric acid and a number of non-oxidizing acids.

Chemical Composition

Element Content (%)
Nickel, Ni 69
Molybdenum, Mo 28
Iron, Fe 2
Chromium, Cr 1
Cobalt, Co 1
Manganese, Mn 1
Silicon, Si 0.10
Carbon, C 0.01

ASTM Specifications

Pipe Smls Pipe Welded Tube Smls Tube Welded Sheet / Plate Bar Forging Fitting
B622 B619 B622 B626 B333 B335 B564 B366

Mechanical Properties

Properties Metric Imperial
Tensile strength 914 MPa 133000 psi
Yield strength (@strain 0.200%) 396 MPa 57400 psi
Elastic modulus 217 GPa 31500 ksi
Elongation at break (in 50.8 mm) 55% 55%
Hardness, Brinell (converted from Rockwell B hardness) 168 168
Hardness, Knoop (converted from Rockwell B hardness) 186 186
Hardness, Rockwell B 98 98
Hardness, Vickers (converted from Rockwell B hardness) 241 241

Applications

▪ Chemical processes
▪ Vacuum furnaces
▪ Mechanical components in reducing environments
