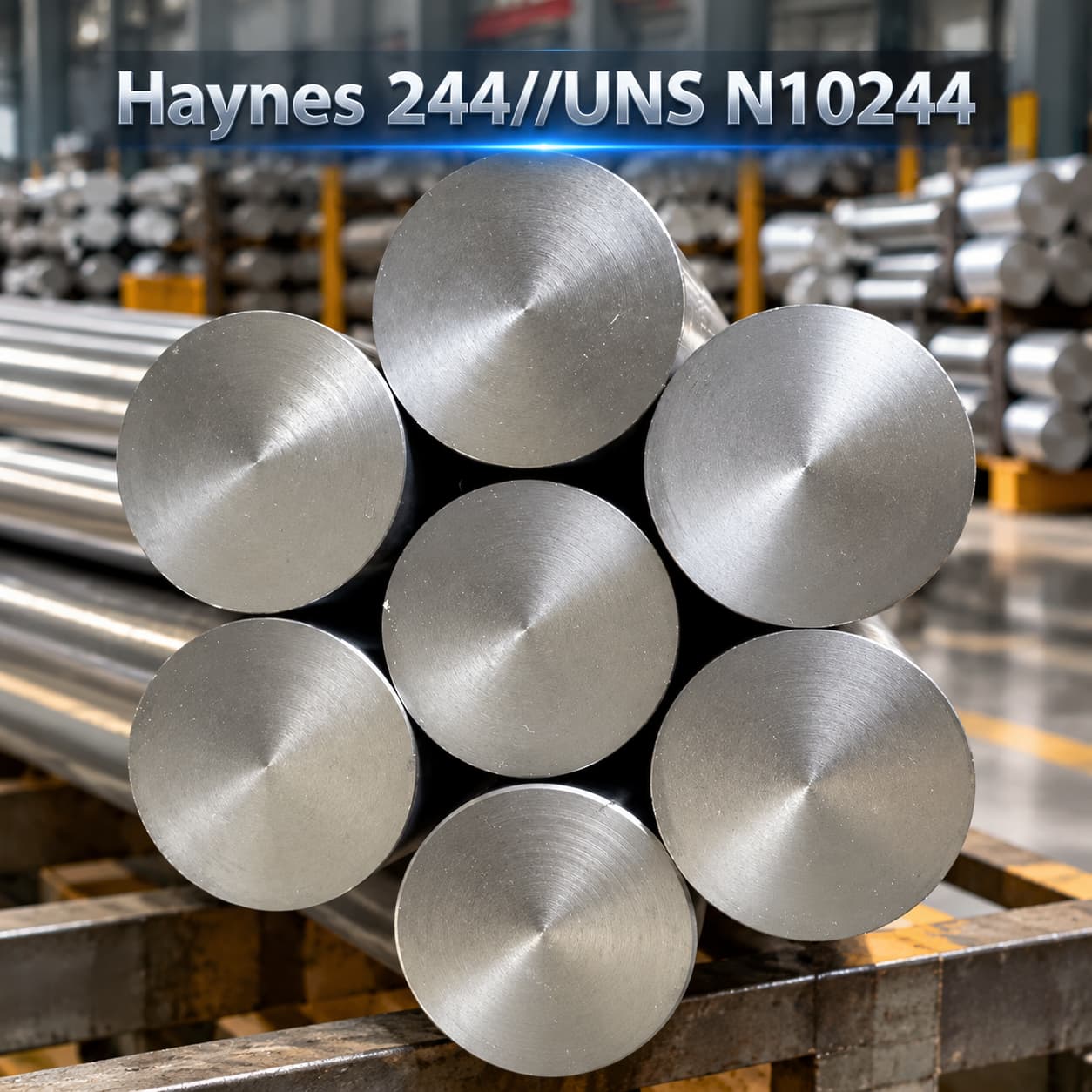

Alloy 244/UNS N10244

Grade: Haynes 244/UNS N10244

Sheet/Plate: 0.3mm-150mm

Strip/Foil: 0.02mm-16mm

Pipe: 6mm*0.5mm-1200mm*100mm

Bar: Ф6mm – Ф600mm

Wire: Ф0.01mm – Ф6mm

Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.

Standard: ASTM/ASME/AMS

HAYNES 244 is a nickel molybdenum chromium tungsten alloy developed for static components in advanced gas turbines. Aging forms ordered domains that provide strength while retaining low thermal expansion. Tungsten improves domain stability, extending the useful temperature range relative to HAYNES 242. The alloy combines dimensional control, oxidation resistance and fatigue performance for components operating at temperatures up to approximately 760°C.

Chemical composition

Element	Weight percent	Element	Weight percent
Ni	Balance	Mo	22.5
Cr	8	W	6
Fe	2 max	Mn	0.8 max
Al	0.5 max	C	0.03 max

Mechanical properties

Plate, 12.7 mm thick, age hardened at 760°C for 16 h, furnace cooled to 649°C for 32 h, then air cooled. RT tensile results before and after thermal exposure.

Test temperature °C	0.2% yield MPa	Tensile MPa	Elongation %
RT, as treated	847	1333	34.7
RT, after 649°C / 1000 h	847	1411	25.5
RT, after 760°C / 1000 h	674	1096	13.1

Source: Haynes International 244 alloy data. Typical values; not purchase acceptance limits.

Application areas

Static structures in advanced gas turbine engines
Turbine components requiring low thermal expansion up to 760°C
Dimensional control parts requiring high strength and thermal stability
