Chemical Composition (%) Element Content Ni ≈36 Cr ≈24 Fe Balance Mo ≈2.5 Cu ≈1.5 Mn ≤2 C ≤0.05 Common Standards Product Form Standard Plate ASTM B463 Bar ASTM B473 Pipe ASTM B729 Tube ASTM B468

Mechanical Properties (Typical) Property Value Tensile Strength ≈550 MPa Yield Strength ≈240 MPa Elongation ≥35%

Application areas Chemical processing Acid handling equipment Petrochemical plants Industrial piping

Chemical Composition (%) Element Content Ni ≈36 Cr ≈24 Fe Balance Mo ≈2.5 Cu ≈1.5 Mn ≤2 C ≤0.05 Common Standards Product Form Standard Plate ASTM B463 Bar ASTM B473 Pipe ASTM B729 Tube ASTM B468

Mechanical Properties (Typical) Property Value Tensile Strength ≈550 MPa Yield Strength ≈240 MPa Elongation ≥35%

Application areas Chemical processing Acid handling equipment Petrochemical plants Industrial piping

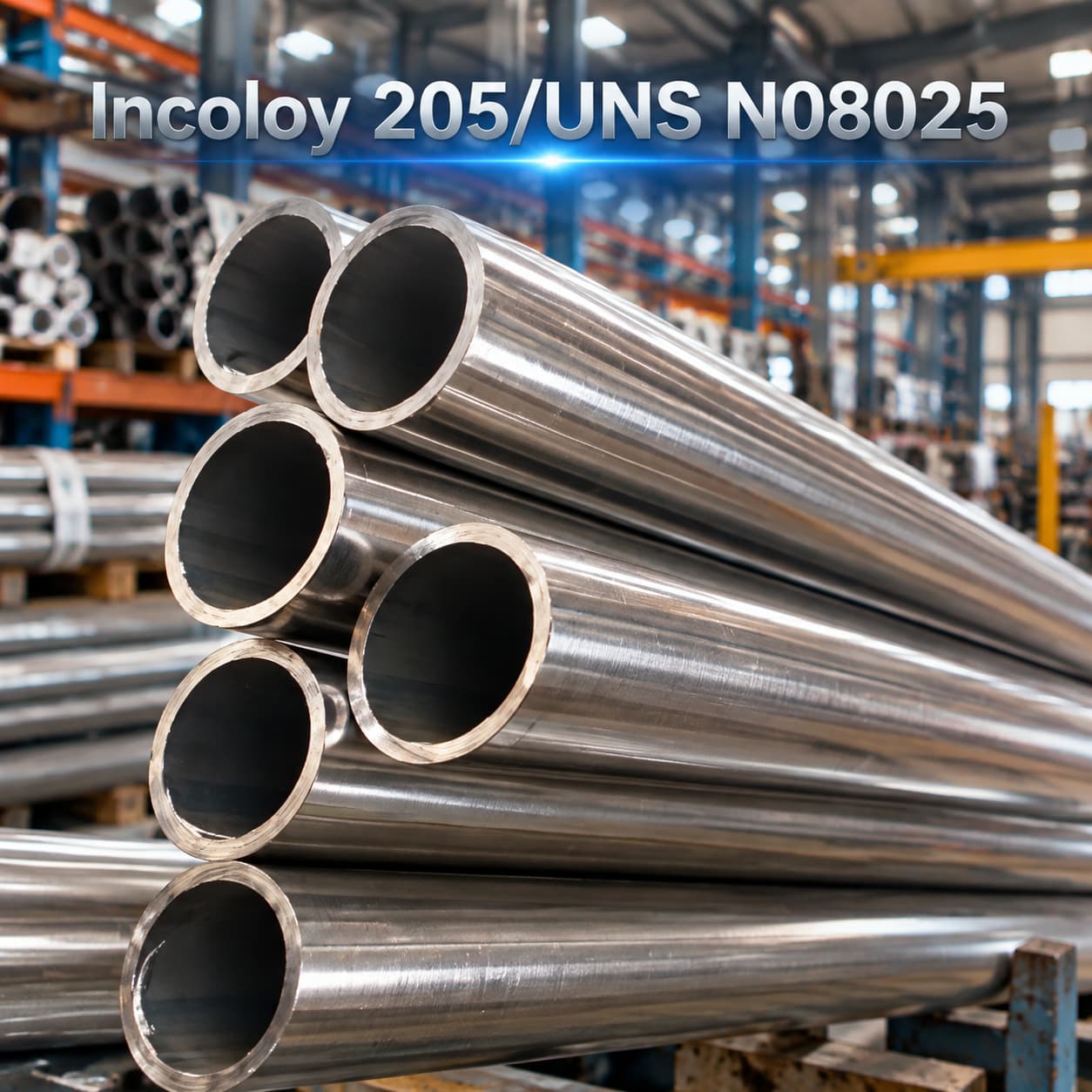

Alloy 205 / UNS N08025

Grade: Incoloy 205 / UNS N08025

Sheet/Plate: 0.3mm-150mm

Strip/Foil: 0.02mm-16mm

Pipe: 6mm*0.5mm-1200mm*100mm

Bar: Ф6mm – Ф600mm

Wire: Ф0.01mm – Ф6mm

Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.

Standard: ASTM/ASME/AMS

Alloy 205 is a nickel-iron-chromium alloy designed for high corrosion resistance in aggressive chemical environments. With balanced nickel and chromium additions, it provides good resistance to acids, chlorides and industrial processing conditions while maintaining good mechanical strength and fabrication performance.
