Chemical Composition (%) Element Content Ni 30-34 Cr 26-28 Fe Balance Mo 3-4 Cu 1-1.4 Mn ≤2.5 C ≤0.03 Common Standards Product Form Standard Plate ASTM B463 Bar ASTM B473 Pipe/Tube ASTM B729 Welded Pipe ASTM B464 Fittings ASTM B366

Mechanical Properties (Typical) Property Value Tensile Strength ≥550 MPa Yield Strength ≥240 MPa Elongation ≥40% Hardness Typical ≤90 HRB

Application areas Chemical reactors Acid production equipment Offshore systems Heat exchangers Pollution control equipment

Chemical Composition (%) Element Content Ni 30-34 Cr 26-28 Fe Balance Mo 3-4 Cu 1-1.4 Mn ≤2.5 C ≤0.03 Common Standards Product Form Standard Plate ASTM B463 Bar ASTM B473 Pipe/Tube ASTM B729 Welded Pipe ASTM B464 Fittings ASTM B366

Mechanical Properties (Typical) Property Value Tensile Strength ≥550 MPa Yield Strength ≥240 MPa Elongation ≥40% Hardness Typical ≤90 HRB

Application areas Chemical reactors Acid production equipment Offshore systems Heat exchangers Pollution control equipment

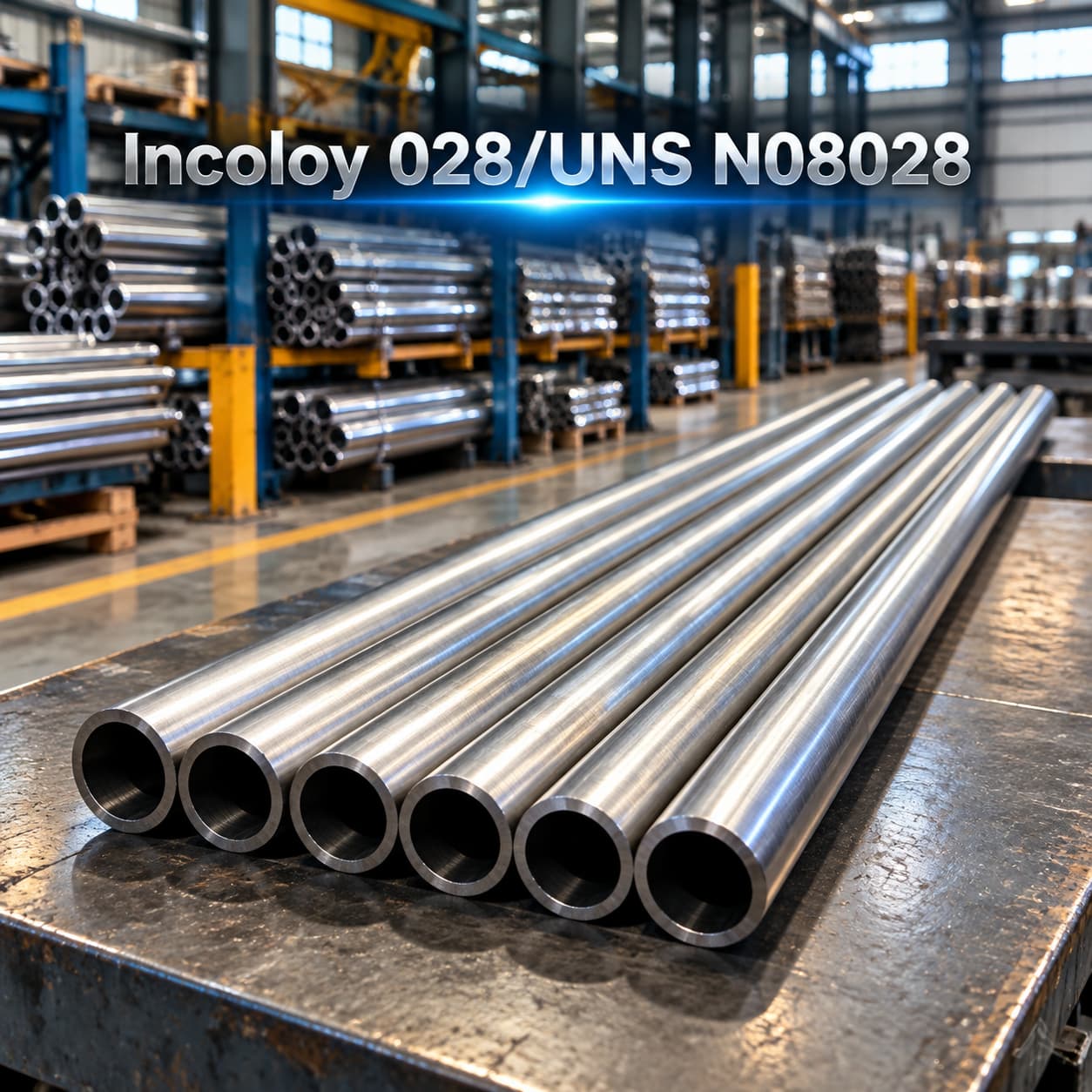

Alloy 28 / UNS N08028

Grade: Incoloy 028 / Alloy 28 / UNS N08028

Sheet/Plate: 0.3mm-150mm

Strip/Foil: 0.02mm-16mm

Pipe: 6mm*0.5mm-1200mm*100mm

Bar: Ф6mm – Ф600mm

Wire: Ф0.01mm – Ф6mm

Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.

Standard: ASTM/ASME/AMS

Alloy 28 is a high corrosion resistant nickel-iron-chromium alloy containing molybdenum and copper. It offers outstanding resistance to sulfuric acid, phosphoric acid, chloride corrosion and stress corrosion cracking. It is widely used where conventional stainless steels cannot provide sufficient corrosion protection.
