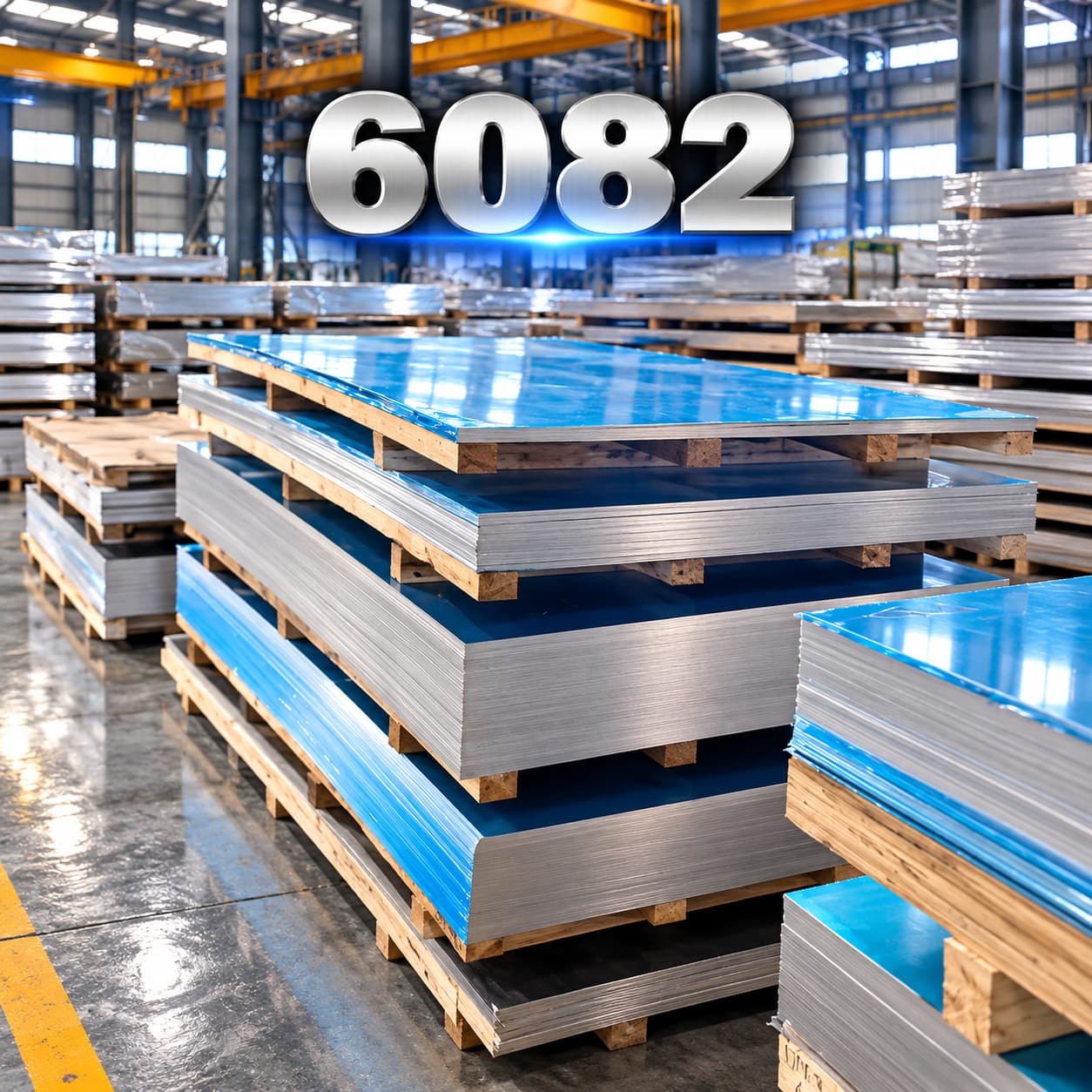

6082 Aluminum Plate/Sheet

Grade: 6082

Coil: 0.3mm-3.0mm

Sheet: 0.3mm-300mm

Width: 50mm-2000mm

Standard: ASTM, AMS, BS etc.

6082 is a heat-treatable aluminum magnesium silicon manganese alloy commonly selected for structural and machined plate in European engineering markets. Manganese helps control the grain structure, while solution treatment and artificial aging develop useful strength. T6 and stretch stress relieved T651 are common plate conditions. The alloy offers good corrosion resistance, machinability and weldability, although welding reduces local strength. Typical uses include transport structures, machinery components and load carrying assemblies where weight reduction is important.

Chemical composition

Element	Limit in wt percent
Silicon Si	0.70–1.30
Iron Fe	≤0.50
Copper Cu	≤0.10
Manganese Mn	0.40–1.00
Magnesium Mg	0.60–1.20
Chromium Cr	≤0.25
Zinc Zn	≤0.20
Titanium Ti	≤0.10
Other elements each	≤0.05
Other elements total	≤0.15
Aluminum Al	Balance

Mechanical properties by temper

Temper	Condition or thickness	Rm MPa	Rp0.2 MPa	Elongation %	Basis
O	Annealed	N/V	N/V	N/V	Plate values not verified
T4	Natural aging	N/V	N/V	N/V	Plate values not verified
T6 / T651	6–12.5 mm plate	≥300	≥255	≥9	Published plate minima [6]
T6 / T651	>12.5–100 mm plate	≥295	≥240	N/V	Published plate minima [6]
T6 / T651	>100–150 mm plate	≥275	≥240	≥6	Published plate minima [6]

Application fields

Machined machinery plates, brackets and load carrying components.
Transport equipment, commercial vehicle structures and handling systems.
Structural assemblies associated with bridges, cranes and trusses.
Industrial tooling, mounting plates and general engineering fabrications.
