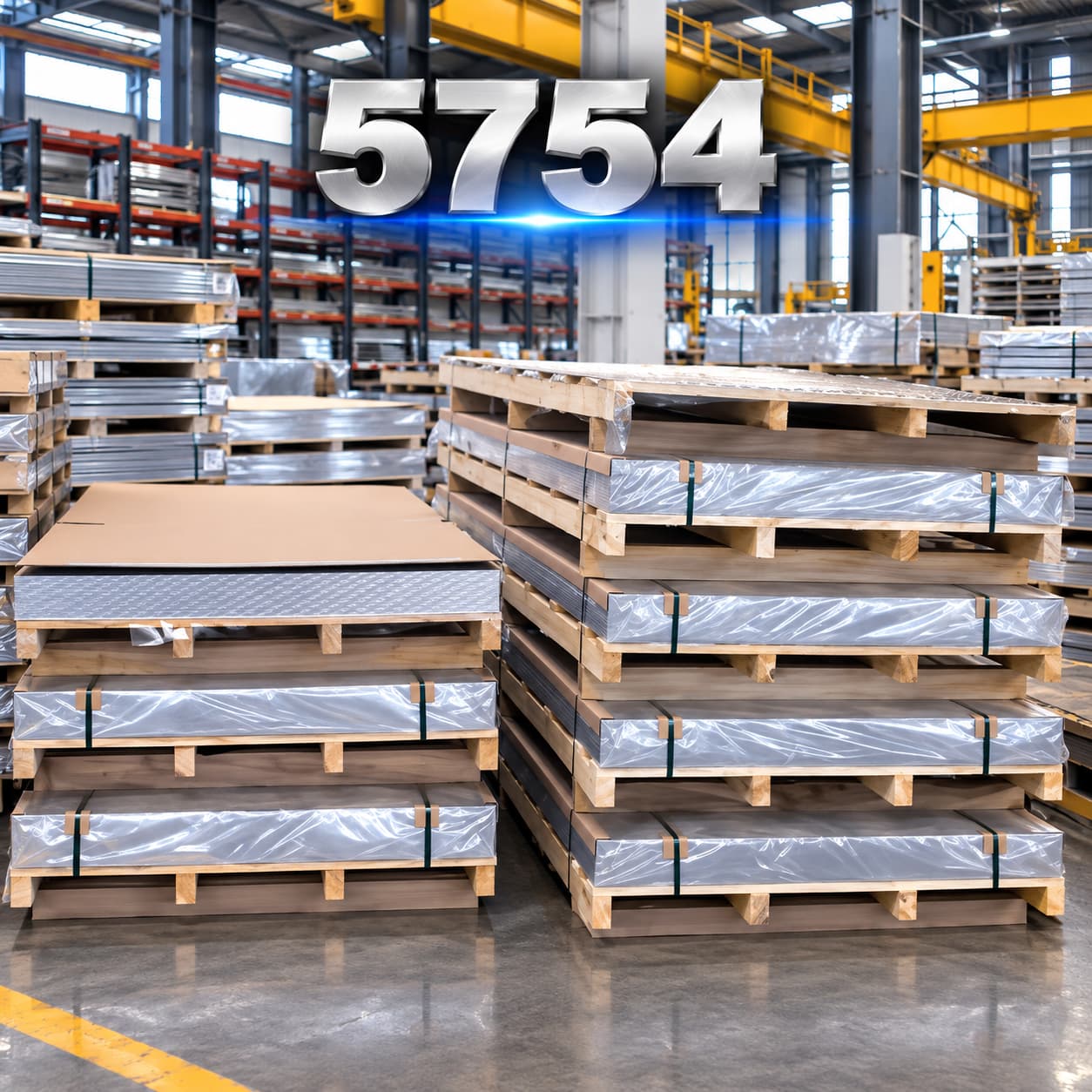

5754 Aluminum Sheet and Plate

Grade: 5754

Coil: 0.3mm-3.0mm

Sheet: 0.3mm-300mm

Width: 50mm-2000mm

Standard: ASTM, AMS, BS etc.

5754 is a non heat treatable aluminum magnesium alloy offering medium strength, good forming behavior and strong corrosion resistance in marine and industrial environments. Annealed sheet is used for drawn and formed parts, while strain hardened tempers increase yield strength. The alloy is weldable and widely used for vehicle bodies, automotive panels and general fabrication. For procurement, temper and thickness are essential because ductility changes with cold work. Chemistry also includes a combined manganese and chromium requirement that should be checked on the certificate.

Chemical composition

Element	Limit wt %	Element	Limit wt %
Si	0.40 max	Fe	0.40 max
Cu	0.10 max	Mn	0.50 max
Mg	2.60–3.60	Cr	0.30 max
Zn	0.20 max	Ti	0.15 max
Other each	0.05 max	Other total	0.15 max
Al	Balance	Mn + Cr	0.10–0.60

Mechanical properties by temper

Temper	Thickness mm	Rm MPa	Rp0.2 MPa	Elongation %
O	1.5–3.0	190–240	80 min	16 min
H22 / H32	1.5–3.0	220–270	130 min	10 min
H24 / H34	1.5–3.0	240–280	160 min	7 min
H28 / H38	1.5–3.0	290 min	230 min	4 min

Application areas

Automotive body panels and interior parts
Vehicle bodies and fabricated transportation components
Marine fabrication and fishing industry equipment
Food processing equipment and compatible chemical structures
Flooring tread plate cladding and signage
