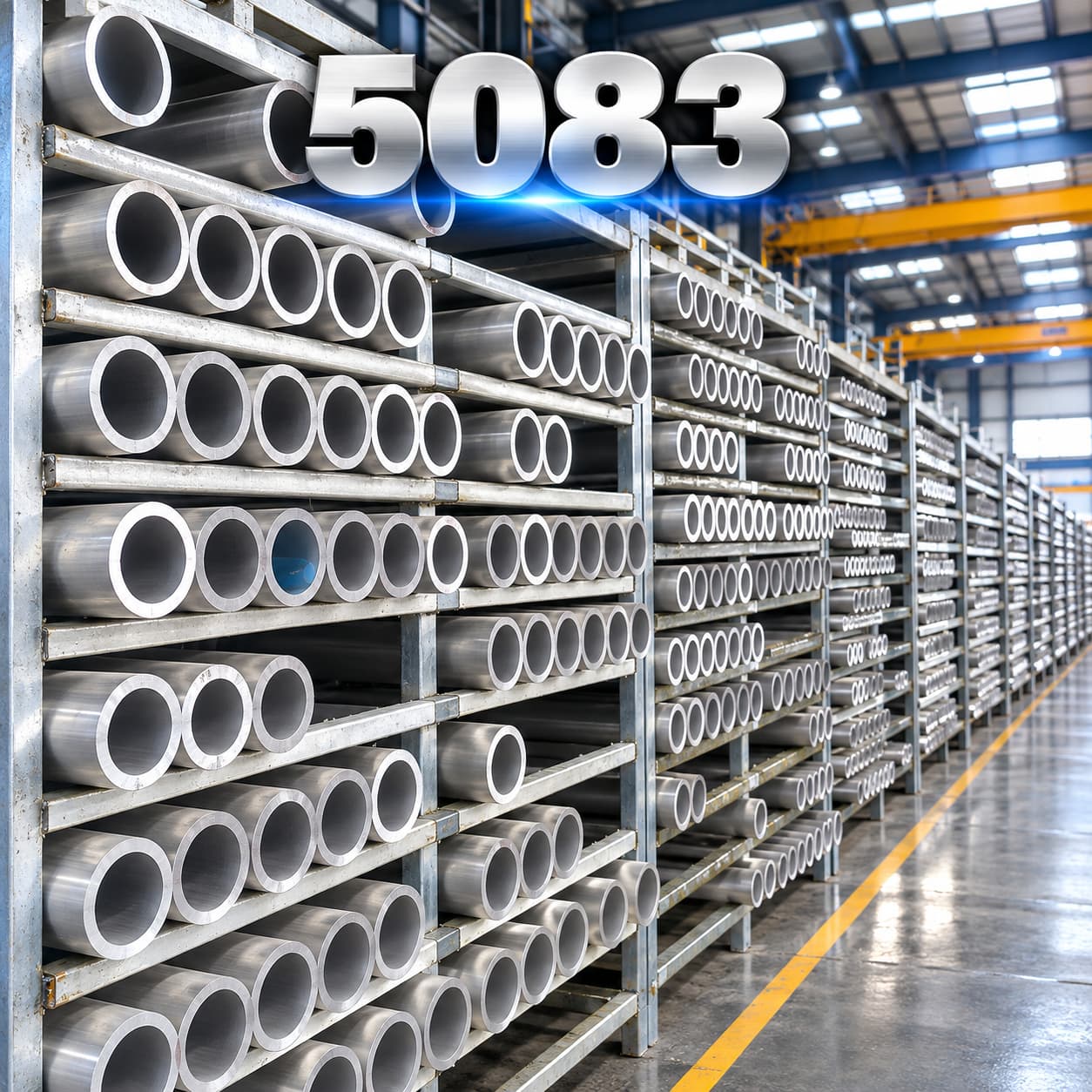

5083 Aluminum Tube/Pipe

Grade: 5083

Size:

Extruded: 6mm*1mm-400mm*40mm

Seamless: 70mm*10mm-270mm*60mm

Forged: 120mm*20mm-1200mm*200mm

Standard: ASTM, AMS, BS etc.

5083 is a non heat treatable aluminum magnesium manganese alloy with higher strength than many general purpose 5xxx grades and good resistance to seawater corrosion. Tube and hollow sections are used in marine, transport and industrial structures, including welded assemblies. O, H111 and H112 conditions balance fabrication needs and strength. Prolonged elevated temperature exposure can promote sensitization and intergranular corrosion; service limits must be assessed. Marine sheet tempers must not be assumed to apply automatically to tube.

Chemical composition

Element	Mass percent	Element	Mass percent
Si	0.40	Fe	0.40
Cu	0.10	Mn	0.40–1.0
Mg	4.0–4.9	Cr	0.05–0.25
Zn	0.25	Ti	0.15
Additional	—	Others each / total	0.05 / 0.15
Al	Remainder

Mechanical properties by temper

Temper	Wall mm	UTS MPa	Yield MPa	Elongation %
O	All	269–352	≥110	≥14
H111	All	≥276	≥165	≥12
H112	All	≥269	≥110	≥12

Application areas

Marine piping and hollow structural members
Transport and offshore welded structures
Cryogenic equipment components under qualified design
