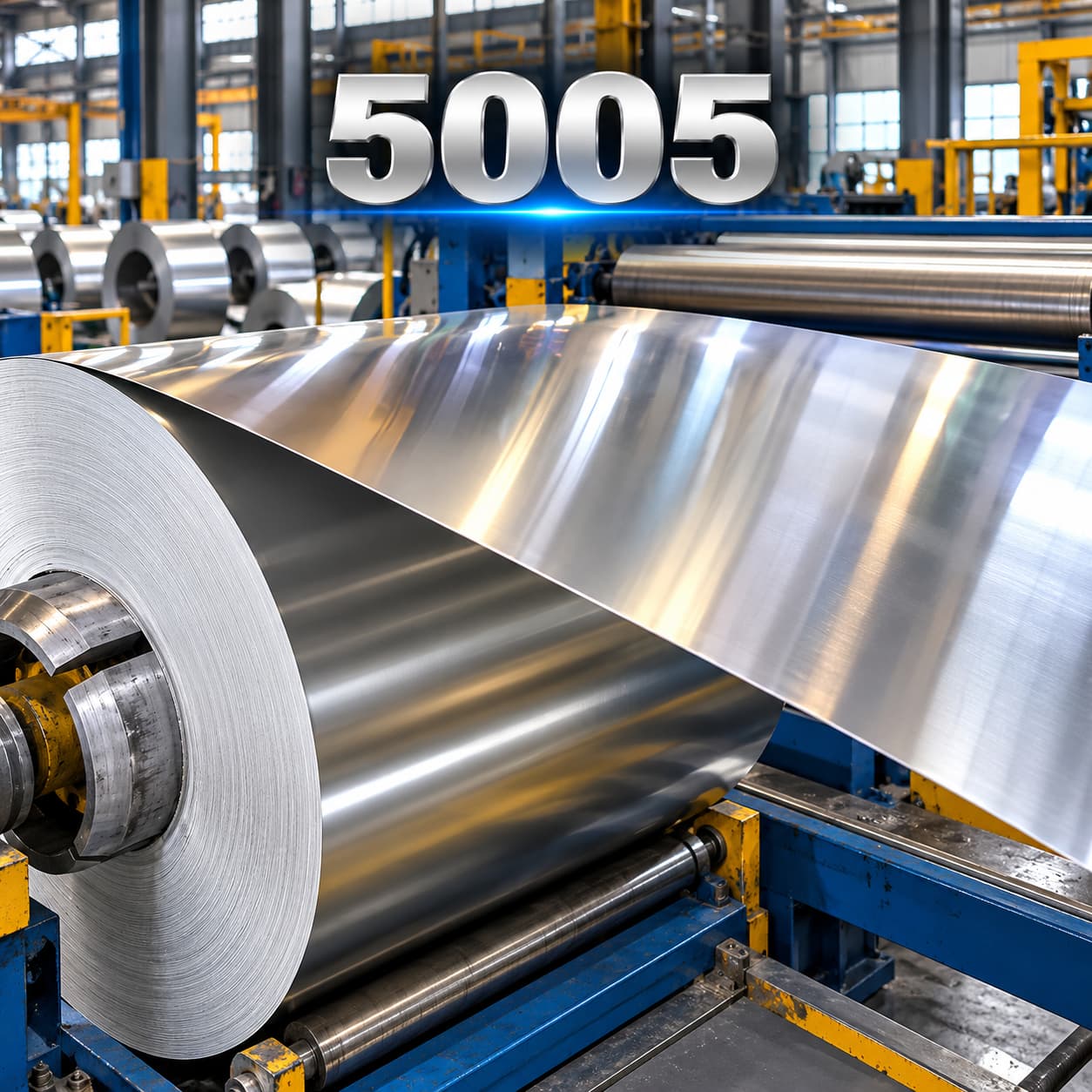

5005 Aluminum Sheet and Plate

Grade: 5005

Coil: 0.3mm-3.0mm

Sheet: 0.3mm-300mm

Width: 50mm-2000mm

Standard: ASTM, AMS, BS etc.

5005 is a low magnesium wrought aluminum alloy selected for good formability, atmospheric corrosion resistance and decorative anodizing. It is non heat treatable and gains strength through cold working. Soft tempers suit bending and drawing, while harder tempers improve resistance to permanent deformation through increased yield strength. Sheet is commonly used for architectural cladding, signs and appliance panels. Anodizing quality and color consistency should be specified separately because alloy designation alone does not guarantee a uniform decorative finish.

Chemical composition

Element	Limit wt %	Element	Limit wt %
Si	0.30 max	Fe	0.70 max
Cu	0.20 max	Mn	0.20 max
Mg	0.50–1.10	Cr	0.10 max
Zn	0.25 max	Ti	—
Other each	0.05 max	Other total	0.15 max
Al	Balance

Mechanical properties by temper

Temper	Thickness mm	Rm MPa	Rp0.2 MPa	Elongation %
O	1.5–3.0	100–145	35 min	20 min
H22 / H32	1.5–3.0	125–165	80 min	6 min
H24 / H34	1.5–3.0	145–185	110 min	5 min
H28 / H38	1.5–3.0	185 min	160 min	3 min

Application areas

Architectural cladding roofing and decorative panels
Anodized signs nameplates and trim
Appliance and refrigerator panels
Furniture and interior sheet components
General fabricated sheet and HVAC equipment
