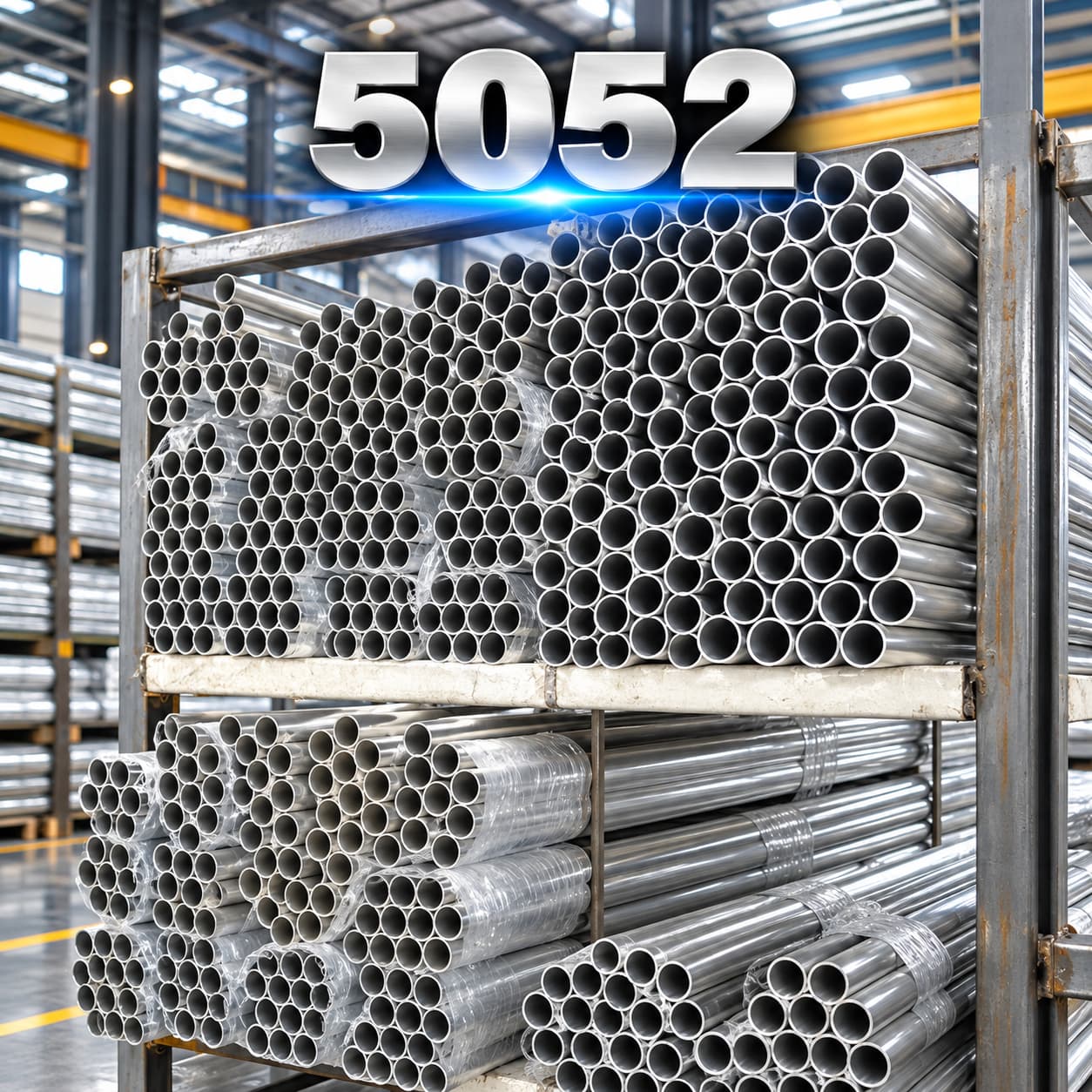

5052 Aluminum Tube/Pipe

Grade: 5052

Size:

Extruded: 6mm*1mm-400mm*40mm

Seamless: 70mm*10mm-270mm*60mm

Forged: 120mm*20mm-1200mm*200mm

Standard: ASTM, AMS, BS etc.

5052 is a non heat treatable aluminum magnesium chromium alloy that combines moderate strength with good weldability and corrosion resistance, including resistance in many marine environments. Annealed seamless tube is suitable for bending and flaring; strain hardened conditions provide higher strength but require tighter control of forming operations. The alloy is used for fluid lines, equipment tubing and welded fabrications. Final suitability depends on pressure, temperature, fluid chemistry and the governing fabrication code.

Chemical composition

Element	Mass percent	Element	Mass percent
Si	0.25	Fe	0.40
Cu	0.10	Mn	0.10
Mg	2.2–2.8	Cr	0.15–0.35
Zn	0.10	Ti	—
Additional	—	Others each / total	0.05 / 0.15
Al	Remainder

Mechanical properties by temper

Temper	Wall mm	UTS MPa	Yield MPa	Elongation %
O	0.46–6.35	172–241	69	Not given
H32	0.46–6.35	214	159	Not given
H34	0.46–6.35	234	179	Not given
H36	0.46–6.35	255	200	Not given

Application areas

Aircraft fuel and qualified hydraulic lines
Marine and industrial equipment tubing
Formed and welded fluid handling assemblies
