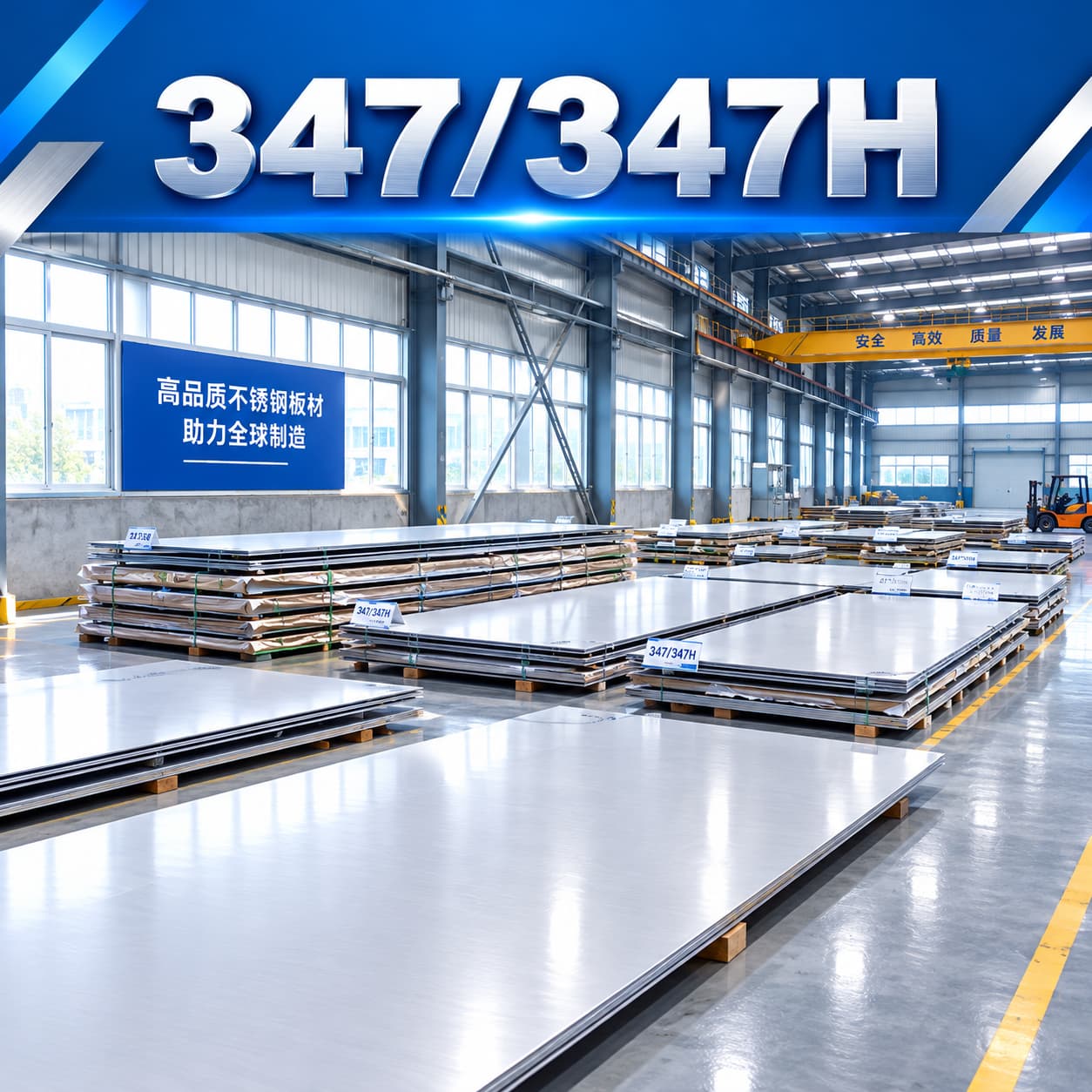

347/347H Stainless Steel Plate
Grade: 347/347H
Thickness: 3.0mm-200mm
Width: 1.5m/2.0m/2.2m or as client’s requirement.
Standard: ASTM A240/A240M, JIS G4304, JISG 4305, EN 10088/3
Finish: No.1, Polished
- Fast Shipping / Ready Stock
- ISO 9001 Direct Factory
- Custom Cutting & Processing
- 100% MTC & SGS Inspection Supported
347 and 347H are niobium-stabilized austenitic stainless steels designed for high-temperature service. Niobium prevents chromium carbide precipitation during welding and elevated-temperature exposure. 347H contains higher carbon content, providing improved creep resistance and high-temperature strength for long-term service.
Chemical Composition (Typical wt.%)
| Element | 347 | 347H |
| Carbon (C) | ≤0.08 | 0.04-0.10 |
| Chromium (Cr) | 17.00-20.00 | 17.00-20.00 |
| Nickel (Ni) | 9.00-13.00 | 9.00-13.00 |
| Niobium (Nb) | 10×C-1.00 | 10×C-1.00 |
| Molybdenum (Mo) | ≤0.75 | ≤0.75 |
| Iron (Fe) | Balance | Balance |
Mechanical Properties (Annealed Condition)
| Property | 347 | 347H |
| Tensile Strength | ≥515 MPa | ≥515 MPa |
| Yield Strength | ≥205 MPa | ≥205 MPa |
| Elongation | ≥35% | ≥35% |
| Hardness | ≤201 HB | ≤201 HB |
- High-temperature piping systems
- Furnace components
- Heat exchangers
- Boiler and superheater tubes
- Petrochemical equipment
- Aerospace components
- Thermal processing equipment
347 and 347H are niobium-stabilized austenitic stainless steels designed for high-temperature service. Niobium prevents chromium carbide precipitation during welding and elevated-temperature exposure. 347H contains higher carbon content, providing improved creep resistance and high-temperature strength for long-term service.
