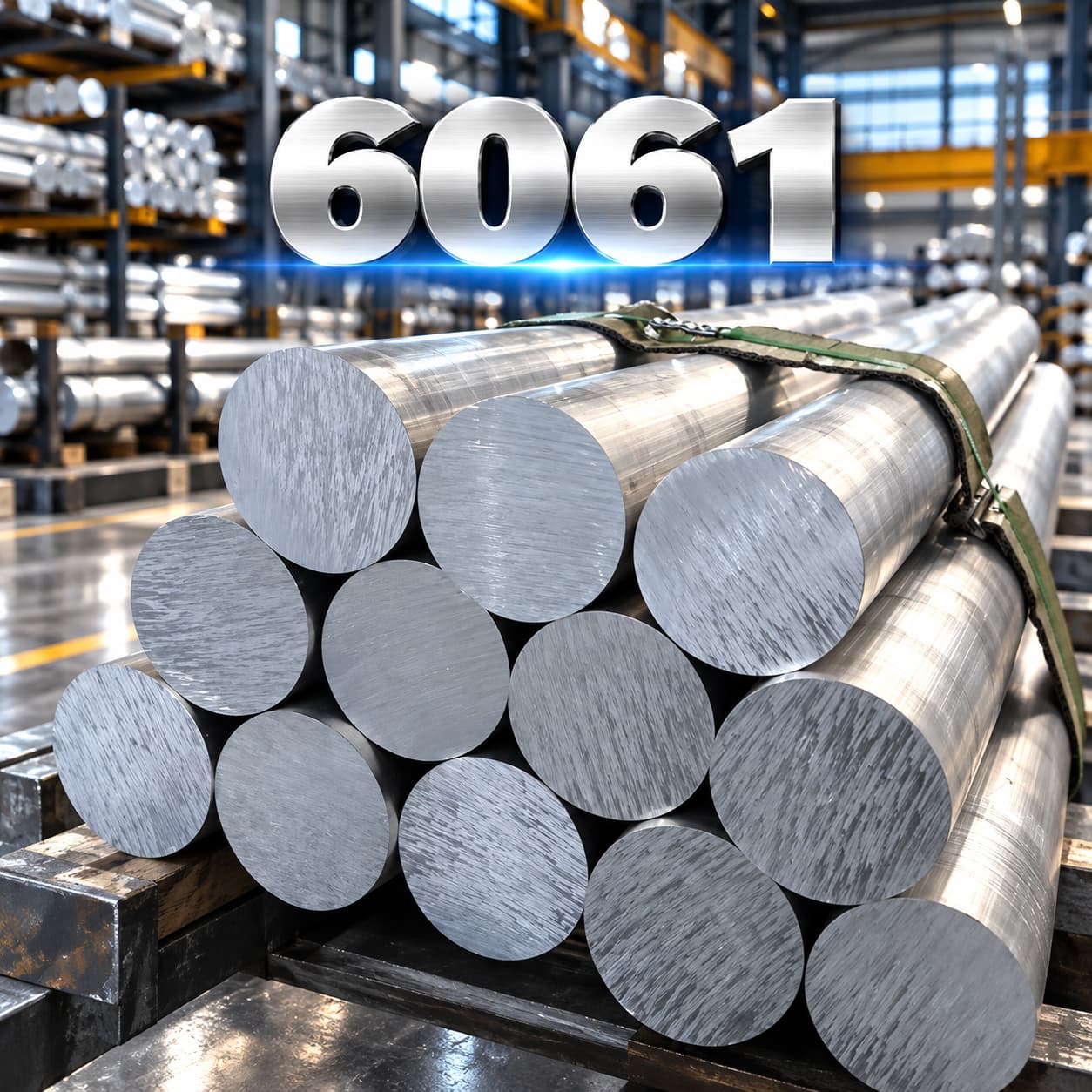

6061 Aluminum Bar and Rod

Grade: 6061

Size:

Cold drawn: 2mm-12mm

Extruded: 6mm-400mm

Standard: ASTM, AMS, BS etc.

6061 is a versatile heat treatable aluminum magnesium silicon copper alloy commonly supplied as extruded or cold finished bar and rod. It provides a practical balance of strength, corrosion resistance, machinability and weldability. T4 supports forming, while T6 and stress relieved variants are widely used for structural and machined parts. Cold finished T651 and extruded T6511 identify different product routes. Welding lowers local strength, so welded components need appropriate design values rather than the full parent metal strength.

Chemical composition

Element	Mass percent	Element	Mass percent
Si	0.40–0.8	Fe	0.7
Cu	0.15–0.40	Mn	0.15
Mg	0.8–1.2	Cr	0.04–0.35
Zn	0.25	Ti	0.15
Additional	—	Others each / total	0.05 / 0.15
Al	Remainder

Mechanical properties by temper

Temper	Size or basis	UTS MPa	Yield MPa	Elongation %
O	All listed sizes	≤152	≤110	≥16
T4 / T4511	All listed sizes	≥179	≥110	≥16
T6 / T6511	≥6.35 mm	≥262	≥241	≥10

Application areas

Machined fixtures, brackets and general engineering parts
Vehicle and machinery structural components
Corrosion resistant industrial and marine hardware
