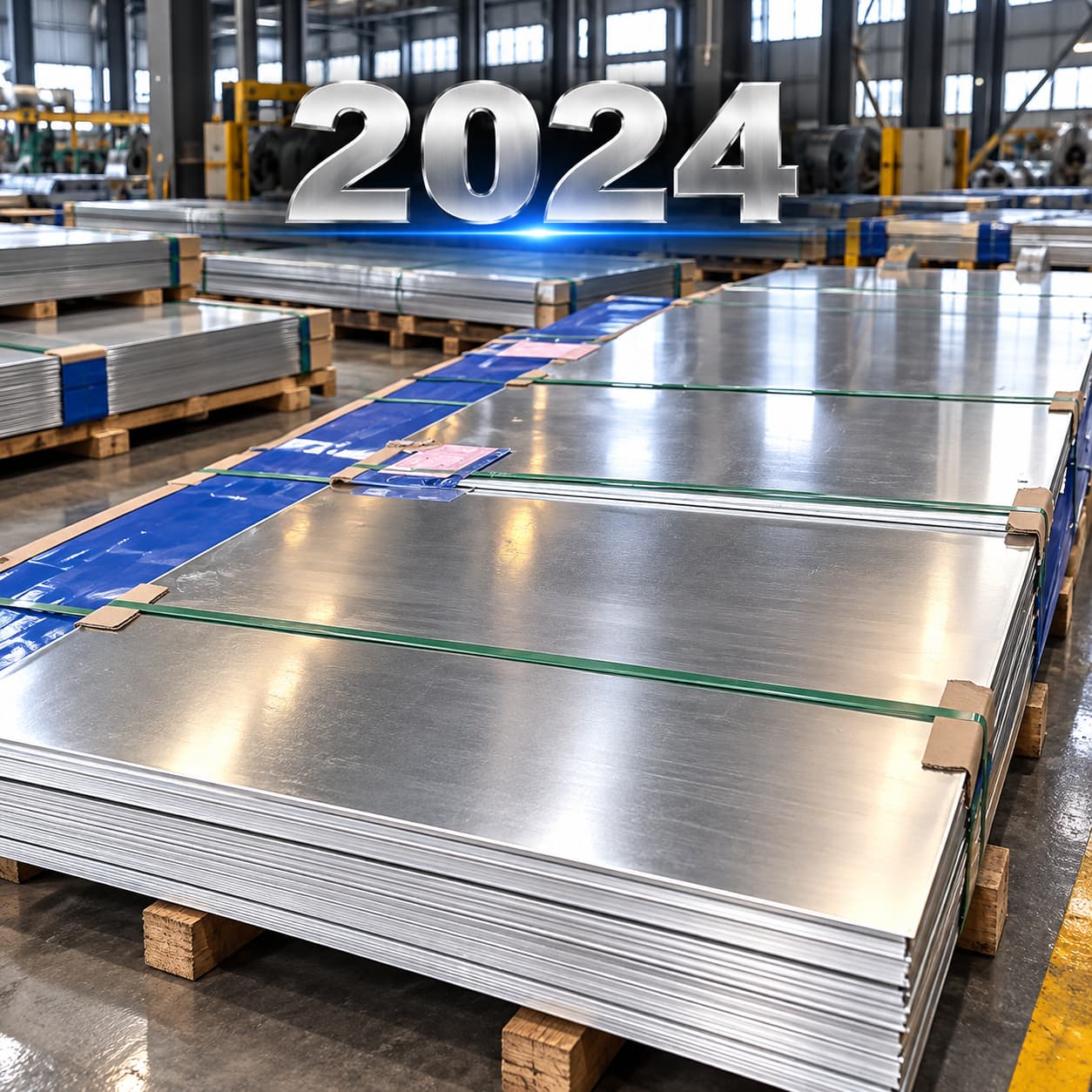

2024 Aluminum Sheet and Plate

Grade: 2024

Coil: 0.3mm-3.0mm

Sheet: 0.3mm-300mm

Width: 50mm-2000mm

Standard: ASTM, AMS, BS etc.

2024 is a heat treatable aluminum copper magnesium alloy widely used for aircraft sheet and plate. It offers high strength, useful fatigue performance and good machinability. Common products include T3 sheet and T351 plate, with stretching used to reduce residual stress in plate. Bare material has limited corrosion resistance compared with commercially pure aluminum, so protective finishes or Alclad products are often specified. Fusion welding is generally unsuitable for critical structural assemblies; mechanical fastening is common.

Chemical composition

Element	Limit wt %	Element	Limit wt %
Al	Balance	Si	0.50 max
Fe	0.50 max	Cu	3.80–4.90
Mn	0.30–0.90	Mg	1.20–1.80
Cr	0.10 max	Zn	0.25 max
Ti	0.15 max	Other each	0.05 max
Other total	0.15 max

Mechanical properties by temper

Temper	Thickness mm or basis	Rm MPa	Rp0.2 MPa	Elongation %
O	>0.24–12.50	220 max	95 max	12 min A50
T3	>0.50–6.30	435 min	290 min	15 min A50
T351	>6.30–12.50	440 min	290 min	12 min A50
T351	>12.50–25.00	435 min	290 min	7 min 5D

Application areas

Aircraft fuselage and wing sheet structures
Machined aerospace parts from stress relieved plate
Fatigue sensitive mechanically fastened structural components
High strength engineering fixtures and parts
