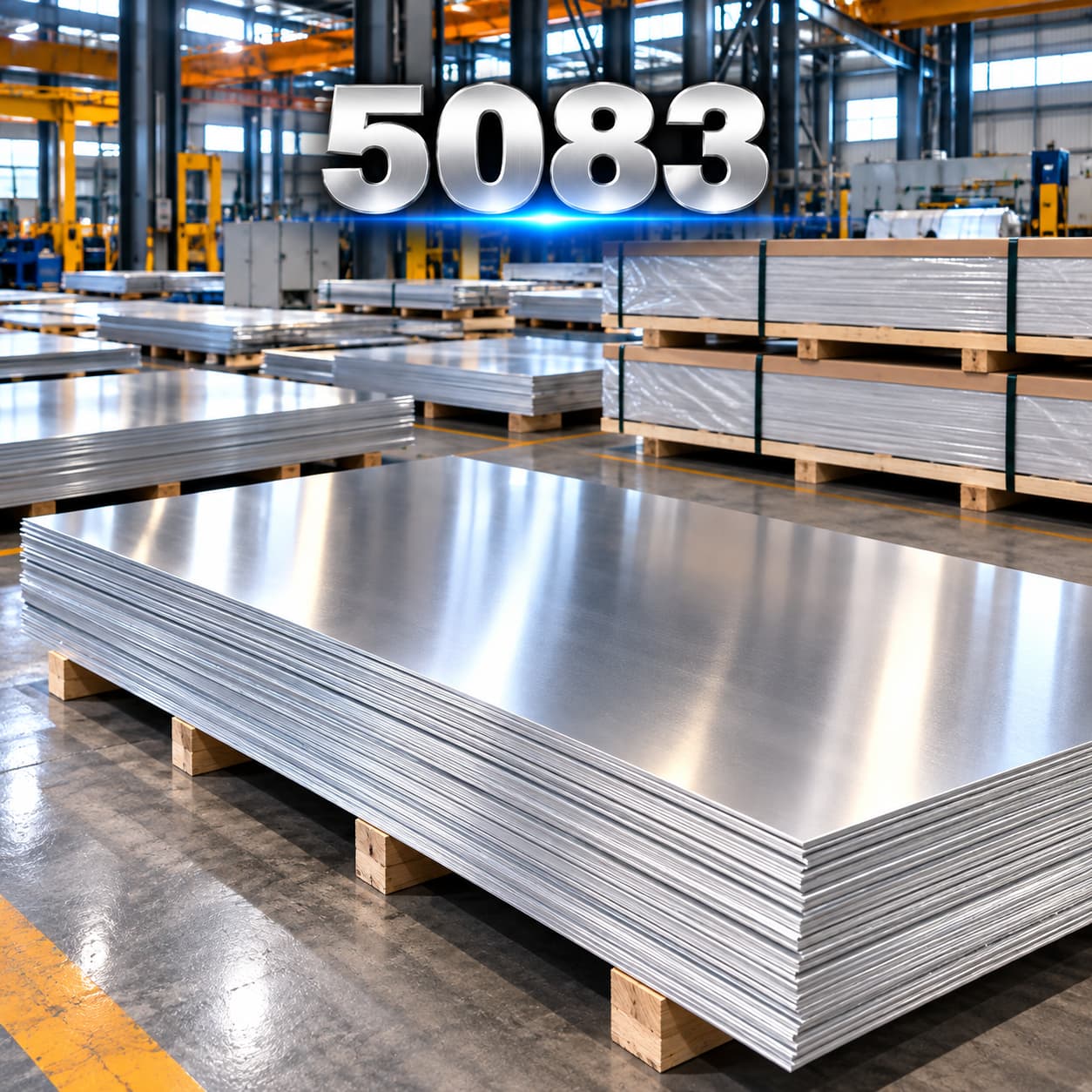

5083 Aluminum Sheet and Plate

Grade: 5083

Coil: 0.3mm-3.0mm

Sheet: 0.3mm-300mm

Width: 50mm-2000mm

Standard: ASTM, AMS, BS etc.

5083 is a high magnesium aluminum alloy with manganese and chromium additions, widely used for welded marine and transportation plate. It combines substantial strength with good weldability and seawater corrosion resistance. O and H111 favor forming, while H116 and H321 are important marine supply conditions with additional corrosion requirements under appropriate specifications. It is non heat treatable and strengthens through cold work. Material selection should account for weld zone properties, service temperature and the required resistance to intergranular and exfoliation corrosion.

Chemical composition

Element	Limit wt %	Element	Limit wt %
Si	0.40 max	Fe	0.40 max
Cu	0.10 max	Mn	0.40–1.00
Mg	4.00–4.90	Cr	0.05–0.25
Zn	0.25 max	Ti	0.15 max
Other each	0.05 max	Other total	0.15 max
Al	Balance

Mechanical properties by temper

Temper	Thickness mm	Rm MPa	Rp0.2 MPa	Elongation %
O / H111	6.0–12.5	270–345	115 min	16 min
O / H111	12.5–50	270–345	115 min	15 min
H112	6.0–12.5	275 min	125 min	12 min
H112	12.5–40	275 min	125 min	10 min
H116 / H321	6.0–12.5	305 min	215 min	12 min
H116 / H321	12.5–40	305 min	215 min	10 min
H116 / H321	40–80	285 min	200 min	10 min

Application areas

- Ship hulls marine structures and welded boat plate
- Rail cars truck bodies and transportation structures
- Cryogenic equipment and compatible low temperature vessels
- Welded pressure vessels under applicable design codes
- General welded structural plate components
