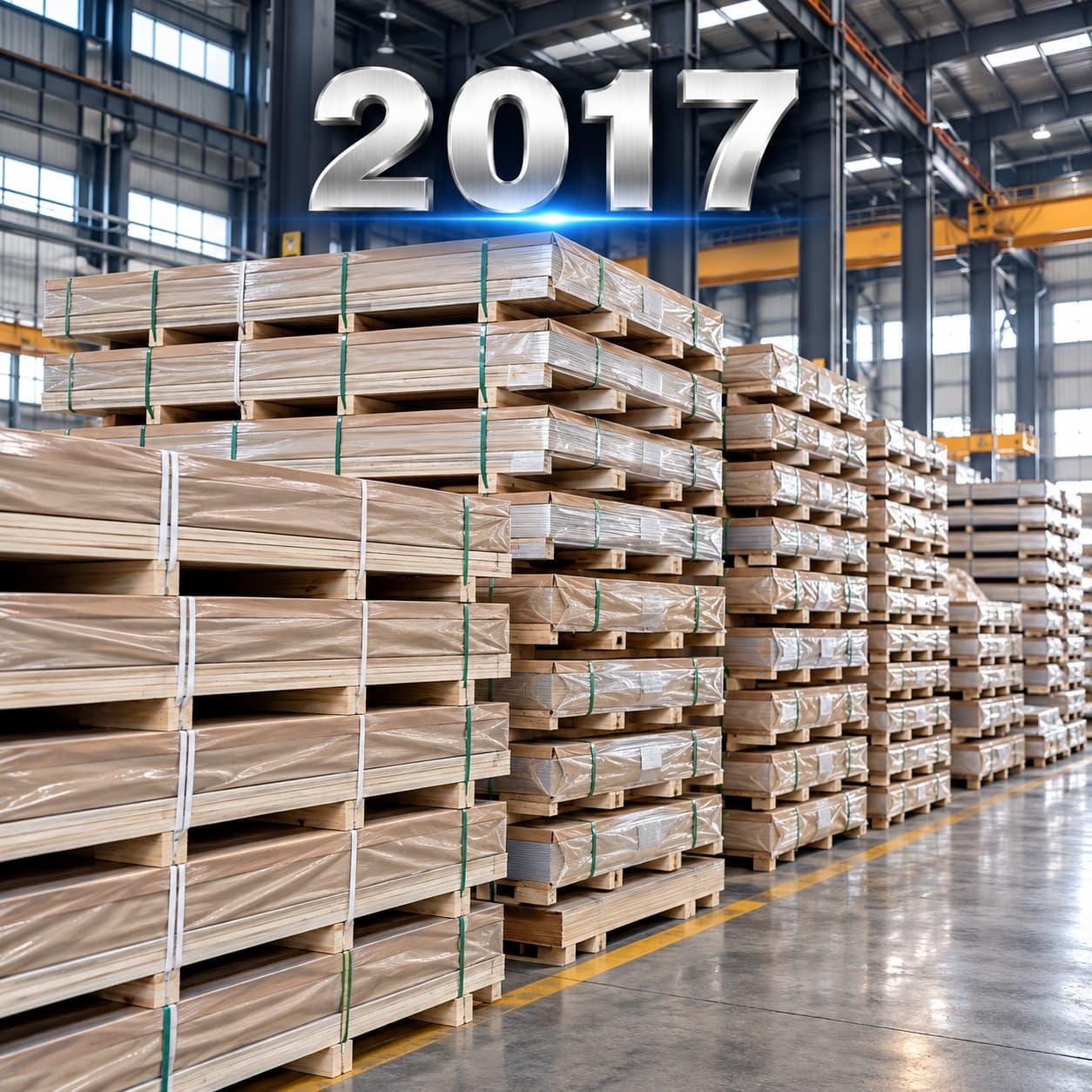

2017 Aluminum Sheet and Plate

Grade: 2017

Coil: 0.3mm-3.0mm

Sheet: 0.3mm-300mm

Width: 50mm-2000mm

Standard: ASTM, AMS, BS etc.

2017 is a heat treatable wrought aluminum copper magnesium silicon alloy traditionally associated with naturally aged high strength components. It offers useful fatigue performance and good machining behavior in T4 and stress relieved T451 conditions. Annealing improves formability but reduces strength. Corrosion resistance is lower than that of commercially pure aluminum, so protective finishes may be required. Sheet and plate procurement needs a product specific specification; widely cited ASTM and AMS references for this grade often cover bars, rods or wire instead.

Chemical composition

Element	Limit wt %	Element	Limit wt %
Al	Balance	Si	0.20–0.80
Fe	0.70 max	Cu	3.50–4.50
Mn	0.40–1.00	Mg	0.40–0.80
Cr	0.10 max	Zn	0.25 max
Ti	0.15 max	Other each	0.05 max
Other total	0.15 max

Mechanical properties by temper

Temper	Thickness mm or basis	Rm MPa	Rp0.2 MPa	Elongation %
O	General wrought reference	180 typical	70 typical	Not assigned
T4	General wrought reference	425 typical	275 typical	Not assigned
T451	General wrought reference	425 typical	275 typical	Not assigned

Application areas

High strength machined engineering components
Aircraft and mechanically fastened structural components
Machine construction and military equipment
Fasteners and rivets from appropriate nonplate product forms
