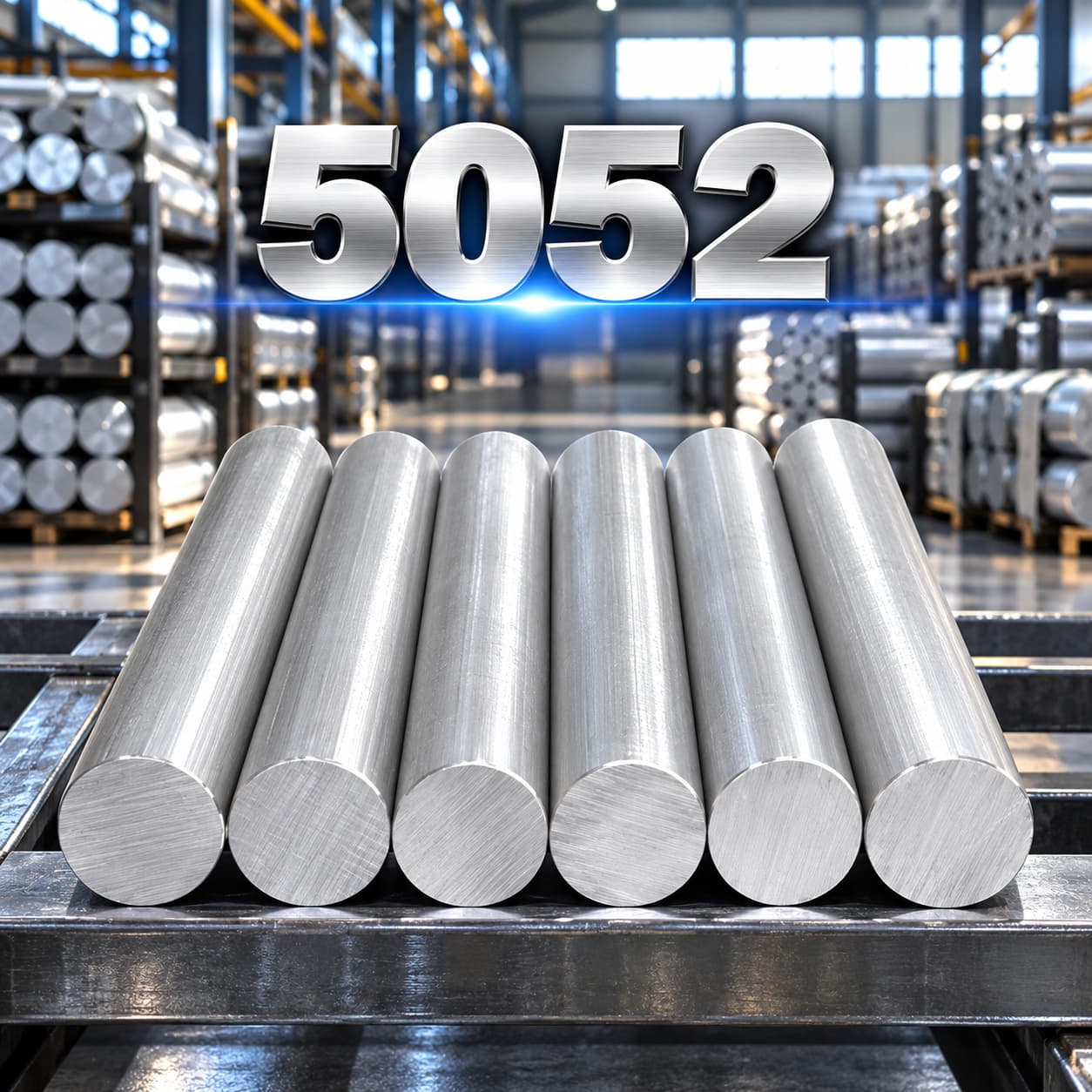

5052 Aluminum Bar and Rod

Grade: 5052

Size:

Cold drawn: 2mm-12mm

Extruded: 6mm-400mm

Standard: ASTM, AMS, BS etc.

5052 is a non heat treatable aluminum magnesium chromium alloy valued for corrosion resistance, weldability and moderate strength. Bars and rods are useful for marine hardware, formed parts and equipment components exposed to humid environments. Strain hardening and stabilization produce H tempers; thermal aging does not produce a T6 condition in this alloy. Annealed stock is easier to form but can be less convenient to machine. Mechanical requirements must match the actual cold working route and bar dimensions.

Chemical composition

Element	Mass percent	Element	Mass percent
Si	0.25	Fe	0.40
Cu	0.10	Mn	0.10
Mg	2.2–2.8	Cr	0.15–0.35
Zn	0.10	Ti	—
Additional	—	Others each / total	0.05 / 0.15
Al	Remainder

Mechanical properties by temper

Temper	Size or basis	UTS MPa	Yield MPa	Elongation %
O	Producer bar range	170–215	65–95	18–30
H32	Producer bar range	230–265	160–190	12–18
H34	Producer bar range	255–290	180–210	8–14
H38	Producer bar range	290–320	220–250	5–10

Application areas

Marine hardware and corrosion resistant fittings
Machined parts for chemical and food handling equipment
Formed or welded transport and equipment components
