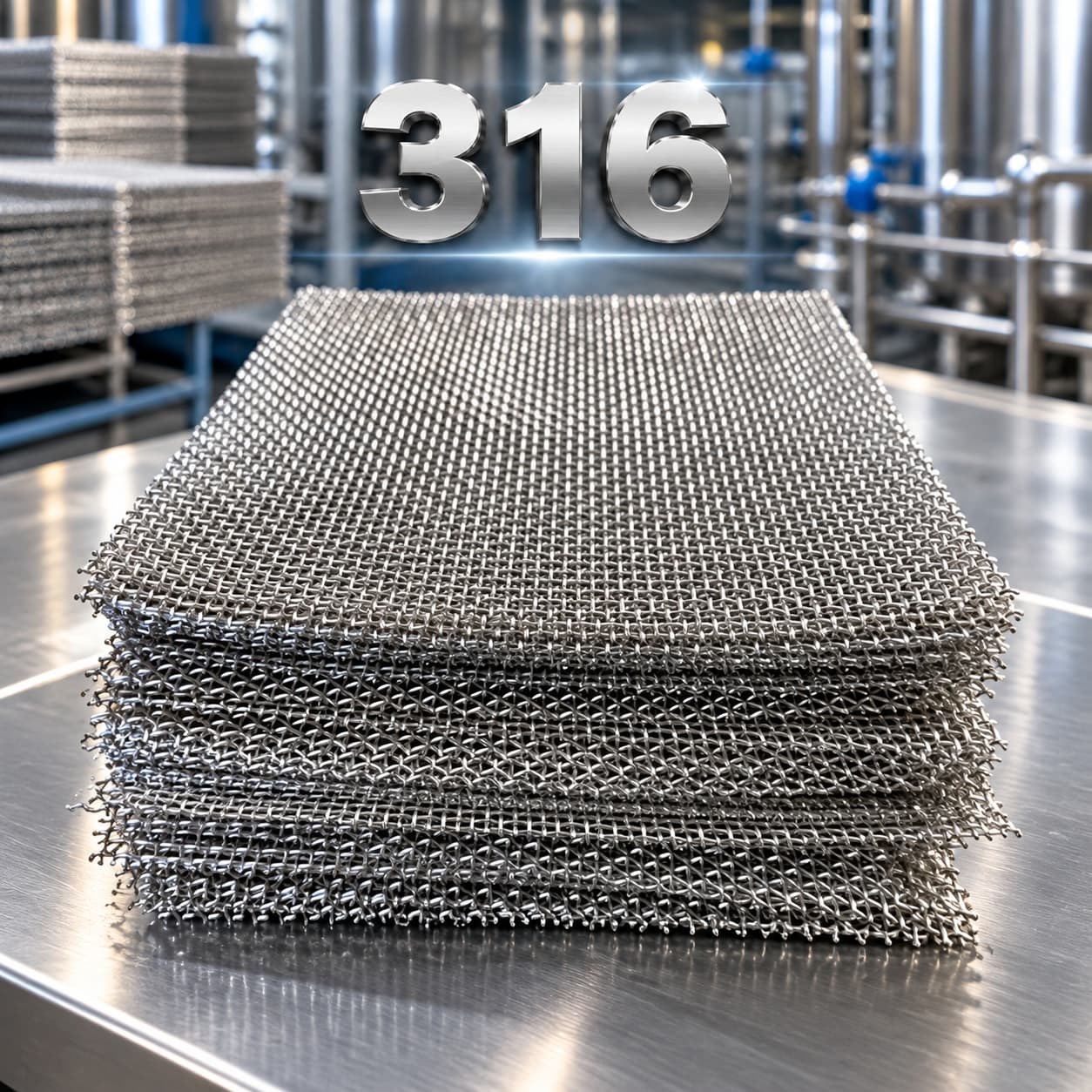

316 Stainless Steel Mesh

Grade: 316/S31600

Mesh Type:

Plain Weave Mesh, Twill Weave Mesh, Dutch Weave Mesh, Welded Wire Mesh

Common Wire Diameter:

0.025–3.0 mm

316 stainless steel wire mesh contains molybdenum, providing better resistance to chloride corrosion compared with 304. It performs well in marine, chemical and high corrosion environments and is widely used for demanding filtration applications.

Common Mesh Specifications and Mesh Counts

Mesh Count	Wire Diameter	Typical Application
1–20 mesh	0.5–3.0 mm	Heavy screening
20–100 mesh	0.10–0.50 mm	Industrial filtration
100–300 mesh	0.025–0.15 mm	Fine filtration
300–500 mesh	0.02–0.05 mm	Precision filtration

Wire Mesh Types and Characteristics

Mesh Type	Characteristics
Plain Weave Mesh	Simple structure, uniform openings, widely used for general filtration.
Twill Weave Mesh	Higher strength and suitable for finer filtration.
Dutch Weave Mesh	High precision filtration for liquid and gas filtration.
Welded Wire Mesh	Strong structure for protection and industrial applications.

Marine engineering
Chemical processing
Oil and gas filtration
High corrosion environments
