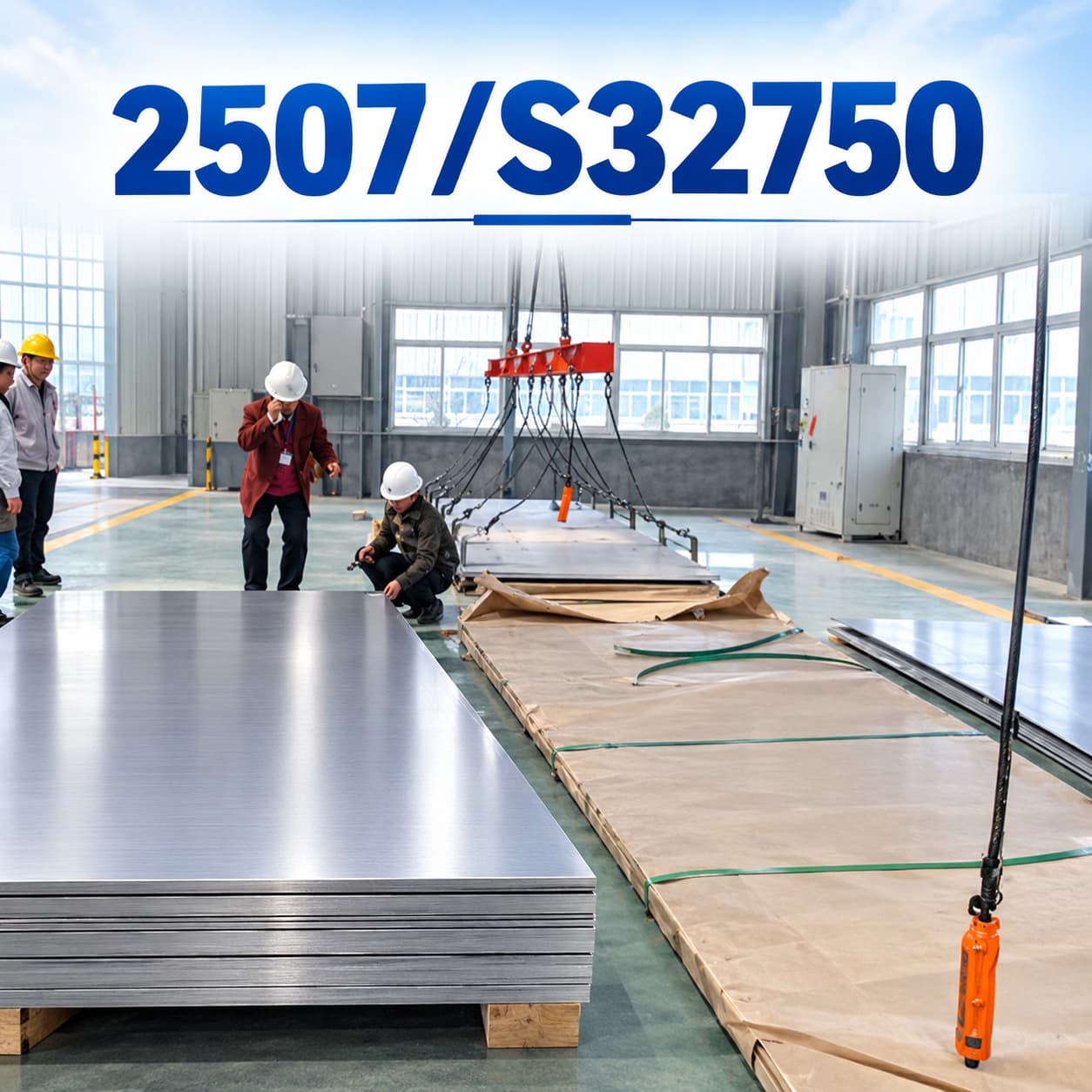

2507/S32750 Stainless Steel Plate
Grade: 2507/S32750
Thickness: 3.0mm-200mm
Width: 1.5m/2.0m/2.2m or as client’s requirement.
Standard: ASTM A240/A240M, JIS G4304, JISG 4305, EN 10088/3
Finish: No.1, Polished
- Fast Shipping / Ready Stock
- ISO 9001 Direct Factory
- Custom Cutting & Processing
- 100% MTC & SGS Inspection Supported
2507 super duplex stainless steel is a high-alloy duplex stainless steel designed for severe corrosion environments requiring superior strength and corrosion resistance. It contains high levels of chromium, molybdenum, and nitrogen, providing outstanding resistance to pitting, crevice corrosion, and stress corrosion cracking.
The duplex microstructure gives 2507 nearly twice the yield strength of standard austenitic stainless steels while maintaining good toughness and weldability. Its high PREN value makes it suitable for highly aggressive chloride-containing environments, including seawater and offshore applications.
2507 is commonly selected for demanding applications in oil and gas, chemical processing, marine engineering, and desalination industries where both mechanical strength and corrosion resistance are critical.
Chemical Composition (Typical wt.%)
| Element | Specification |
| Carbon (C) | ≤0.030 |
| Chromium (Cr) | 24.00-26.00 |
| Nickel (Ni) | 6.00-8.00 |
| Molybdenum (Mo) | 3.00-5.00 |
| Nitrogen (N) | 0.24-0.32 |
| Manganese (Mn) | ≤1.20 |
| Iron (Fe) | Balance |
Mechanical Properties (Annealed Condition)
| Property | Value |
| Tensile Strength | ≥795 MPa |
| Yield Strength (0.2%) | ≥550 MPa |
| Elongation | ≥15% |
| Hardness | ≤310 HB |
| Density | Approx. 7.8 g/cm³ |
- Offshore oil and gas equipment
- Seawater piping systems
- Chemical processing equipment
- Desalination plants
- Heat exchangers
- Pressure vessels
- Marine engineering equipment
- Flue gas systems
