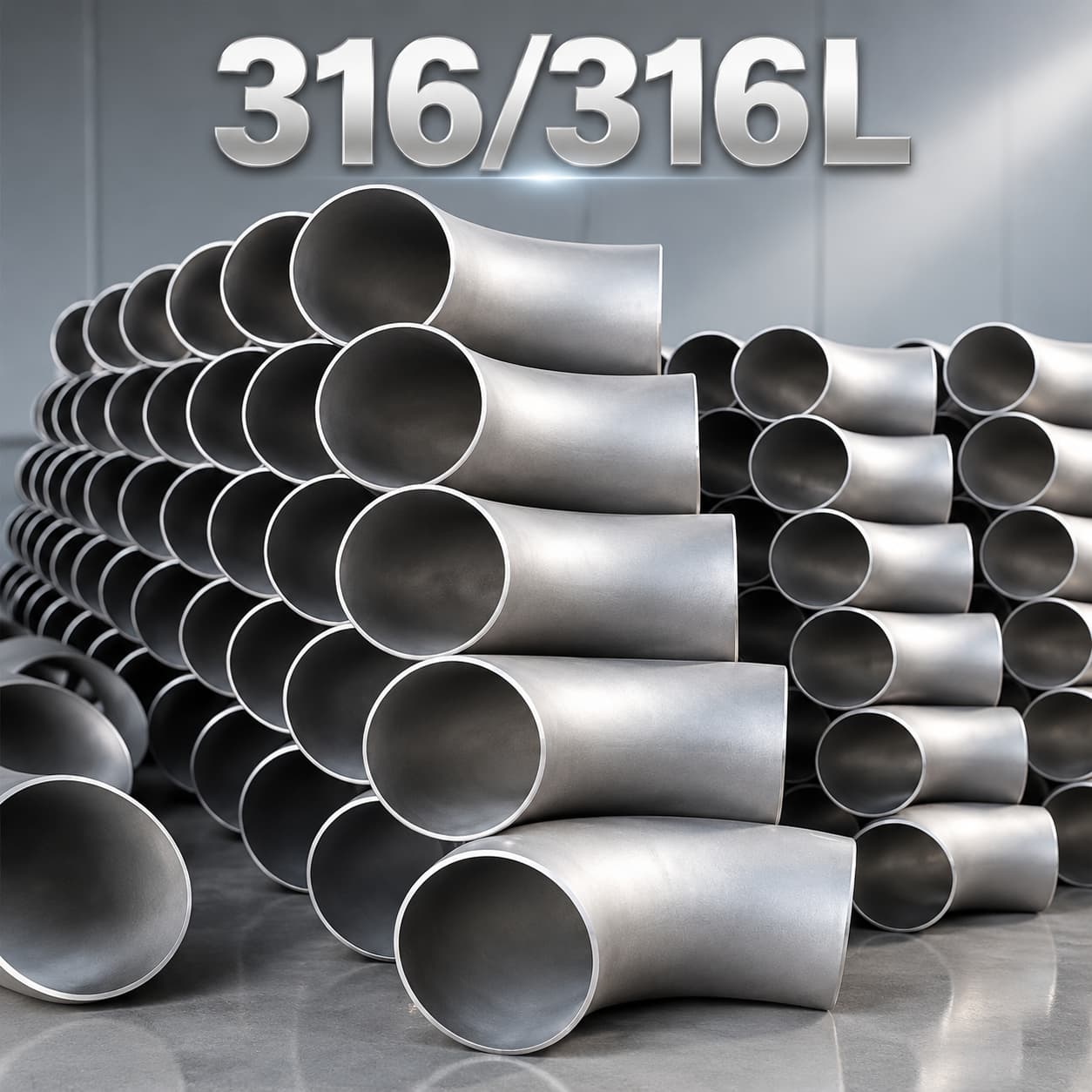

316/316L Stainless Steel Elbow

Grade: 316/316L

Elbow types:

90° Long Radius, 90° Short Radius, 45° Elbow, 180° Return, 3D / 5D Elbow

Standards:

ASME B16.9, EN 10253-4:2025, JIS B2312/2313 etc.

316 and 316L are molybdenum-bearing austenitic stainless steels with improved resistance to pitting and crevice corrosion compared with 304, especially in chloride-containing environments. 316L is the lower-carbon version and is commonly selected for welded piping systems. Stainless steel fittings made from these grades are widely used in chemical, pharmaceutical, marine, food-processing, water-treatment and other corrosive services.

Chemical Composition

Element	Specified / Typical Range (wt. %)
C	≤0.07 / ≤0.030
Mn	≤2.00
Si	≤1.00
P	≤0.045
S	≤0.030
Cr	16.0–18.0
Ni	10.0–14.0
Mo	2.0–3.0
N	≤0.10
Fe	Balance

Mechanical Properties

Property	Minimum / Requirement
Tensile Strength, min.	515 MPa (316) / 485 MPa (316L)
Yield Strength, 0.2%, min.	205 MPa (316) / 170 MPa (316L)
Elongation, min.	30%
Hardness	As required by the applicable fitting specification

Chemical and petrochemical process piping
Oil and gas transmission and production systems
Power generation and utility piping
Food, beverage and pharmaceutical systems
Water treatment and desalination
Marine and offshore piping
