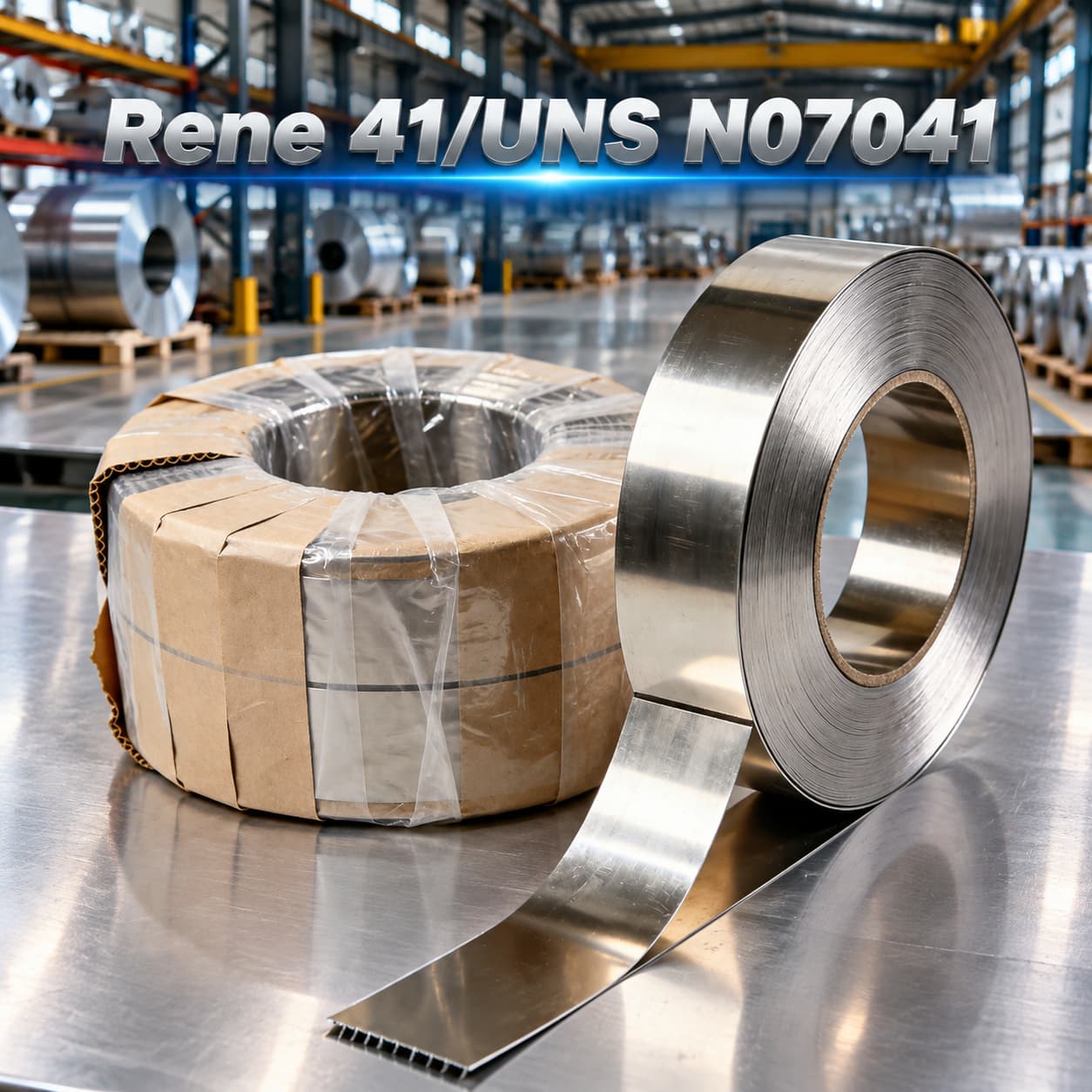

Rene 41/UNS N07041/Alloy R41

Grade: Rene 41/UNS N07041/Alloy R41

Sheet/Plate: 0.3mm-150mm

Strip/Foil: 0.02mm-16mm

Pipe: 6mm*0.5mm-1200mm*100mm

Bar: Ф6mm – Ф600mm

Wire: Ф0.01mm – Ф6mm

Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.

Standard: ASTM/ASME/AMS

Cobalt Alloy R41 / Rene 41
Alloy R41 (Rene 41) is an age hardening nickel base super alloy with has exceptional strength from room temperature through to between 650°C – 980°C (1200 – 1800ºF). R 41 is designed for use in severely stressed high temperature applications. R41 (Rene 41) is typically used in hot components for jet engines, rocket engines, turbine blades, turbine wheels, torque rings, bolting, springs and much more.

Chemical Composition

C	Si	Ni	Co	Al	Fe	Mn	Cr	Mo	Ti	B
0.06 – 0.12	0.20 max	Bal	10-12	1.4-1.6	5.0 max	0.1 max	18-20	9.0-10.5	3-3.3	0.003-0.01

Mechanical Properties

Material	Tensile Strength ksi	Yield Strength ksi	Elongation in 4D	Reduction of Area	Hardness
Rene 41 (R41) Solution Treated Bar					363 HB max
Rene 41 (R41) Solution Treated Aged Bar	170	130	8	10	311 HB min
Rene 41 (R41) Solution Treated Sheet	170 max	100 max	30 max		30HRC max
Rene 41 (R41) Solution Treated Aged Sheet	170 min	130 min	10 min		35 HRC min

Rene 41 Applications

▪ Aircraft engine components
▪ Aircraft turbine blades
▪ Aircraft wheel
▪ Aircraft combustion chamber liners
▪ Aircraft structural hardware
▪ Afterburner parts
