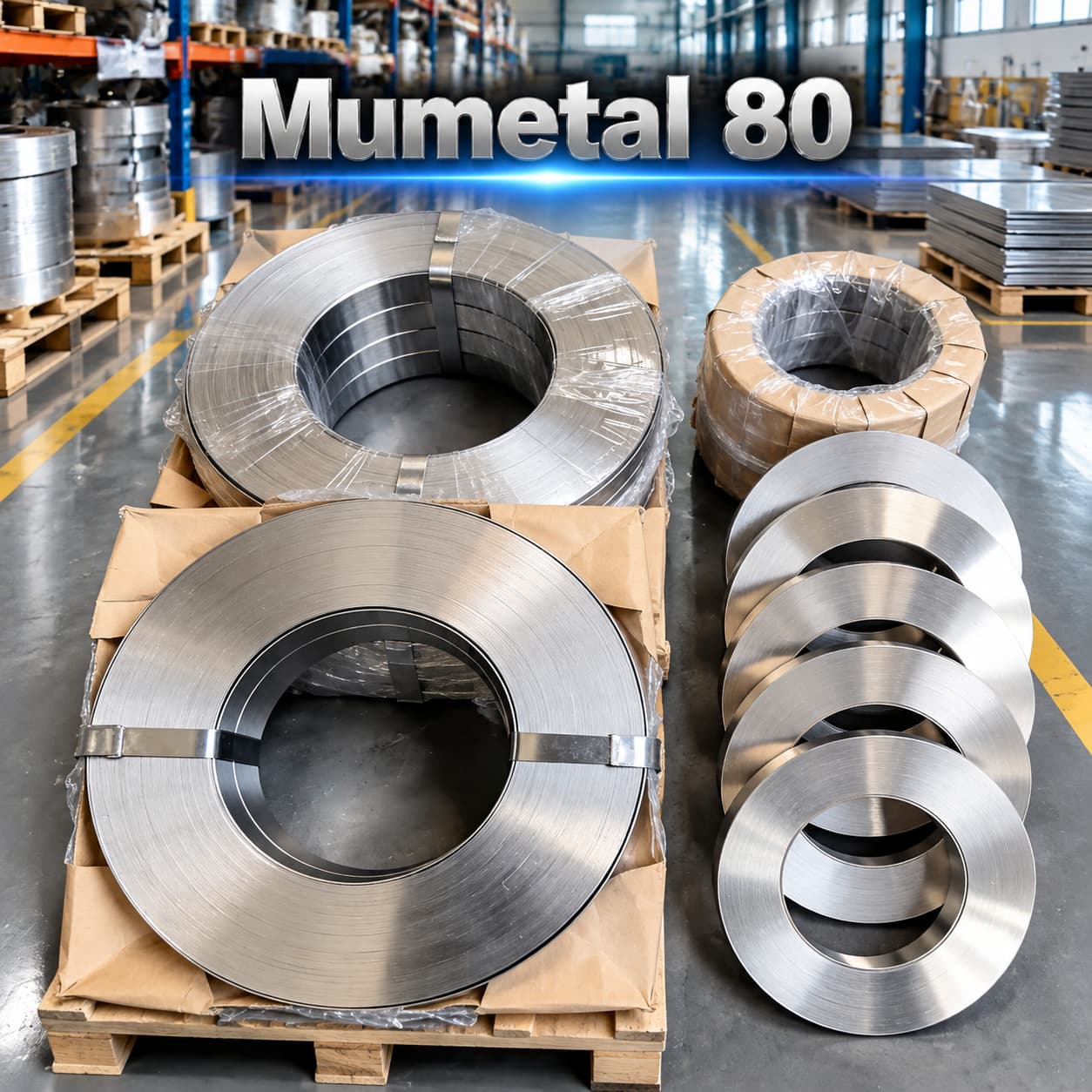

Mumetal 80/UNS N14080
Grade: Mumetal 80/HyMu 80/Permalloy 80/UNS N14080/ASTM A753 Alloy 4
Sheet/Plate: 0.3mm-150mm
Strip/Foil: 0.02mm-16mm
Pipe: 6mm*0.5mm-1200mm*100mm
Bar: Ф6mm – Ф600mm
Wire: Ф0.01mm – Ф6mm
Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.
Standard: ASTM/ASME/AMS
- Fast Shipping / Ready Stock
- ISO 9001 Factory
- Custom Cutting
- 100% MTC & SGS Inspection
Magnetic Shielding Alloy Mu-Metal / HY-MU 80
Mumetal is 80% nickel with additions of iron and molybdenum as main elements in turn this alloy offers an extremely high initial permeability. It is only moderately resistant to moisture and atmospheric corrosion, it used mainly in in transformer cores but is well known for its magnetic properties which are used for shielding electrical components from magnetic fields. “HYMU 80″ has a minimum DC permeability of 80,000 at a flux density of 40 gauss when heat treated by the recommended procedure and test in accordance with ASTM 596
| Weight% | Ni | Cu | Cr | S | P | Si | Mn | C | Mo | Fe |
| Hymu 80 (Comp1) | 79.0-80.6 | 0.008 | 0.02 | 0.42 | 0.95 | 0.03 | 3.8-5 | Rem | ||
| MIL N 14411C (Comp2) | 75.0-77.0 | 4.0-6.0 | 3.0 | 0.02 | 0.02 | 0.50 | 1.8 | 0.05 |
▪ Permalloy
▪ HYMU 80
▪ MAG 7904
▪ MIL N 14411 C, COMP. 1
▪ ASTM A753-78 and ASTM 596
▪ Specific Gravity – 8.7g/cm
▪ Curie Temperature – 830°F (410°C)
▪ Electrical Resistivity, 349 ohm circ mil/foot 0.55 ohm mm²m
▪ Density lb/cu.in. – 316
▪ Thermal Conductivity – 134 btu-inch/ft hour °F 0.32 W/cm °C
▪ Coefficient of Thermal Expansion, in./in. °F x 10 (-******)
▪ 7.2in/in °F x 10-6 between 70 and 400F
▪ 13cm/cm/ °C 10-6 between 30 and 204 °C
Applications:
- Aerospace springs
- Fasteners
- Precision components
Magnetic Shielding Alloy Mu-Metal / HY-MU 80
Mumetal is 80% nickel with additions of iron and molybdenum as main elements in turn this alloy offers an extremely high initial permeability. It is only moderately resistant to moisture and atmospheric corrosion, it used mainly in in transformer cores but is well known for its magnetic properties which are used for shielding electrical components from magnetic fields. “HYMU 80″ has a minimum DC permeability of 80,000 at a flux density of 40 gauss when heat treated by the recommended procedure and test in accordance with ASTM 596
| Weight% | Ni | Cu | Cr | S | P | Si | Mn | C | Mo | Fe |
| Hymu 80 (Comp1) | 79.0-80.6 | 0.008 | 0.02 | 0.42 | 0.95 | 0.03 | 3.8-5 | Rem | ||
| MIL N 14411C (Comp2) | 75.0-77.0 | 4.0-6.0 | 3.0 | 0.02 | 0.02 | 0.50 | 1.8 | 0.05 |
▪ Permalloy
▪ HYMU 80
▪ MAG 7904
▪ MIL N 14411 C, COMP. 1
▪ ASTM A753-78 and ASTM 596
▪ Specific Gravity – 8.7g/cm
▪ Curie Temperature – 830°F (410°C)
▪ Electrical Resistivity, 349 ohm circ mil/foot 0.55 ohm mm²m
▪ Density lb/cu.in. – 316
▪ Thermal Conductivity – 134 btu-inch/ft hour °F 0.32 W/cm °C
▪ Coefficient of Thermal Expansion, in./in. °F x 10 (-******)
▪ 7.2in/in °F x 10-6 between 70 and 400F
▪ 13cm/cm/ °C 10-6 between 30 and 204 °C
Applications:
- Aerospace springs
- Fasteners
- Precision components
