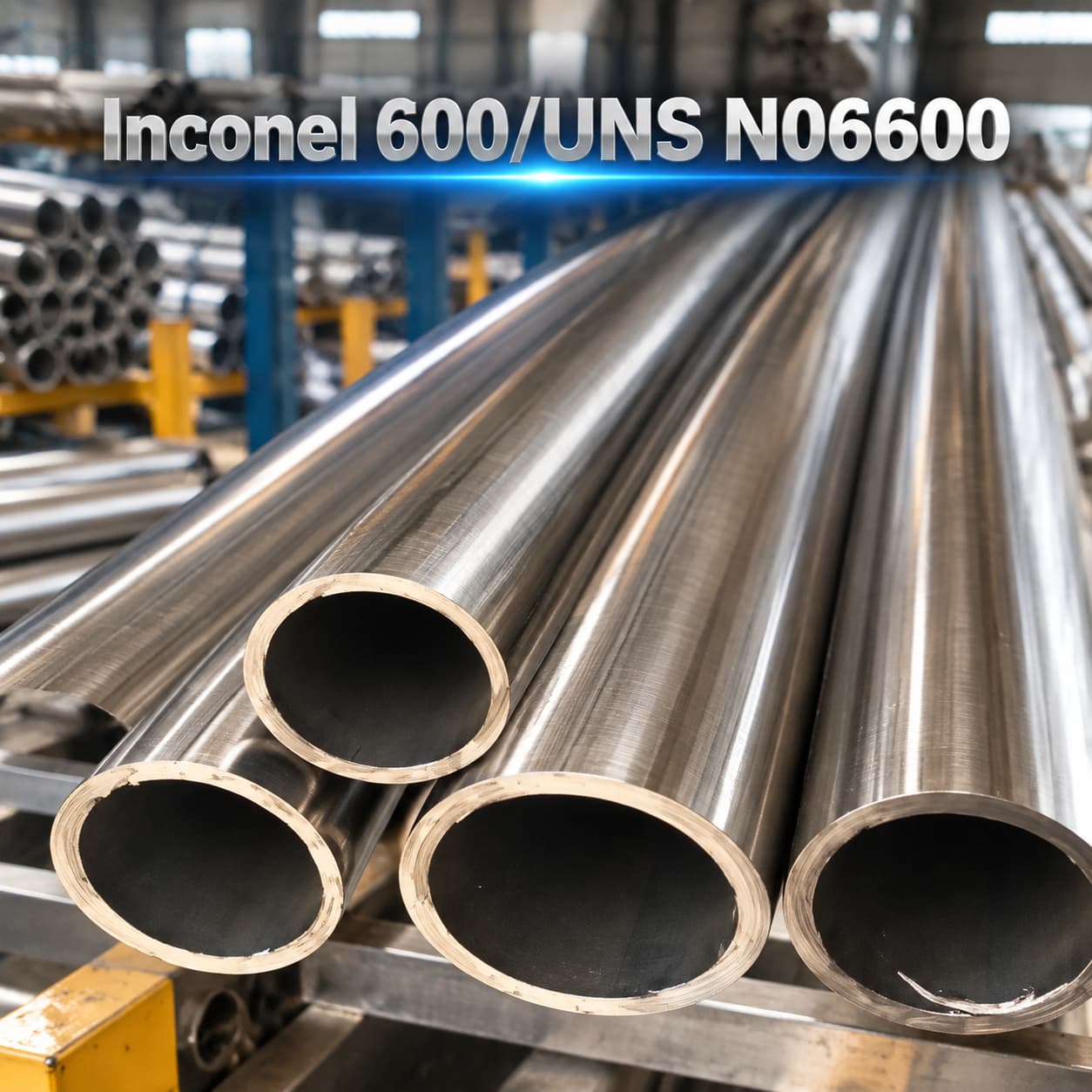

Alloy 600/UNS N06600

Grade: Inconel 600/UNS N06600/Alloy 600/Nickel Alloy 600/W.Nr.2.4816/NCF600

Sheet/Plate: 0.3mm-150mm

Strip/Foil: 0.02mm-16mm

Pipe: 6mm*0.5mm-1200mm*100mm

Bar: Ф6mm – Ф600mm

Wire: Ф0.01mm – Ф6mm

Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.

Standard: ASTM/ASME/AMS

INCONEL 600 is a nickel chromium iron alloy for equipment exposed to heat and corrosive environments. Its nickel content supports resistance to many chemical media, while chromium improves oxidation resistance. Strength is controlled mainly through solid-solution effects and working rather than precipitation aging. The alloy combines practical fabrication behavior with useful performance in furnace hardware, chemical processing and selected nuclear applications.

Chemical composition

Element	Weight percent	Element	Weight percent
Ni + Co	72.0 min	Cr	14.0–17.0
Fe	6.0–10.0	C	0.15 max
Mn	1.0 max	S	0.015 max
Si	0.50 max	Cu	0.50 max

Mechanical properties

Typical room-temperature ranges from Special Metals Table 6; annealed products. Values combine different sizes and are not specification minima.

Product / condition	0.2% yield MPa	Tensile MPa	Elongation %
Cold-drawn bar, annealed	170–345	550–690	35–55
Hot-finished bar, annealed	205–345	550–690	35–55
Hot-rolled plate, annealed	205–345	550–725	35–55
Cold-rolled sheet, annealed	205–310	550–690	35–55

Elongation ranges have been arranged in ascending order. Cold-worked material can show substantially higher strength and lower ductility.

Application areas

Furnace retorts, baskets and heat-treatment fixtures
Chemical process heaters and evaporator equipment
Selected nuclear reactor components
