Chemical Composition (wt.%): Element Content Ni ≥63 Cu 27-33 Al 2.3-3.15 Ti 0.35-0.85 Fe ≤2.0 Mn ≤1.5

Mechanical Properties: Property Typical Value Tensile Strength ≥1100 MPa Yield Strength ≥790 MPa Elongation ≥15%

Applications: Pump shafts Oil and gas drilling equipment Marine propeller shafts Fasteners Seawater valves

Chemical Composition (wt.%): Element Content Ni ≥63 Cu 27-33 Al 2.3-3.15 Ti 0.35-0.85 Fe ≤2.0 Mn ≤1.5

Mechanical Properties: Property Typical Value Tensile Strength ≥1100 MPa Yield Strength ≥790 MPa Elongation ≥15%

Applications: Pump shafts Oil and gas drilling equipment Marine propeller shafts Fasteners Seawater valves

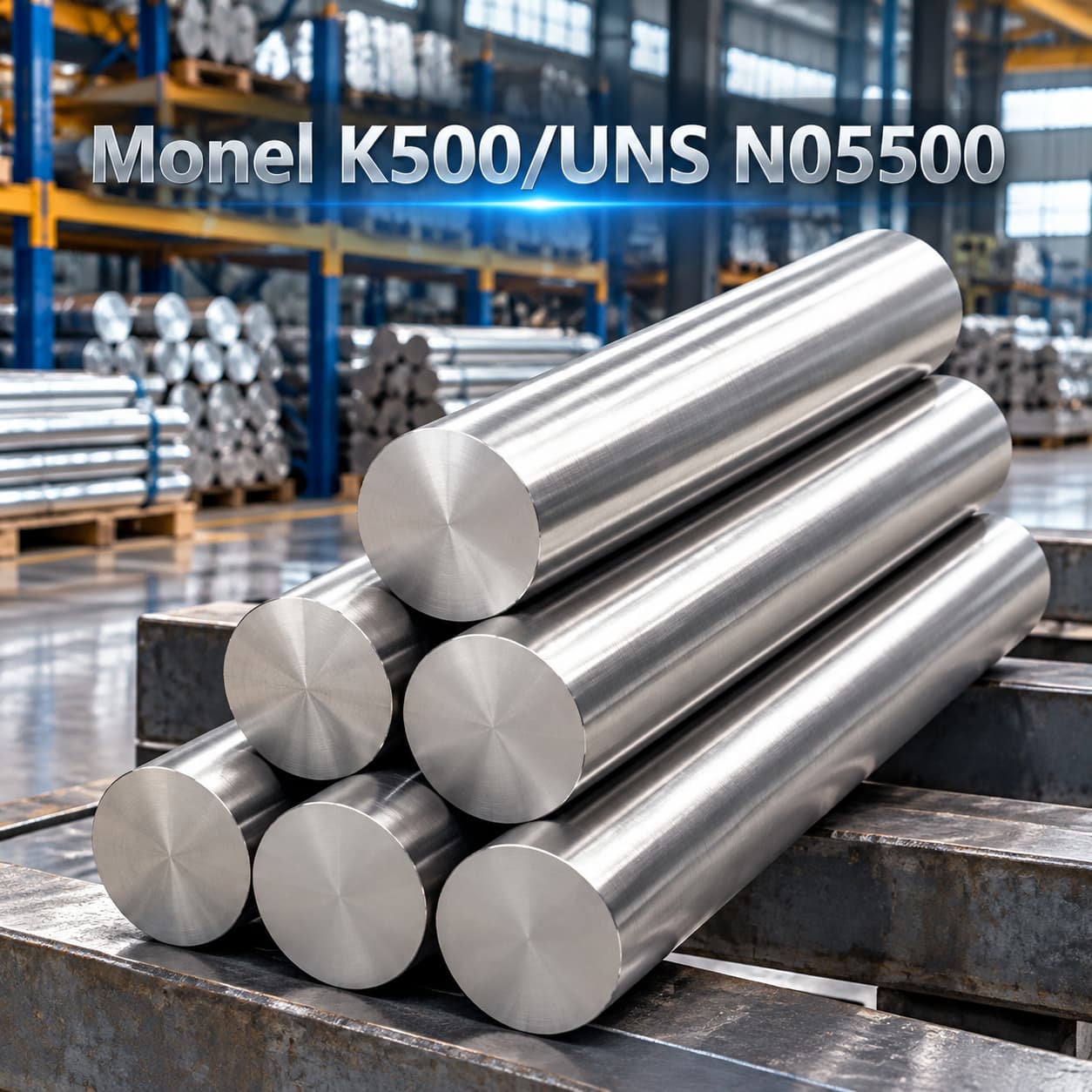

Alloy K500 / UNS N05500

Grade: Monel K500/UNS N05500/Monel K-500/Alloy K500/Alloy K-500/Nickel Alloy K500/Nickel Alloy K-500/W.Nr. 2.4375/NiCu30AlTi

Sheet/Plate: 0.3mm-150mm

Strip/Foil: 0.02mm-16mm

Pipe: 6mm*0.5mm-1200mm*100mm

Bar: Ф6mm – Ф600mm

Wire: Ф0.01mm – Ф6mm

Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.

Standard: ASTM/ASME/AMS

MONEL K500 is a precipitation-hardenable nickel-copper alloy combining the excellent corrosion resistance of Monel 400 with significantly higher strength and hardness. Aluminum and titanium additions enable age hardening, making it suitable for demanding marine, oil and gas applications.

Chemical Composition (wt.%):
