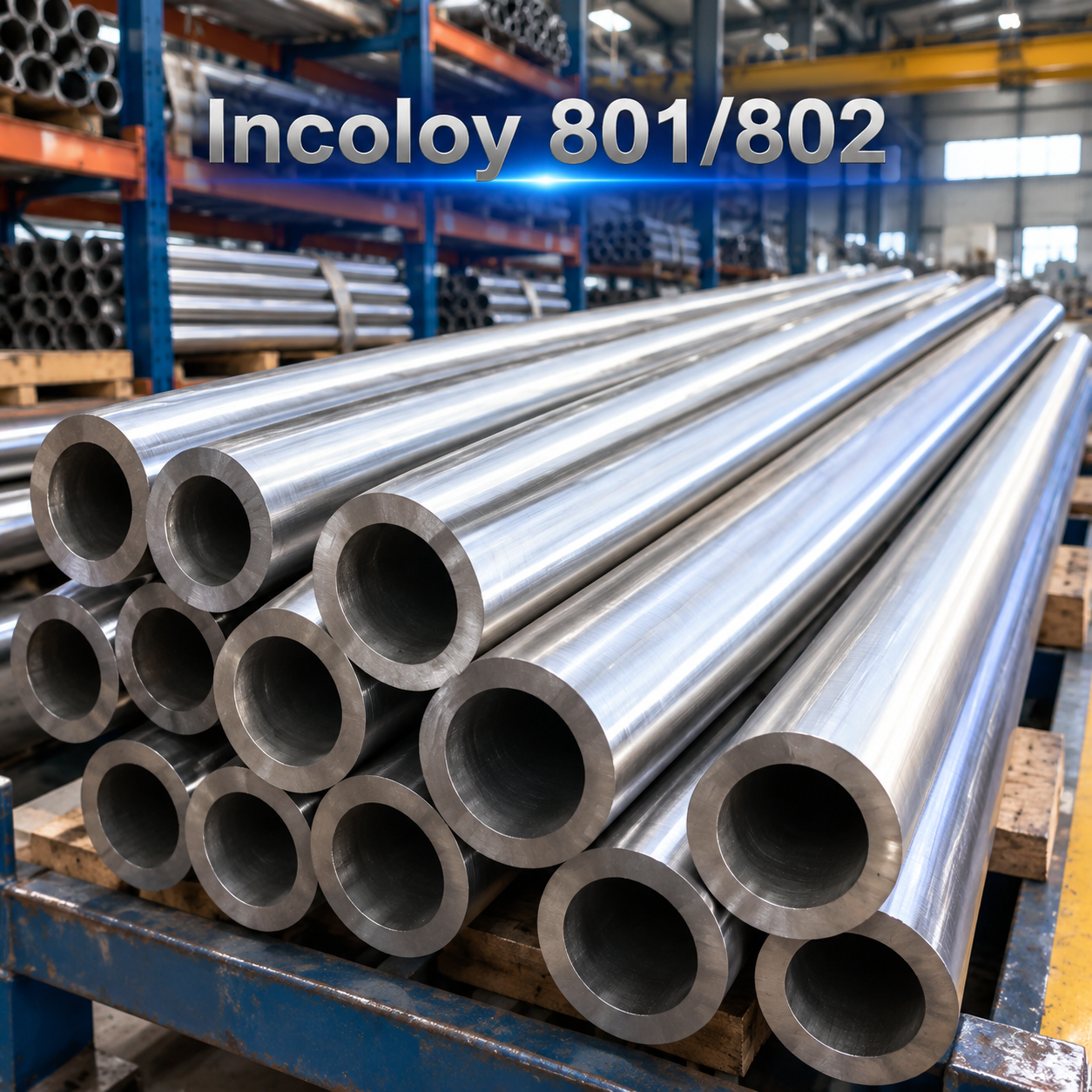

Alloy 801/802

Grade: Incoloy 801/Incoloy 802/Alloy 801/Alloy 802/UNS N08801/UNS N08802/Nickel Alloy 801/Nickel Alloy 802

Sheet/Plate: 0.3mm-150mm

Strip/Foil: 0.02mm-16mm

Pipe: 6mm*0.5mm-1200mm*100mm

Bar: Ф6mm – Ф600mm

Wire: Ф0.01mm – Ф6mm

Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.

Standard: ASTM/ASME/AMS

Very similar to Incoloy 800, both Incoloy 801 and Incoloy 802 are iron-nickel-chromium alloys. Incoloy 801 has increased titanium additions raising the tensile and rupture strength dramatically and it has exceptional resistance to polythionic acid cracking.
N08801 stainless steel is a superaustenitic (highly alloyed) stainless steel formulated for primary forming into wrought products. Cited properties are appropriate for the annealed condition. N08801 is the UNS number for this material. Alloy 801 is the common industry name.
It has a moderately low base cost among wrought superaustenitic stainless steels. In addition, it has a fairly high tensile strength and a moderately low ductility.

Chemical Composition (%)

Element	Incoloy 801, %	Incoloy 802, %
Nickel	≥32	≥32
Chromium	≥20.5	≥21
Iron	Balance	Balance
Carbon	≤0.05	≤0.35
Aluminum	–	≥0.60
Titanium	≥1.10	≥0.70
Copper	≥0.15	–

Mechanical Properties (Typical)

Tensile Strength, min.	Yield Strength, min.	Elongation, min.	Reduction in Area, min.
Mpa	Mpa	%	%
1160	1035	15	53

Application

▪ Food Processing Industry
▪ Fabrication Industry
▪ Oil and Gas Industry
▪ Chemical Industry
▪ Plumbing
▪ General Purpose Applications
▪ Heating
