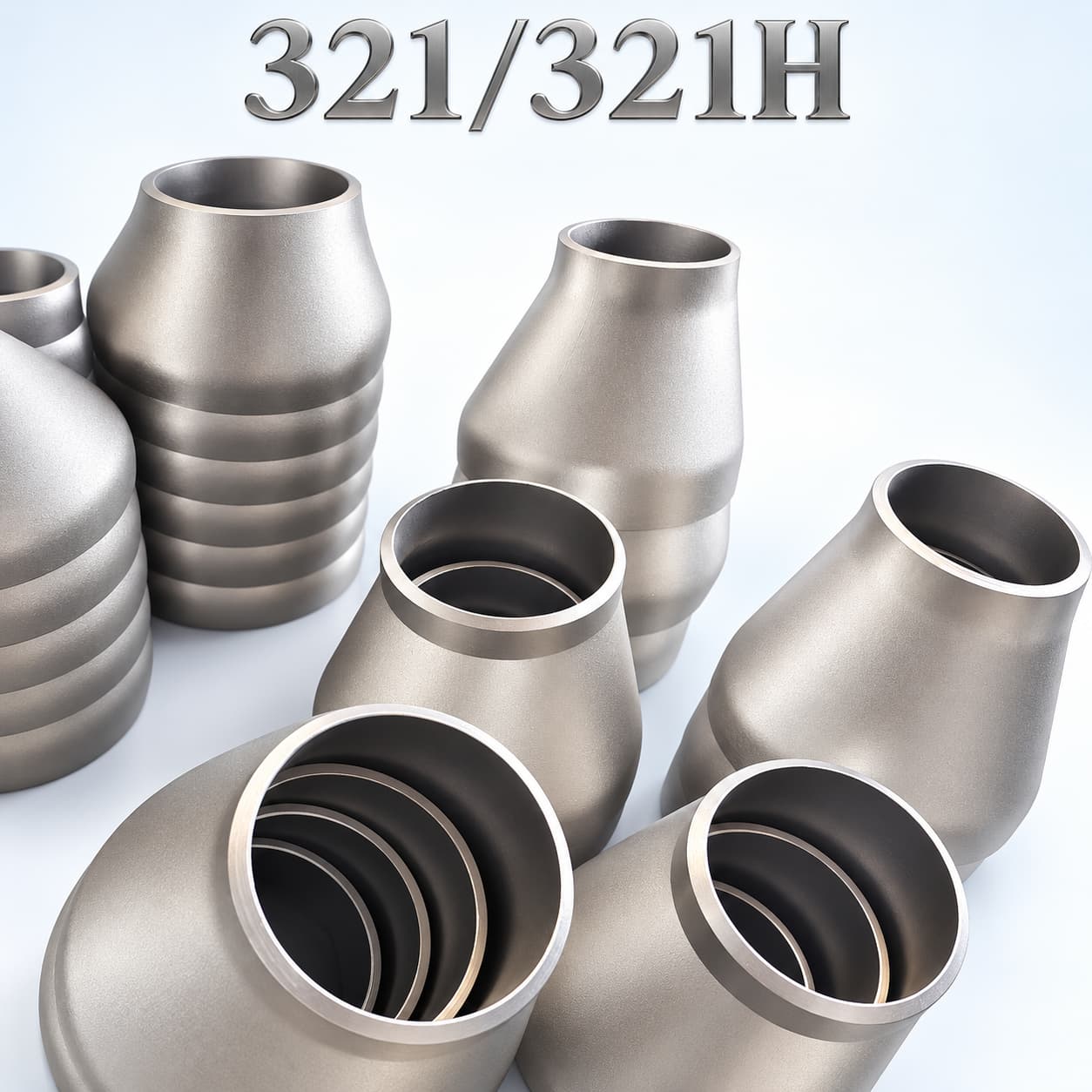

321 Stainless Steel Reducers

Grade: 321

Types:

Concentric Reducer, Eccentric Reducer, Straight Reducer, Seamless Reducer, Welded Reducer

Standard:

ASME B16.9, EN 10253-4:2025, JIS B2312/2313

321 is a titanium-stabilized austenitic stainless steel based on the 304 family. Titanium reduces the tendency for chromium carbide precipitation during elevated-temperature exposure, making the grade useful for welded fittings subjected to heat and thermal cycling. It provides good general corrosion resistance together with good high-temperature stability and is commonly specified for thermal process piping, heat exchangers and petrochemical equipment.

Chemical Composition

Element	Specified / Typical Range (wt. %)
C	≤0.08
Mn	≤2.00
Si	≤1.00
P	≤0.045
S	≤0.030
Cr	17.0–19.0
Ni	9.0–12.0
Mo	—
N	≤0.10
Ti	≥5×C; ≤0.70
Fe	Balance

Mechanical Properties

Property	Minimum / Requirement
Tensile Strength, min.	515 MPa
Yield Strength, 0.2%, min.	205 MPa
Elongation, min.	30%
Hardness	As required by the applicable fitting specification

Pump and equipment connections
Process piping size transitions
Chemical and petrochemical plants
Oil and gas and energy systems
Water treatment and desalination
Food, pharmaceutical and general industrial piping
