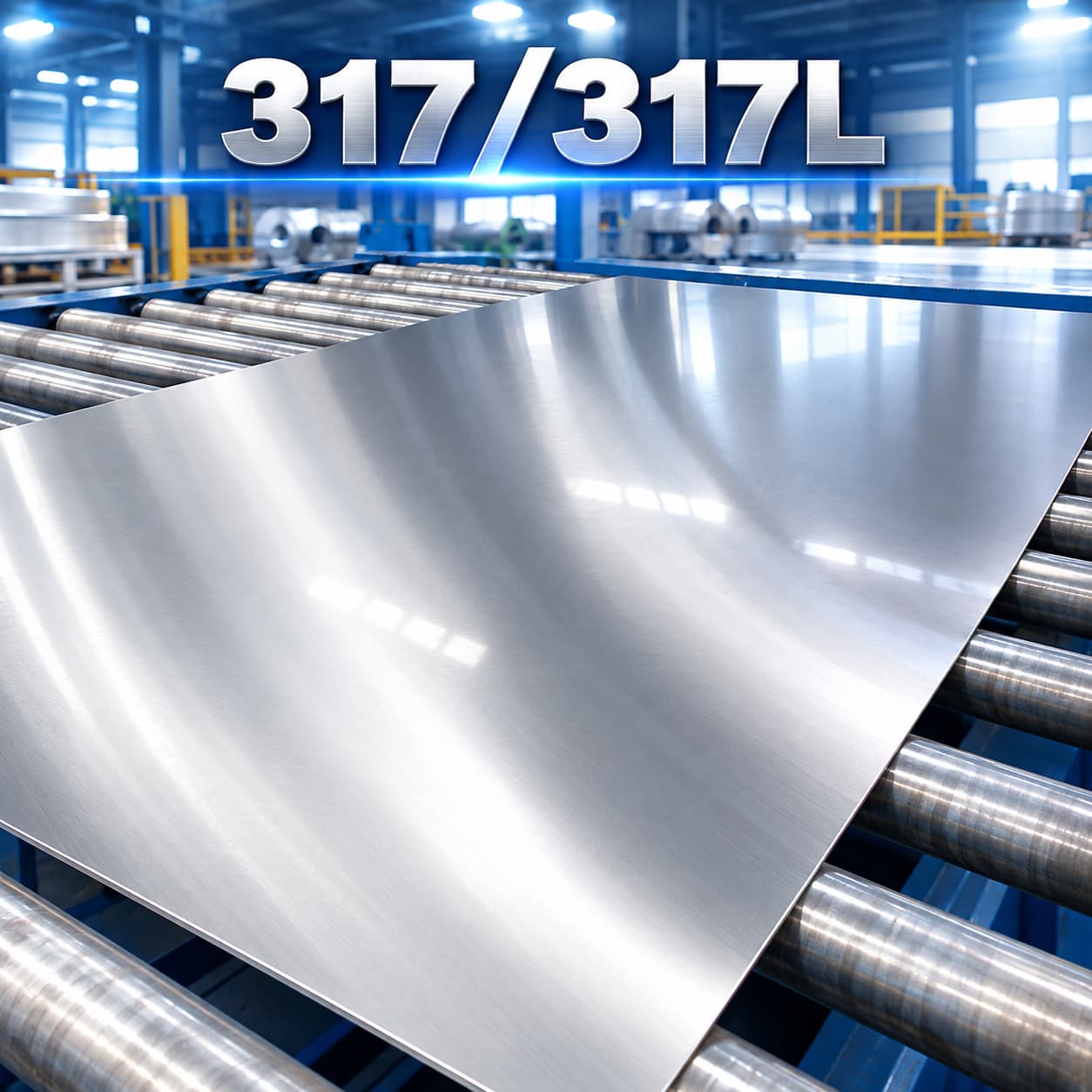

317/317L Stainless Steel Sheet

Grade: 317/317L

Thickness: 0.4mm-6mm

Width: 1.0m/1.22m/1.5m or as client’s requirement.

Standard: ASTM A240/A240M, JIS G4304, JISG 4305, EN 10088/3

Finish: 2B, 8K, HL, 240#

317 and 317L are high-molybdenum austenitic stainless steels with enhanced corrosion resistance compared with 316 grades. Their higher chromium, nickel, and molybdenum contents provide excellent resistance to pitting, crevice corrosion, and chemical attack. 317L is the low-carbon version with improved weldability and resistance to intergranular corrosion.

Chemical Composition (Typical wt.%)

Element	317	317L
Carbon (C)	≤0.08	≤0.03
Chromium (Cr)	18.00-20.00	18.00-20.00
Nickel (Ni)	11.00-15.00	11.00-15.00
Molybdenum (Mo)	3.00-4.00	3.00-4.00
Iron (Fe)	Balance	Balance

Mechanical Properties (Annealed Condition)

Property	317	317L
Tensile Strength	≥515 MPa	≥515 MPa
Yield Strength	≥205 MPa	≥205 MPa
Elongation	≥35%	≥35%
Hardness	≤217 HB	≤217 HB

Chemical processing equipment
Pulp and paper equipment
Acid handling systems
Flue gas desulfurization systems
Petrochemical equipment
Storage tanks
Chloride-containing environments
