Chemical Composition Element Content (wt. %) C ≤0.080 Si ≤1.00 Mn ≤2.00 P ≤0.045 S ≤0.030 Cr 16.0–18.0 Ni 10.0–14.0 Mo 2.0–3.0 N ≤0.10 Other Ti: ≥5×C, ≤0.70; Fe: Balance

Mechanical Properties Condition Tensile Strength Yield Strength (0.2%) Elongation Hardness Solution annealed ≥515 ≥205 ≥35 ≤217 HB / ≤95 HRB

Chemical plants Petrochemical piping Heat exchangers Pharmaceutical equipment High-temperature process systems Industrial piping

Chemical Composition Element Content (wt. %) C ≤0.080 Si ≤1.00 Mn ≤2.00 P ≤0.045 S ≤0.030 Cr 16.0–18.0 Ni 10.0–14.0 Mo 2.0–3.0 N ≤0.10 Other Ti: ≥5×C, ≤0.70; Fe: Balance

Mechanical Properties Condition Tensile Strength Yield Strength (0.2%) Elongation Hardness Solution annealed ≥515 ≥205 ≥35 ≤217 HB / ≤95 HRB

Chemical plants Petrochemical piping Heat exchangers Pharmaceutical equipment High-temperature process systems Industrial piping

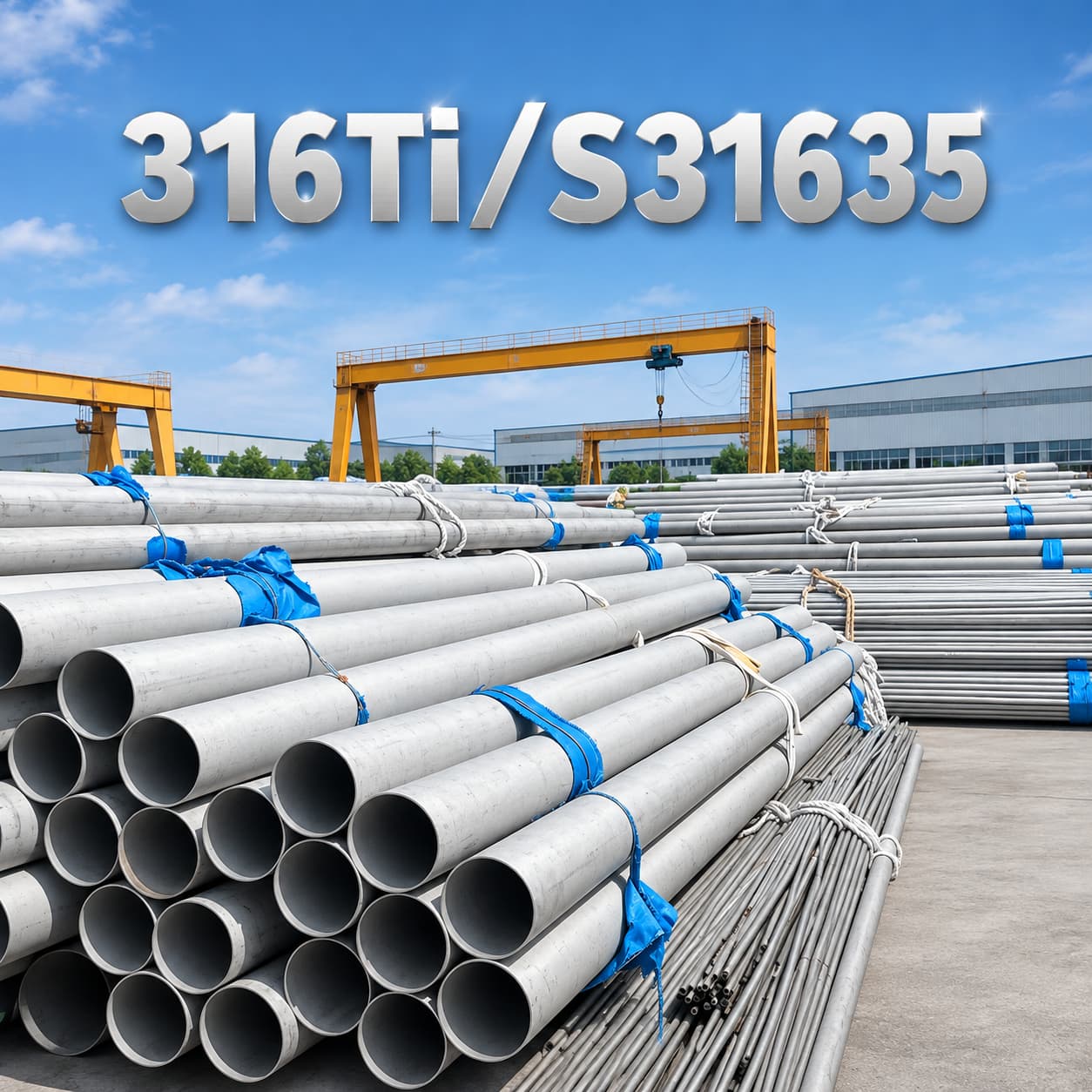

316Ti Stainless Steel Round Pipe

Grade: 316Ti/S31635

Size:

Seamless: 6mm*1mm-720mm*50mm

Welded: 12mm*0.5mm-2000mm*100mm

Coiled: 4mm*0.3mm-32mm*3mm

Standard: ASTM A312, ASTM A213 etc.

Surface: No.1(Pickling), Bright(Polished)

316Ti Stainless Steel Pipe is a titanium-stabilized version of 316 stainless steel, providing molybdenum-enhanced corrosion resistance together with improved resistance to sensitization during elevated-temperature exposure. It offers good weldability, toughness, and resistance to chloride-containing media. 316Ti pipe is frequently used in chemical, petrochemical, pharmaceutical, heat-exchanger, and high-temperature process systems where stable corrosion performance after welding is important.

Chemical Composition

Element	Content (wt. %)
C	≤0.080
Si	≤1.00
Mn	≤2.00
P	≤0.045
S	≤0.030
Cr	16.0–18.0
Ni	10.0–14.0
Mo	2.0–3.0
N	≤0.10
Other	Ti: ≥5×C, ≤0.70; Fe: Balance

Mechanical Properties

Condition	Tensile Strength	Yield Strength (0.2%)	Elongation	Hardness
Solution annealed	≥515	≥205	≥35	≤217 HB / ≤95 HRB

Chemical plants
Petrochemical piping
Heat exchangers
Pharmaceutical equipment
High-temperature process systems
Industrial piping

Introduction

Specification

Chemical Composition

Element	Content (wt. %)
C	≤0.080
Si	≤1.00
Mn	≤2.00
P	≤0.045
S	≤0.030
Cr	16.0–18.0
Ni	10.0–14.0
Mo	2.0–3.0
N	≤0.10
Other	Ti: ≥5×C, ≤0.70; Fe: Balance
