Chemical Composition Element Content (wt. %) C ≤0.080 Si ≤1.00 Mn ≤2.00 P ≤0.045 S ≤0.030 Cr 16.0–18.0 Ni 10.0–14.0 Mo 2.0–3.0 N ≤0.10 Other Fe: Balance

Mechanical Properties Condition Tensile Strength Yield Strength (0.2%) Elongation Hardness Solution annealed ≥515 ≥205 ≥35 ≤217 HB / ≤95 HRB

Marine piping Chemical processing Pharmaceutical equipment Food and beverage systems Water treatment Heat exchangers

Chemical Composition Element Content (wt. %) C ≤0.080 Si ≤1.00 Mn ≤2.00 P ≤0.045 S ≤0.030 Cr 16.0–18.0 Ni 10.0–14.0 Mo 2.0–3.0 N ≤0.10 Other Fe: Balance

Mechanical Properties Condition Tensile Strength Yield Strength (0.2%) Elongation Hardness Solution annealed ≥515 ≥205 ≥35 ≤217 HB / ≤95 HRB

Marine piping Chemical processing Pharmaceutical equipment Food and beverage systems Water treatment Heat exchangers

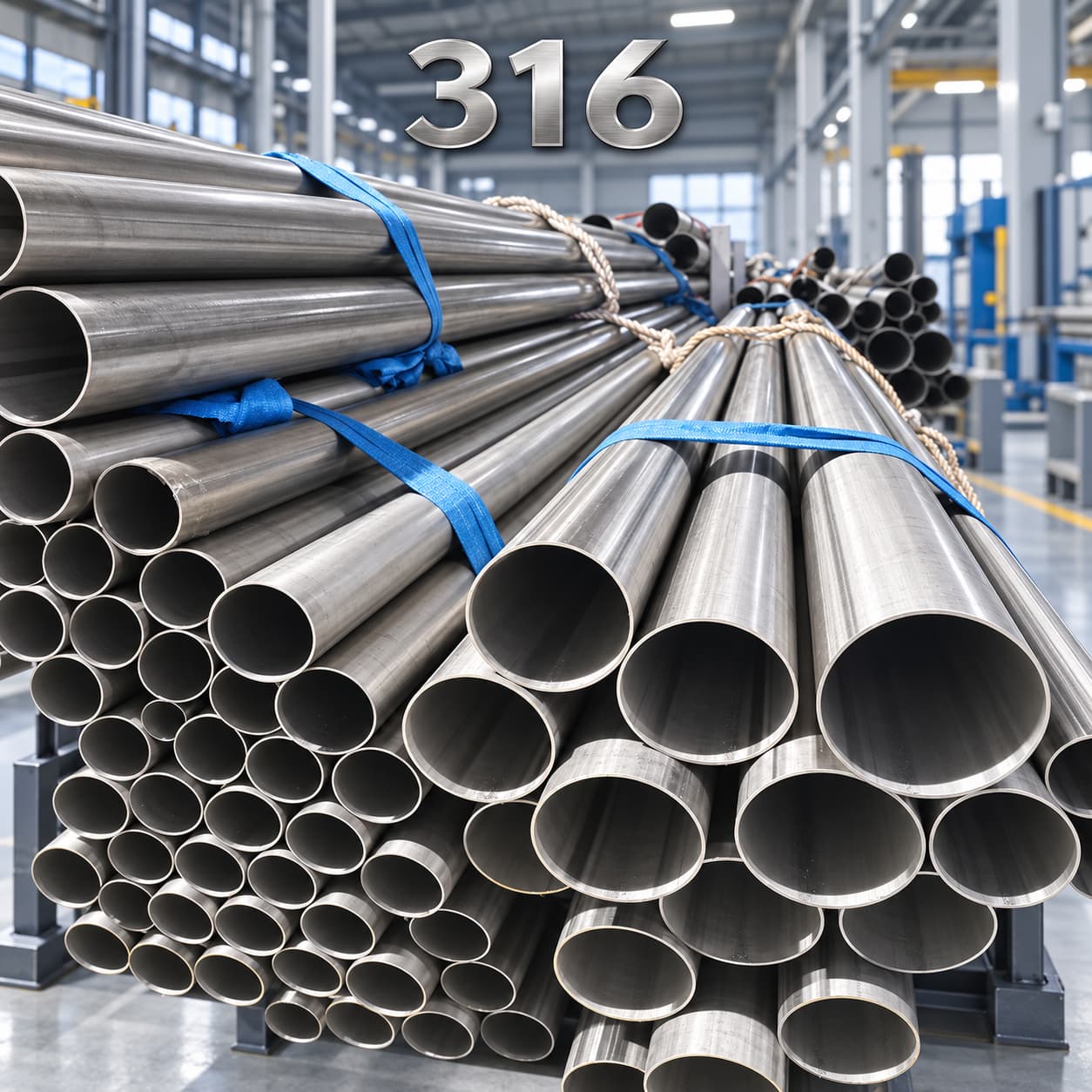

316 Stainless Steel Welded Pipe

Grade: 316/UNS S31600/W.Nr.1.4401

Size: 12mm*0.5mm-2000mm*100mm

Length: 1000mm-12000mm

Standard: ASTM A312, ASTM A269, ASTM A790, ASTM A789 etc.

Surface: No.1(Pickling), Bright(Polished)

316 Stainless Steel Pipe is an austenitic grade containing molybdenum for improved resistance to pitting and crevice corrosion in chloride-bearing environments. It provides good strength, formability, weldability, and corrosion resistance. 316 pipe is widely selected for marine, chemical, pharmaceutical, food-processing, water-treatment, and general industrial piping where exposure to aggressive media requires enhanced performance compared with standard 304 stainless steel.

Chemical Composition
