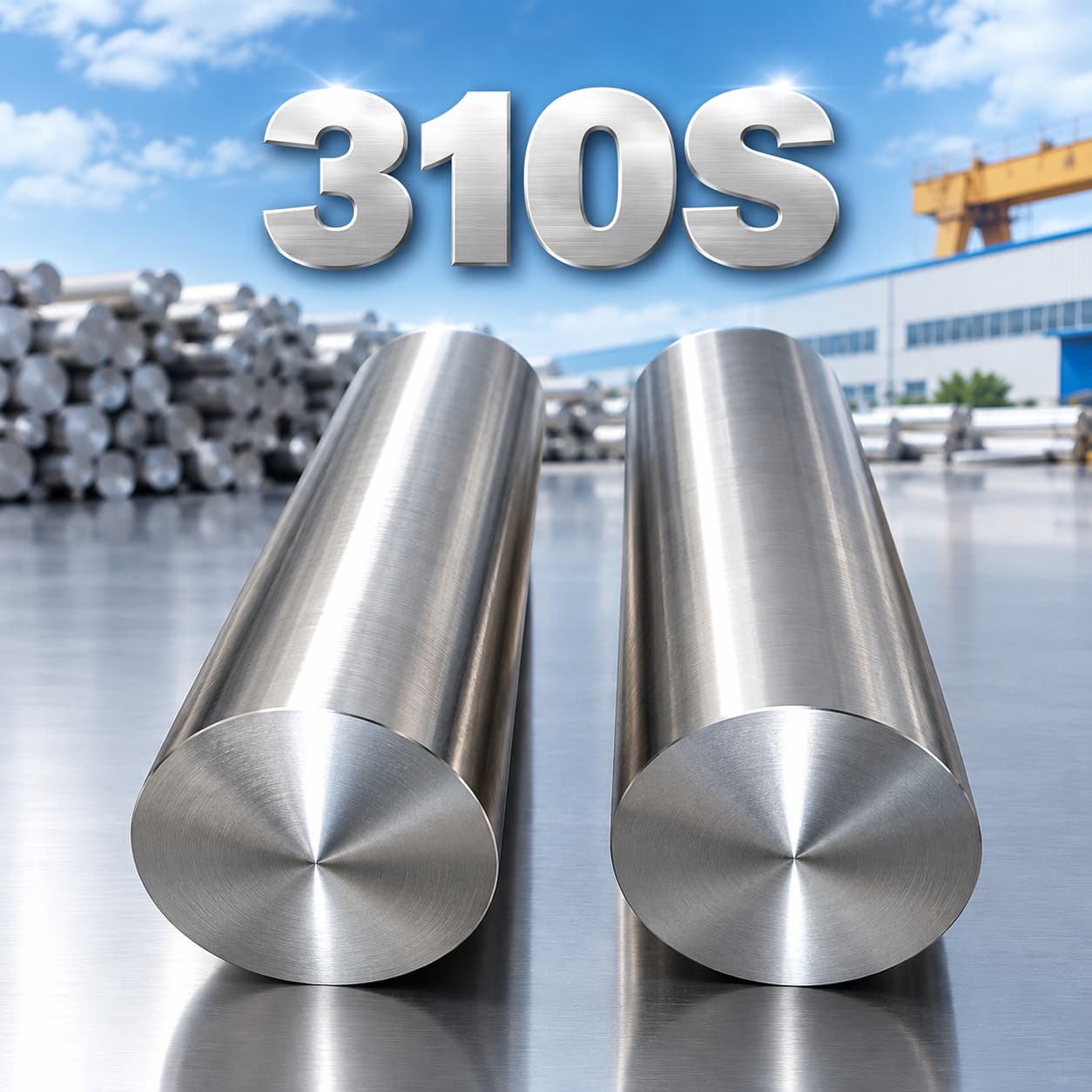

310S Stainless Steel Round Bar
Grade: 310S/UNS S31008
Size:
Cold drawn: φ4mm-φ60mm
Hot Rolled: φ16mm-φ230mm
Forged: φ230mm-φ1200mm
Surface Finish: Black Annealed, Polished Bright, Centerless Grinding
Diameter Tolerance: H9, H11, h9, h11 etc
- Fast Shipping / Ready Stock
- ISO 9001 Direct Factory
- Custom Cutting & Processing
- 100% MTC & SGS Inspection Supported
310S stainless steel is a highly alloyed austenitic heat-resistant stainless steel designed for severe high-temperature service.
It contains approximately 25% chromium and 20% nickel, which provide excellent oxidation resistance, high-temperature strength, and
superior resistance to carburizing, nitriding, and sulfidizing environments compared with conventional stainless steels such as 304 and 316.
The high chromium content promotes the formation of a stable chromium oxide protective layer, which significantly improves scaling
resistance during prolonged exposure to elevated temperatures. The high nickel content stabilizes the austenitic structure, improves
thermal cycling resistance, and enhances resistance to carburization and oxidation in demanding industrial environments.
310S is the low-carbon version of Type 310 stainless steel. The reduced carbon content improves weldability and reduces the risk of
chromium carbide precipitation during welding and high-temperature exposure. This makes 310S suitable for welded fabrications where
corrosion resistance and structural stability must be maintained.
Although primarily designed for high-temperature applications, 310S also provides good corrosion resistance in many aqueous
environments. However, it is not generally selected for chloride-rich solutions where molybdenum-containing grades may perform better.
310S stainless steel is widely used in furnace components, heat treatment equipment, petrochemical processing units, combustion
systems, radiant tubes, kiln parts, and high-temperature industrial equipment. Stainless steel bars manufactured from 310S are used
for shafts, supports, fasteners, and structural components requiring excellent heat resistance.
Standard Designations
| Standard | Designation |
| ASTM / UNS | Type 310S / UNS S31008 |
| JIS | SUS310S |
| EN | 1.4845 / X8CrNi25-21 |
Bar Production Standards
| Standard | Description |
| ASTM A276/A276M | Stainless Steel Bars and Shapes |
| ASTM A479/A479M | Stainless Steel Bars and Shapes for Pressure Vessel Service |
| ASTM A484/A484M | General Requirements for Stainless Steel Bars |
| JIS G4303 | Stainless Steel Bars |
| EN 10088-3 | Stainless Steel Bars and Rods |
Chemical Composition (Typical wt.%)
| Element | Value |
| Carbon (C) | ≤0.08 |
| Chromium (Cr) | 24.00-26.00 |
| Nickel (Ni) | 19.00-22.00 |
| Manganese (Mn) | ≤2.00 |
| Silicon (Si) | ≤1.50 |
| Phosphorus (P) | ≤0.045 |
| Sulfur (S) | ≤0.030 |
| Iron (Fe) | Balance |
Mechanical Properties (Annealed Condition)
| Property | Value |
| Tensile Strength | ≥515 MPa |
| Yield Strength (0.2% Offset) | ≥205 MPa |
| Elongation | ≥40% |
| Hardness (Brinell) | ≤217 HB |
| Hardness (Rockwell B) | ≤95 HRB |
| Density | Approx. 8.03 g/cm³ |
| Modulus of Elasticity | Approx. 200 GPa |
- Industrial furnace components
- Heat treatment equipment
- Radiant tubes
- Combustion chambers
- Petrochemical processing equipment
- Kiln and oven parts
- High-temperature piping systems
- Thermal processing equipment
- High-temperature shafts and supports
