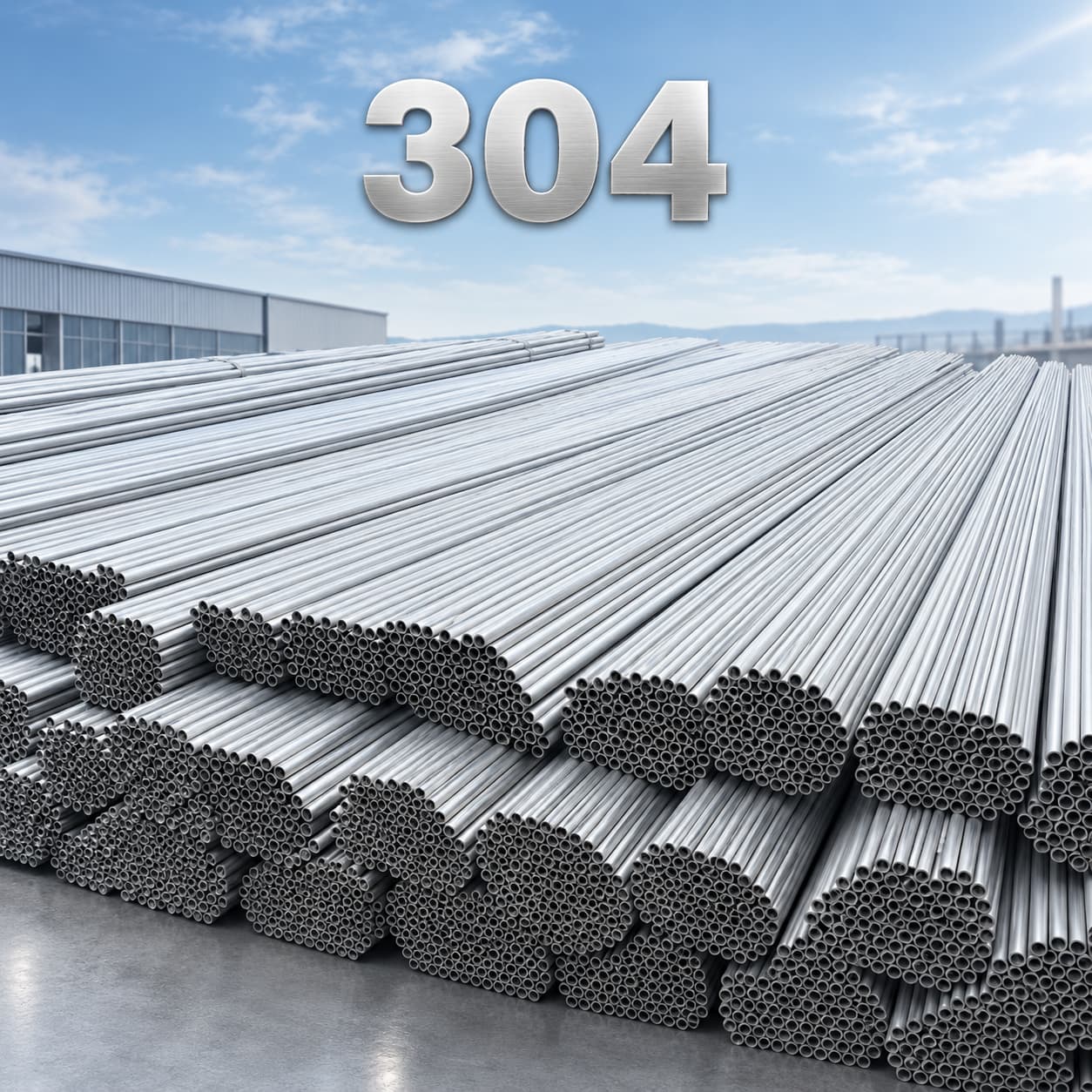

304 Stainless Steel Round Pipe
Grade: 304
Size:
Seamless: 6mm*1mm-720mm*50mm
Welded: 12mm*0.5mm-2000mm*100mm
Coiled: 4mm*0.3mm-32mm*3mm
Standard: ASTM A312, ASTM A213 etc.
Surface: No.1(Pickling), Bright(Polished)
- Fast Shipping / Ready Stock
- ISO 9001 Direct Factory
- Custom Cutting & Processing
- 100% MTC & SGS Inspection Supported
304 Stainless Steel Pipe is a widely used austenitic stainless steel pipe known for its excellent corrosion resistance, good strength, and superior formability. It offers a smooth surface, good weldability, and reliable performance in various industrial environments. 304 stainless steel pipe is available in seamless and welded forms and is widely used for fluid transportation, structural applications, food processing, chemical equipment, and general industrial piping.
Chemical Composition
| Element | Composition (%) |
| Carbon (C) | ≤ 0.08 |
| Silicon (Si) | ≤ 1.00 |
| Manganese (Mn) | ≤ 2.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Chromium (Cr) | 18.0–20.0 |
| Nickel (Ni) | 8.0–11.0 |
| Molybdenum (Mo) | — |
| Iron (Fe) | Balance |
Values shown are typical ASTM A312 TP304 requirements; the final chemical composition should be confirmed according to the applicable standard and material test certificate.
Mechanical Properties
| Property | Requirement |
| Tensile Strength | ≥ 515 MPa |
| Yield Strength (0.2%) | ≥ 205 MPa |
| Elongation | ≥ 35% |
| Hardness | ≤ 92 HRB |
| Brinell Hardness | ≤ 192 HBW |
Mechanical properties are based on ASTM A312 TP304 requirements for solution-annealed pipe.
- Food & Beverage Processing Equipment
- Chemical Processing Equipment
- Water Treatment Systems
- Pharmaceutical Equipment
- Oil & Gas Piping Systems
- Petrochemical Industries
- Heat Exchangers
- Industrial Fluid Transportation
- Architectural & Structural Applications
- Kitchen & Catering Equipment
- Automotive Components
- General Industrial Machinery
304 Stainless Steel Pipe is a widely used austenitic stainless steel pipe known for its excellent corrosion resistance, good strength, and superior formability. It offers a smooth surface, good weldability, and reliable performance in various industrial environments. 304 stainless steel pipe is available in seamless and welded forms and is widely used for fluid transportation, structural applications, food processing, chemical equipment, and general industrial piping.
Chemical Composition
| Element | Composition (%) |
| Carbon (C) | ≤ 0.08 |
| Silicon (Si) | ≤ 1.00 |
| Manganese (Mn) | ≤ 2.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Chromium (Cr) | 18.0–20.0 |
| Nickel (Ni) | 8.0–11.0 |
| Molybdenum (Mo) | — |
| Iron (Fe) | Balance |
Values shown are typical ASTM A312 TP304 requirements; the final chemical composition should be confirmed according to the applicable standard and material test certificate.
Mechanical Properties
| Property | Requirement |
| Tensile Strength | ≥ 515 MPa |
| Yield Strength (0.2%) | ≥ 205 MPa |
| Elongation | ≥ 35% |
| Hardness | ≤ 92 HRB |
| Brinell Hardness | ≤ 192 HBW |
Mechanical properties are based on ASTM A312 TP304 requirements for solution-annealed pipe.
- Food & Beverage Processing Equipment
- Chemical Processing Equipment
- Water Treatment Systems
- Pharmaceutical Equipment
- Oil & Gas Piping Systems
- Petrochemical Industries
- Heat Exchangers
- Industrial Fluid Transportation
- Architectural & Structural Applications
- Kitchen & Catering Equipment
- Automotive Components
- General Industrial Machinery
