304 Stainless Steel Mesh

Grade: 304

Mesh Type:

Plain Weave Mesh, Twill Weave Mesh, Dutch Weave Mesh, Welded Wire Mesh

Common Wire Diameter:

0.025–3.0 mm

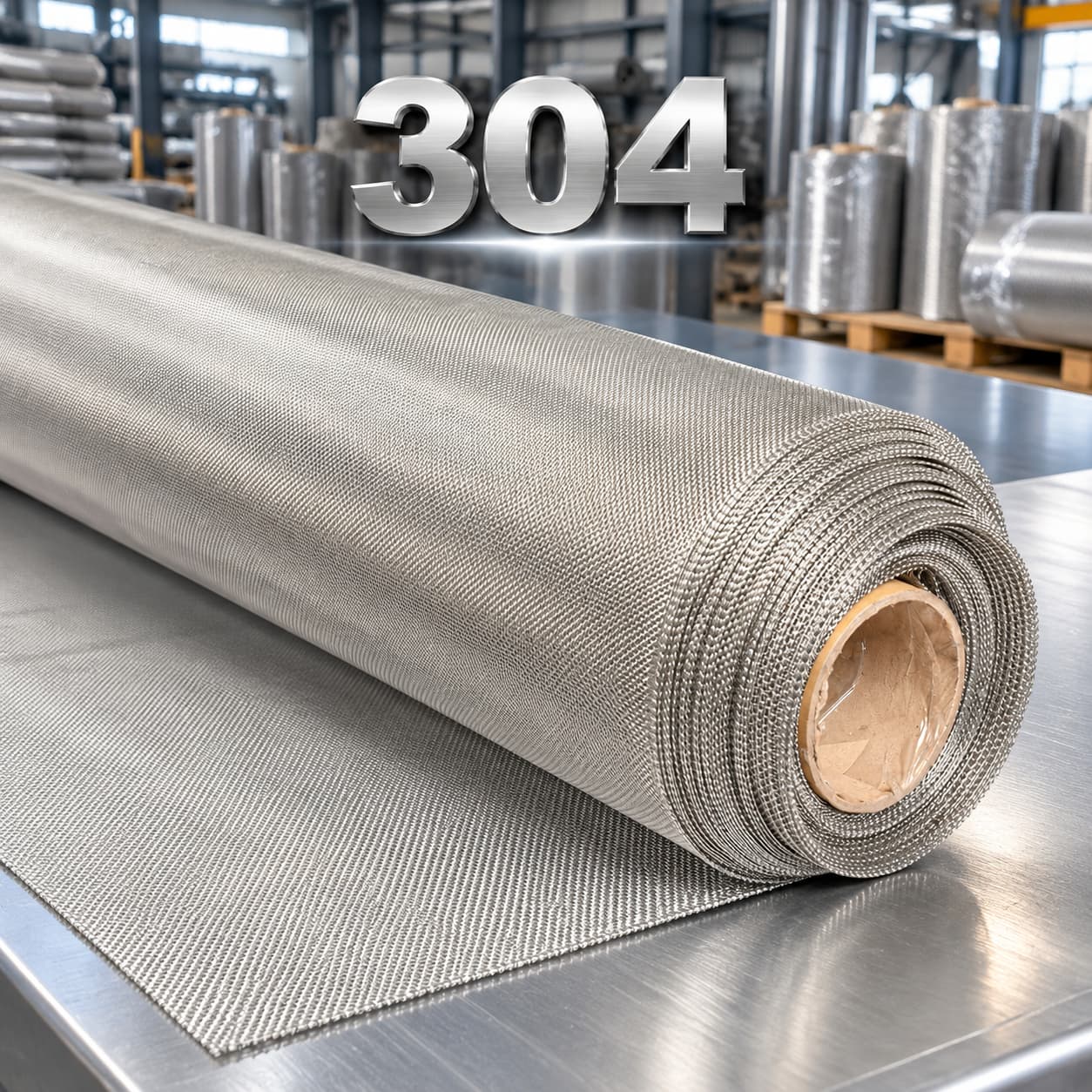

304 stainless steel wire mesh is the most widely used stainless steel mesh material. It provides good corrosion resistance, excellent processing performance and stable mechanical properties. It is suitable for general industrial filtration and screening applications where extreme corrosion resistance is not required.

Common Mesh Specifications and Mesh Counts

Mesh Count	Wire Diameter	Typical Application
1–20 mesh	0.5–3.0 mm	Heavy screening
20–100 mesh	0.10–0.50 mm	Industrial filtration
100–300 mesh	0.025–0.15 mm	Fine filtration
300–500 mesh	0.02–0.05 mm	Precision filtration

Wire Mesh Types and Characteristics

Mesh Type	Characteristics
Plain Weave Mesh	Simple structure, uniform openings, widely used for general filtration.
Twill Weave Mesh	Higher strength and suitable for finer filtration.
Dutch Weave Mesh	High precision filtration for liquid and gas filtration.
Welded Wire Mesh	Strong structure for protection and industrial applications.

Food processing and pharmaceutical filtration
Chemical and industrial screening
Architectural decoration
Air and liquid filtration

Introduction

Specification

Common Mesh Specifications and Mesh Counts

Mesh Count	Wire Diameter	Typical Application
1–20 mesh	0.5–3.0 mm	Heavy screening
20–100 mesh	0.10–0.50 mm	Industrial filtration
100–300 mesh	0.025–0.15 mm	Fine filtration
300–500 mesh	0.02–0.05 mm	Precision filtration

Types

Wire Mesh Types and Characteristics

Mesh Type	Characteristics
Plain Weave Mesh	Simple structure, uniform openings, widely used for general filtration.
Twill Weave Mesh	Higher strength and suitable for finer filtration.
Dutch Weave Mesh	High precision filtration for liquid and gas filtration.
Welded Wire Mesh	Strong structure for protection and industrial applications.
