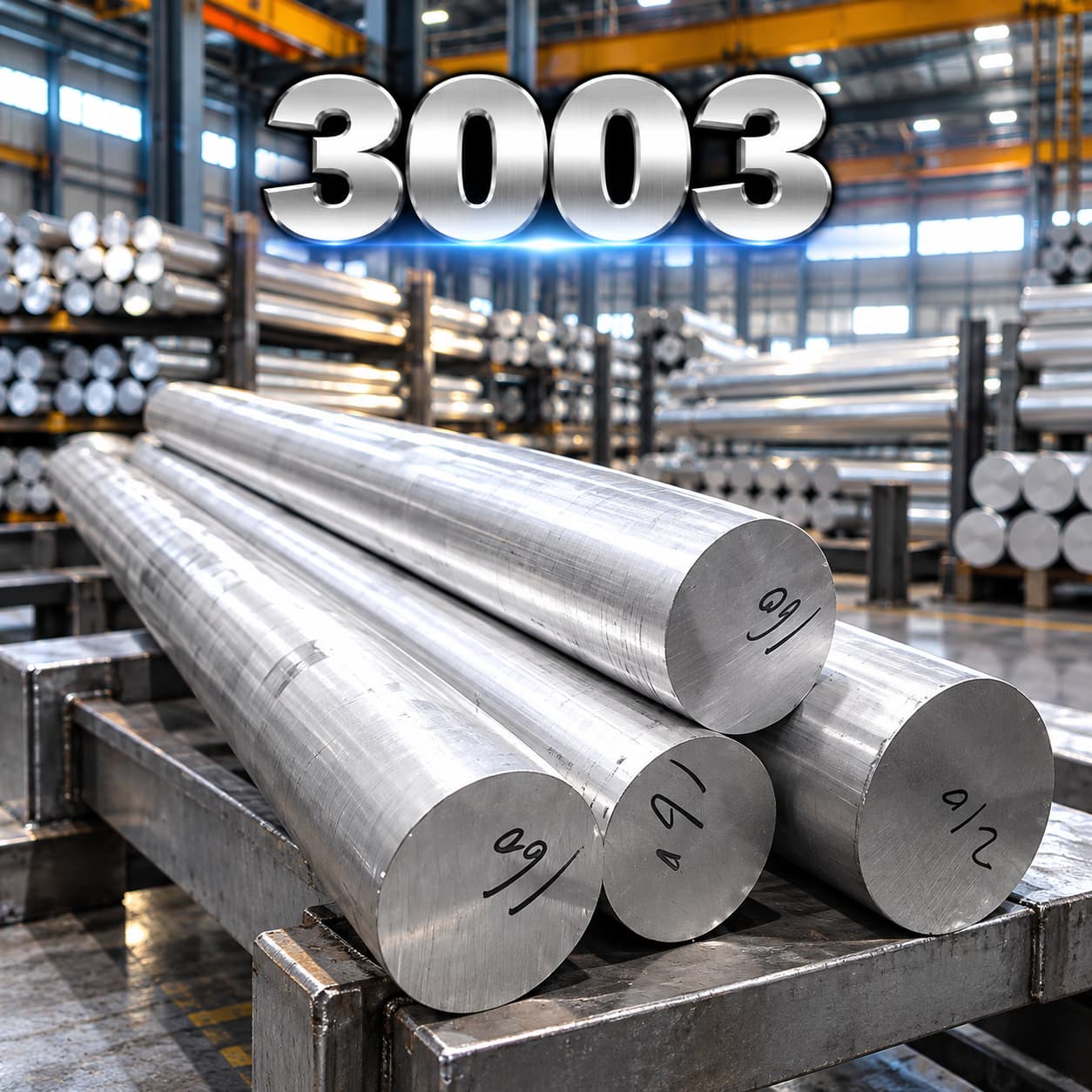

3003 Aluminum Bar and Rod

Grade: 3003

Size:

Cold drawn: 2mm-12mm

Extruded: 6mm-400mm

Standard: ASTM, AMS, BS etc.

3003 is a non heat treatable aluminum manganese alloy with moderate strength, good corrosion resistance and useful forming characteristics. Bar and rod can serve formed components and machined parts where very high strength is unnecessary. The annealed condition provides greater ductility, while fabrication or cold working can increase strength. Welding is generally practical. Stock availability is less widespread than for 6061, so the required bar shape, temper and manufacturing route should be confirmed before finalizing a design.

Chemical composition

Element	Mass percent	Element	Mass percent
Si	0.6	Fe	0.7
Cu	0.05–0.20	Mn	1.0–1.5
Mg	—	Cr	—
Zn	0.10	Ti	—
Additional	—	Others each / total	0.05 / 0.15
Al	Remainder

Mechanical properties by temper

Temper	Size or basis	UTS MPa	Yield MPa	Elongation %
O	All listed sizes	97–131	≥34	≥25
H112	All listed sizes	≥97	≥34	Not specified

Application areas

Formed industrial hardware and lightly loaded parts
Corrosion resistant components for food and process equipment
Machined spacers and fittings where high strength is unnecessary
