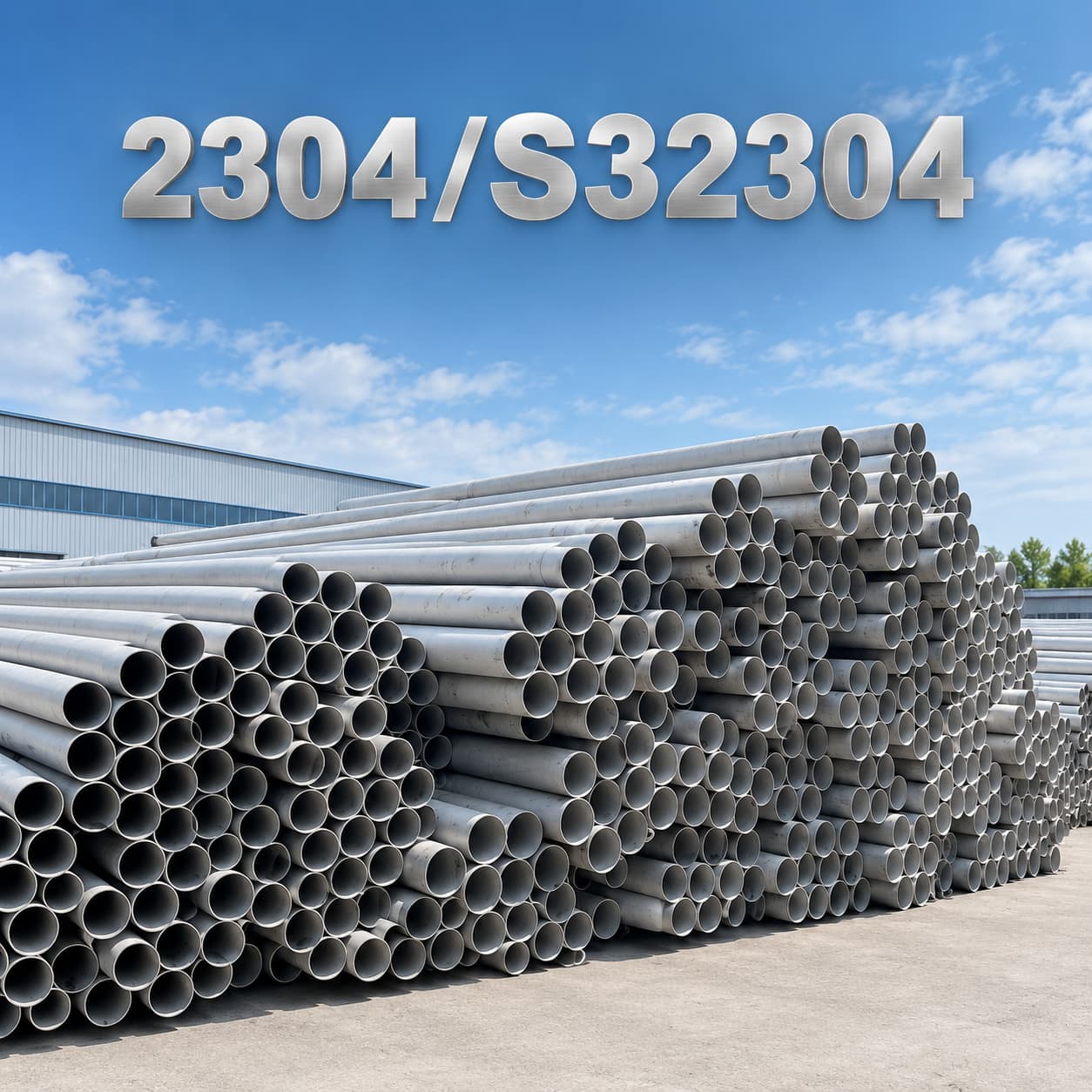

2304 Stainless Steel Round Pipe

Grade: 2304/S32304

Size:

Seamless: 6mm*1mm-720mm*50mm

Welded: 12mm*0.5mm-2000mm*100mm

Coiled: 4mm*0.3mm-32mm*3mm

Standard: ASTM A312, ASTM A213 etc.

Surface: No.1(Pickling), Bright(Polished)

2304 Stainless Steel Pipe is a lean duplex stainless steel combining austenitic and ferritic phases to provide high strength, good toughness, and strong resistance to stress corrosion cracking. With lower alloy content than super duplex grades, 2304 offers an economical balance of corrosion resistance and mechanical performance. It is widely used in structural piping, water treatment, chemical processing, storage tanks, and industrial equipment.

Chemical Composition

Element	Content (wt. %)
C	≤0.030
Si	≤1.00
Mn	≤2.50
P	≤0.040
S	≤0.030
Cr	21.5–24.5
Ni	3.0–5.5
Mo	0.05–0.60
N	0.05–0.20
Other	Cu: ≤0.60; Fe: Balance

Mechanical Properties

Condition	Tensile Strength	Yield Strength (0.2%)	Elongation	Hardness
Solution annealed	≥600	≥400	≥25	≤293 HB

Water treatment
Chemical processing
Storage tanks
Structural piping
Oil and gas equipment
Heat exchangers
