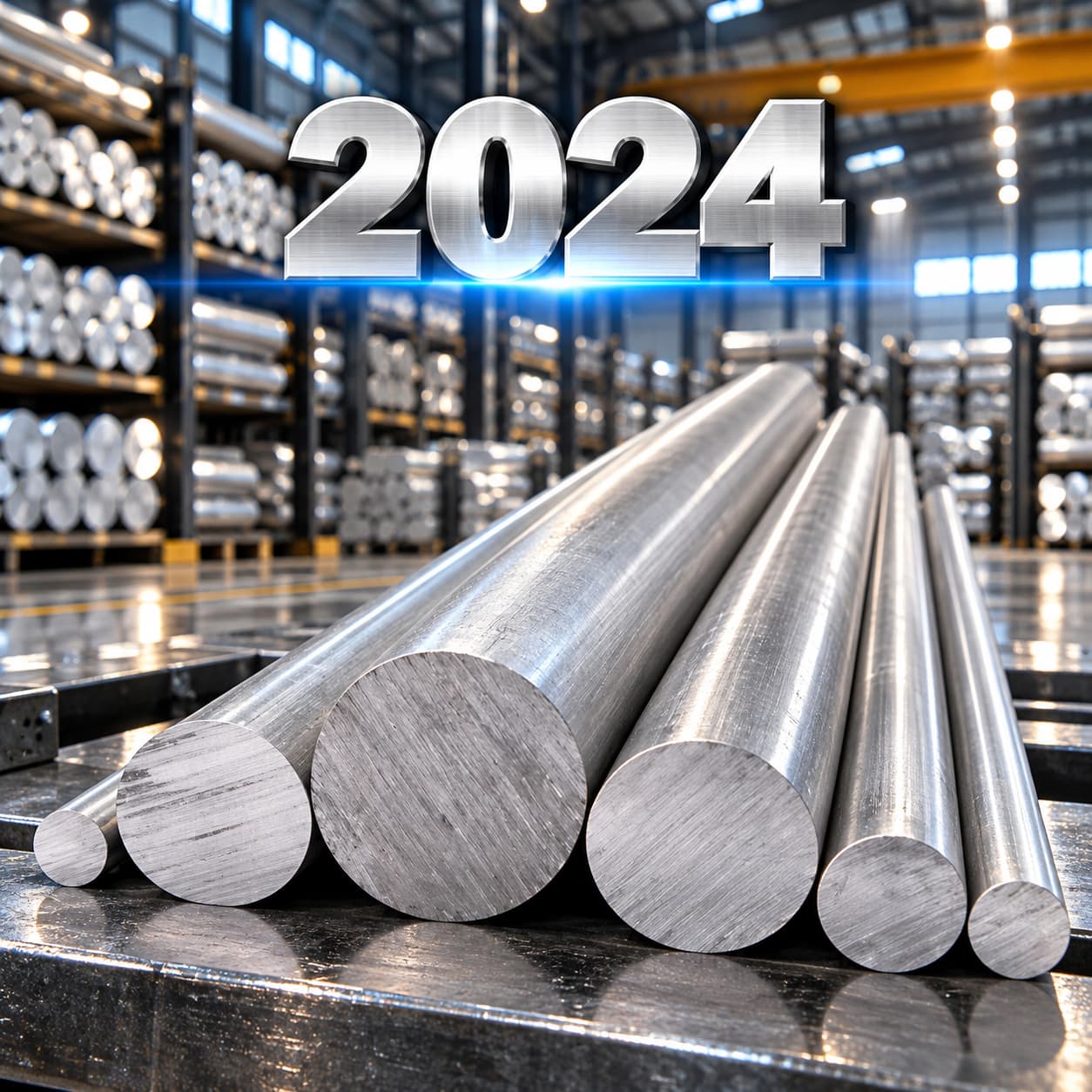

2024 Aluminum Bar and Rod

Grade: 2024

Size:

Cold drawn: 2mm-12mm

Extruded: 6mm-400mm

Standard: ASTM, AMS, BS etc.

2024 is a heat treatable aluminum copper magnesium alloy selected for high strength and fatigue performance. Bar and rod are widely used as stock for aerospace fittings and precision machined components. Naturally aged T4 and T351 conditions combine useful ductility with strength, while artificially aged conditions increase yield strength. Corrosion resistance is lower than that of many 5xxx and 6xxx grades, making protective finishes important. Conventional fusion welding is generally avoided in critical structures because of cracking and strength loss.

Chemical composition

Element	Mass percent	Element	Mass percent
Si	0.50	Fe	0.50
Cu	3.8–4.9	Mn	0.30–0.9
Mg	1.2–1.8	Cr	0.10
Zn	0.25	Ti	0.15
Additional	—	Others each / total	0.05 / 0.15
Al	Remainder

Mechanical properties by temper

Temper	Size or basis	UTS MPa	Yield MPa	Elongation %
O	Typical rod/bar	186	76	22
T4 / T351	Typical rod/bar	469	324	19
T6	Typical rod/bar	476	393	10
T851	Typical rod/bar	482	448	7

Application areas

Aircraft fittings and structural machined components
Fatigue loaded links and mechanical parts
Precision aerospace fasteners and hardware to qualified drawings
