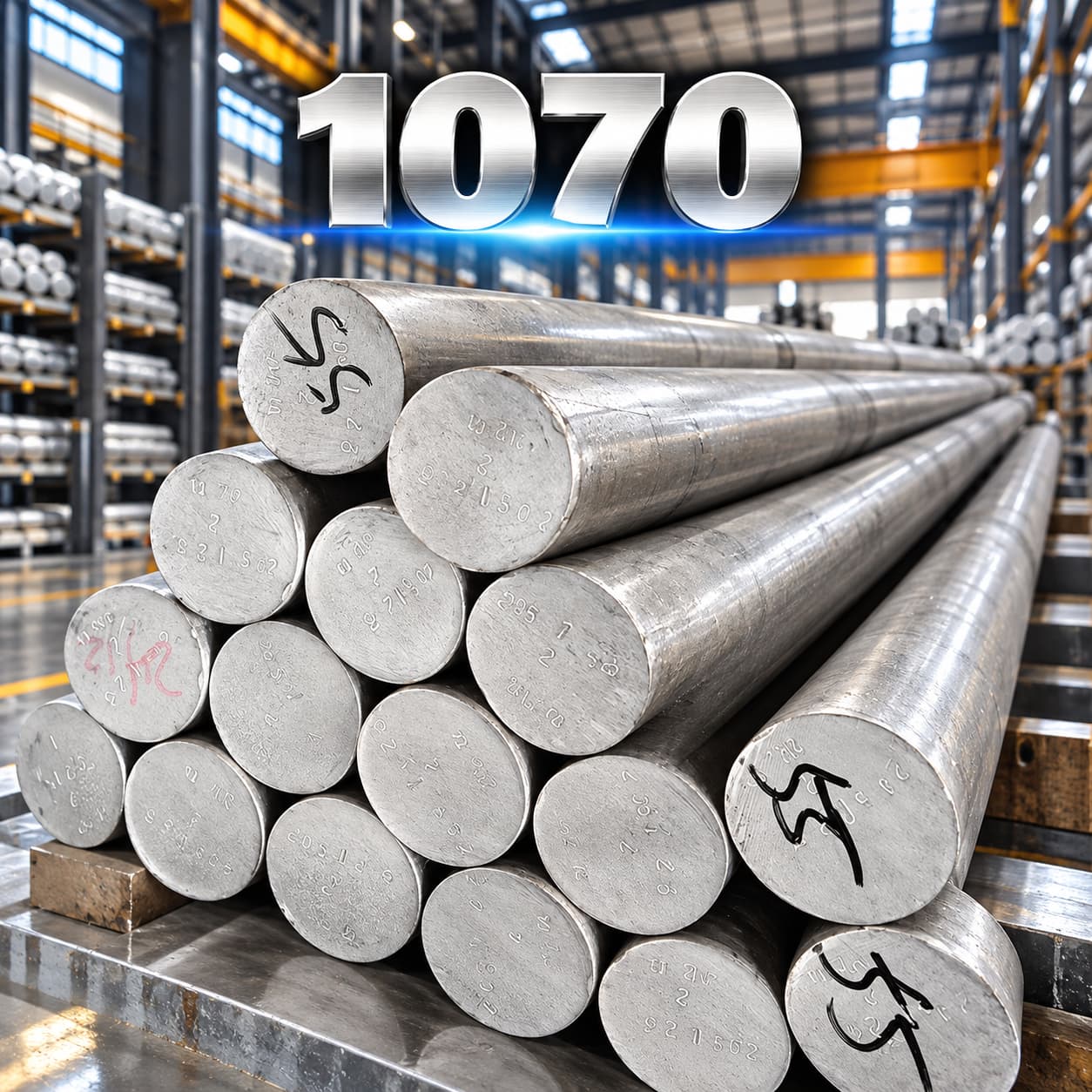

1070 Aluminum Bar and Rod

Grade: 1070

Size:

Cold drawn: 2mm-12mm

Extruded: 6mm-400mm

Standard: ASTM, AMS, BS etc.

1070 is commercially pure aluminum with a minimum aluminum content of 99.70 percent. Solid bars and rods offer high electrical and thermal conductivity, good corrosion resistance and excellent ductility. The alloy is not precipitation hardenable; cold working increases strength while reducing formability. Its relatively low strength favors conductive parts and lightly loaded components. Soft material can produce long chips during machining. Electrical service requires conductivity testing and an agreed product specification in addition to chemical compliance.

Chemical composition

Element	Mass percent	Element	Mass percent
Si	0.20	Fe	0.25
Cu	0.04	Mn	0.03
Mg	0.03	Cr	—
Zn	0.04	Ti	0.03
Additional	V 0.05	Others each / total	0.03 / not separately set
Al	≥99.70

Mechanical properties by temper

Temper	Size or basis	UTS MPa	Yield MPa	Elongation %
O	Solid bar	Not verified	Not verified	Not verified
H112	Flat bar ≤150 mm	≥60	≥15	Not specified
H14	Cold worked bar	By agreement	By agreement	By agreement

Application areas

Electrical busbars, terminals and conductive parts
Heat transfer blocks and low load thermal components
Ductile stock for forming and compatible chemical equipment
