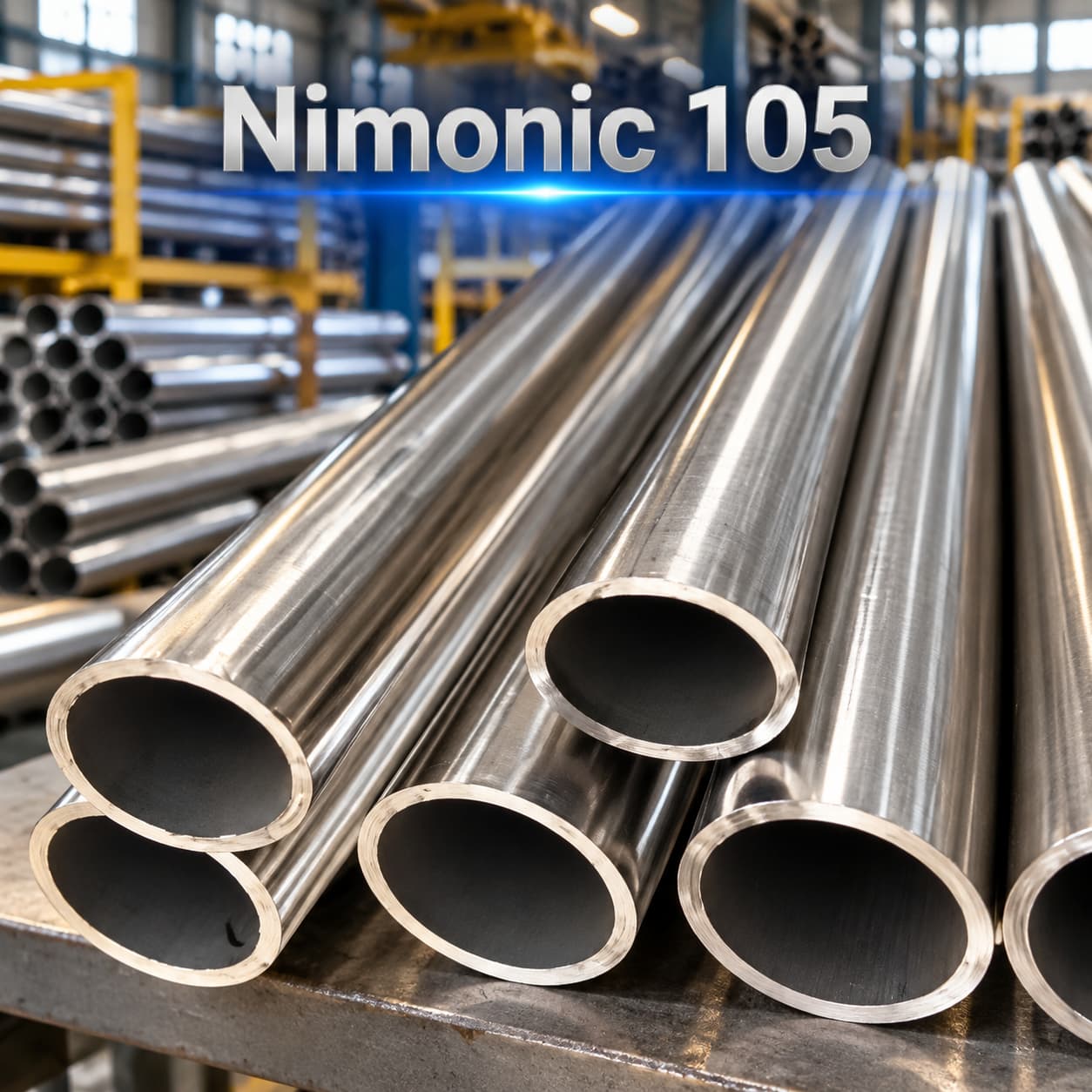

Alloy 105/Nimonic 105

Grade: Nimonic 105/W.Nr 2.4634

Sheet/Plate: 0.3mm-150mm

Strip/Foil: 0.02mm-16mm

Pipe: 6mm*0.5mm-1200mm*100mm

Bar: Ф6mm – Ф600mm

Wire: Ф0.01mm – Ф6mm

Others: Forged Rings, Flanges, Elbows, Tees, Reducers etc.

Standard: ASTM/ASME/AMS

NIMONIC 105 is a wrought nickel cobalt chromium alloy strengthened by molybdenum, aluminium and titanium. It combines precipitation-hardened strength with creep resistance for service up to approximately 950°C. The relatively high aluminium content supports strong aging response. Different heat treatments are recommended for turbine structures and fasteners, allowing the balance between long-term creep performance, tensile strength and ductility to be adjusted for the intended service.

Chemical composition

Element	Weight percent	Element	Weight percent
Ni	Balance	Cr	14.0–15.7
Co	18.0–22.0	Mo	4.5–5.5
Al	4.5–4.9	Ti	0.9–1.5
C	0.17 max	Si	1.0 max
Mn	1.0 max	Cu	0.2 max
Fe	1.0 max	Pb	0.0015 max
S	0.010 max	B	0.003–0.010
Zr	0.15 max	—	—

Mechanical properties

Extruded bar; 1150°C for 4 h / air cool plus 1050–1065°C for 16 h / air cool plus 850°C for 16 h / air cool. Special Metals Table 7, average of 15 casts. Elongation uses 5.65√S0.

Test temperature °C	0.2% proof MPa	Tensile MPa	Elongation %
20	776	1140	22
600	720	1038	25
700	732	1018	28
800	677	813	25
900	400	496	30

Application areas

- Gas turbine blades and discs
- Turbine forgings and ring sections
- High-temperature bolts and fasteners
- Machined turbine parts from bar or extruded sections

Introduction

Specification

Chemical composition

Element	Weight percent	Element	Weight percent
Ni	Balance	Cr	14.0–15.7
Co	18.0–22.0	Mo	4.5–5.5
Al	4.5–4.9	Ti	0.9–1.5
C	0.17 max	Si	1.0 max
Mn	1.0 max	Cu	0.2 max
Fe	1.0 max	Pb	0.0015 max
S	0.010 max	B	0.003–0.010
Zr	0.15 max	—	—

Mechanical

Mechanical properties

Extruded bar; 1150°C for 4 h / air cool plus 1050–1065°C for 16 h / air cool plus 850°C for 16 h / air cool. Special Metals Table 7, average of 15 casts. Elongation uses 5.65√S0.

Test temperature °C	0.2% proof MPa	Tensile MPa	Elongation %
20	776	1140	22
600	720	1038	25
700	732	1018	28
800	677	813	25
900	400	496	30

Application

Application areas

- Gas turbine blades and discs
- Turbine forgings and ring sections
- High-temperature bolts and fasteners
- Machined turbine parts from bar or extruded sections
