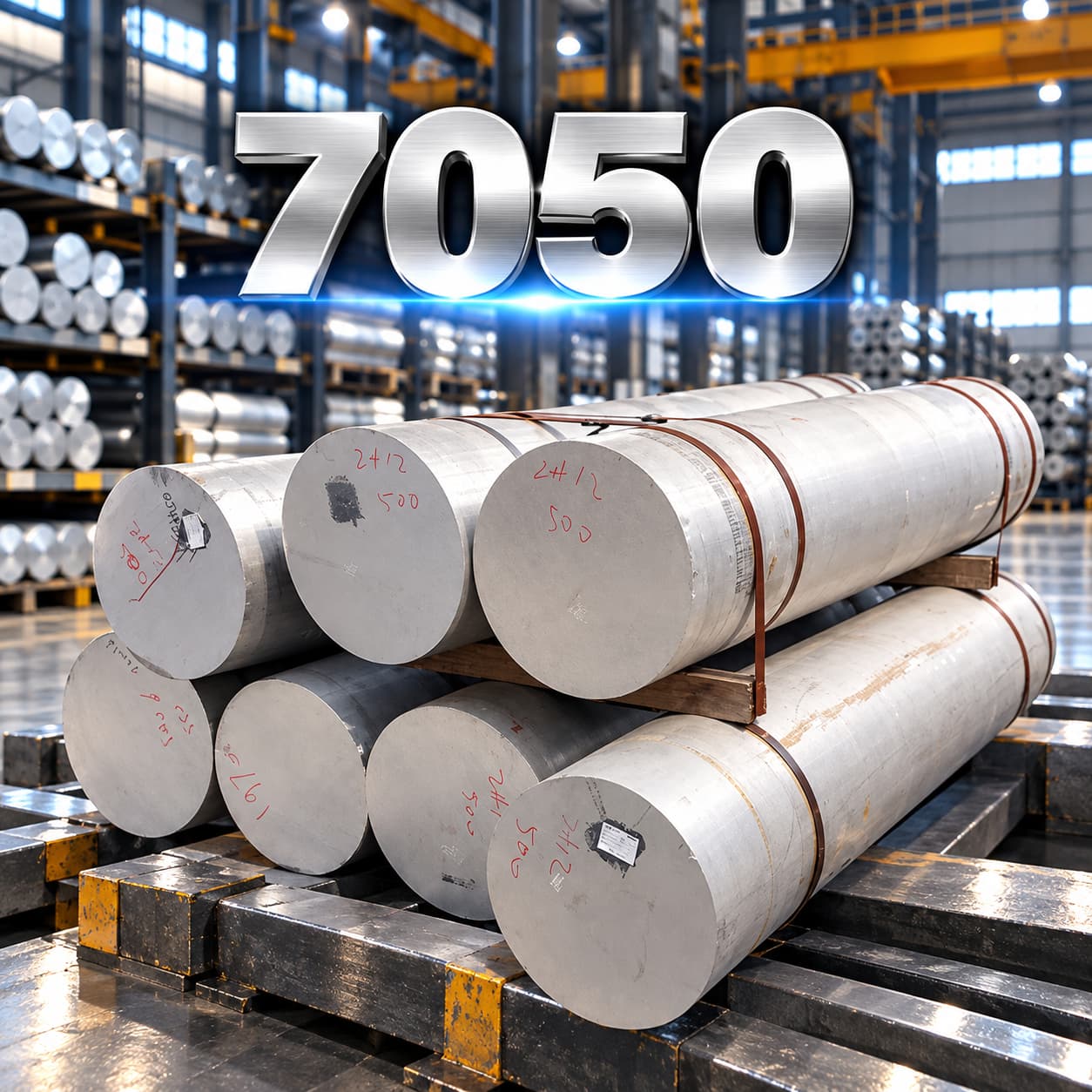

7050 Aluminum Bar and Rod

Grade: 7050

Size:

Cold drawn: 2mm-12mm

Extruded: 6mm-400mm

Standard: ASTM, AMS, BS etc.

7050 is a high strength aluminum zinc magnesium copper zirconium alloy developed for aerospace structures requiring strength, toughness and corrosion performance. Extruded bar and rod are often supplied in stress relieved, overaged conditions such as T73511 and T76511. Zirconium assists microstructure control, and temper selection balances strength against corrosion resistance. Machined structural components require careful inspection and specification control. Plate values and plate temper designations must not be assumed to apply to bar, rod or extrusions.

Chemical composition

Element	Mass percent	Element	Mass percent
Si	0.12	Fe	0.15
Cu	2.0–2.6	Mn	0.10
Mg	1.9–2.6	Cr	0.04
Zn	5.7–6.7	Ti	0.06
Additional	Zr 0.08–0.15	Others each / total	0.05 / 0.15
Al	Remainder

Mechanical properties by temper

Temper	Size or basis	UTS MPa	Yield MPa	Elongation %
T76511	Typical rod/bar	552	489	11
T74511	Typical rod/bar	524	469	11

Application areas

Aircraft structural fittings and extruded members
High strength machined aerospace components
Large section structural parts requiring qualified toughness and corrosion performance

Introduction

Specification

Chemical composition

Element	Mass percent	Element	Mass percent
Si	0.12	Fe	0.15
Cu	2.0–2.6	Mn	0.10
Mg	1.9–2.6	Cr	0.04
Zn	5.7–6.7	Ti	0.06
Additional	Zr 0.08–0.15	Others each / total	0.05 / 0.15
Al	Remainder

Mechanical

Mechanical properties by temper

Temper	Size or basis	UTS MPa	Yield MPa	Elongation %
T76511	Typical rod/bar	552	489	11
T74511	Typical rod/bar	524	469	11

Application

Application areas

Aircraft structural fittings and extruded members
High strength machined aerospace components
Large section structural parts requiring qualified toughness and corrosion performance
