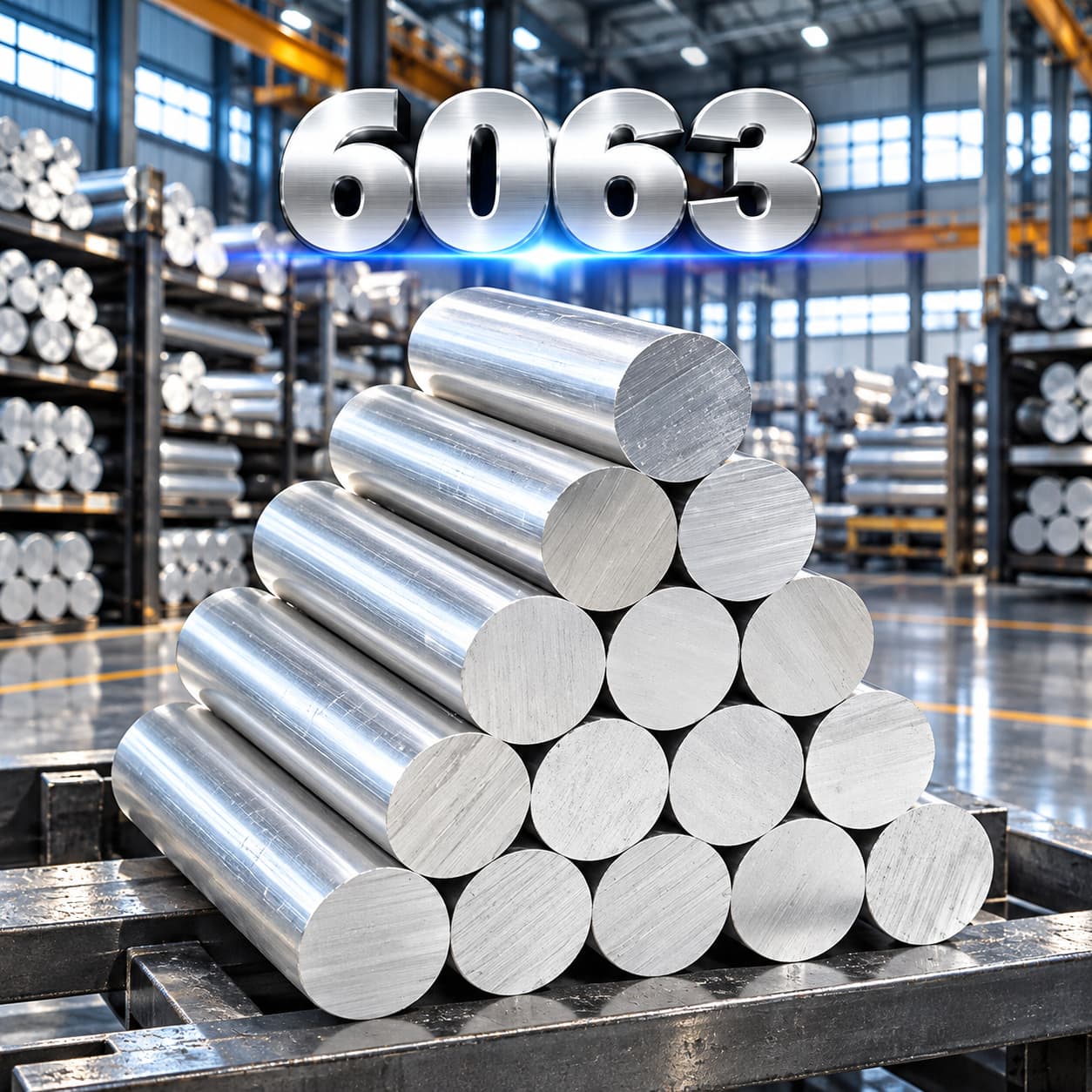

6063 Aluminum Bar and Rod

Grade: 6063

Size:

Cold drawn: 2mm-12mm

Extruded: 6mm-400mm

Standard: ASTM, AMS, BS etc.

6063 is a heat treatable aluminum magnesium silicon alloy known for good extrudability, surface finish and anodizing response. Extruded bars are useful for architectural details, decorative hardware and lightly loaded equipment parts. T5 and T6 provide useful strength, while T4 allows more forming before final aging. Its strength is generally below that of 6061 in comparable conditions. Welding is feasible, but local strength falls in the heat affected zone and must be considered for load bearing applications.

Chemical composition

Element	Mass percent	Element	Mass percent
Si	0.20–0.6	Fe	0.35
Cu	0.10	Mn	0.10
Mg	0.45–0.9	Cr	0.10
Zn	0.10	Ti	0.10
Additional	—	Others each / total	0.05 / 0.15
Al	Remainder

Mechanical properties by temper

Temper	Size or basis	UTS MPa	Yield MPa	Elongation %
O	All listed sizes	≤131	Not specified	≥18
T4	≤12.70 mm	≥131	≥69	≥14
T5	≤12.70 mm	≥152	≥110	≥8
T6	3.175–25.40 mm	≥207	≥172	≥10

Application areas

Architectural trim, railings and decorative hardware
Anodized furniture and display components
Lightly loaded brackets, spacers and equipment parts
