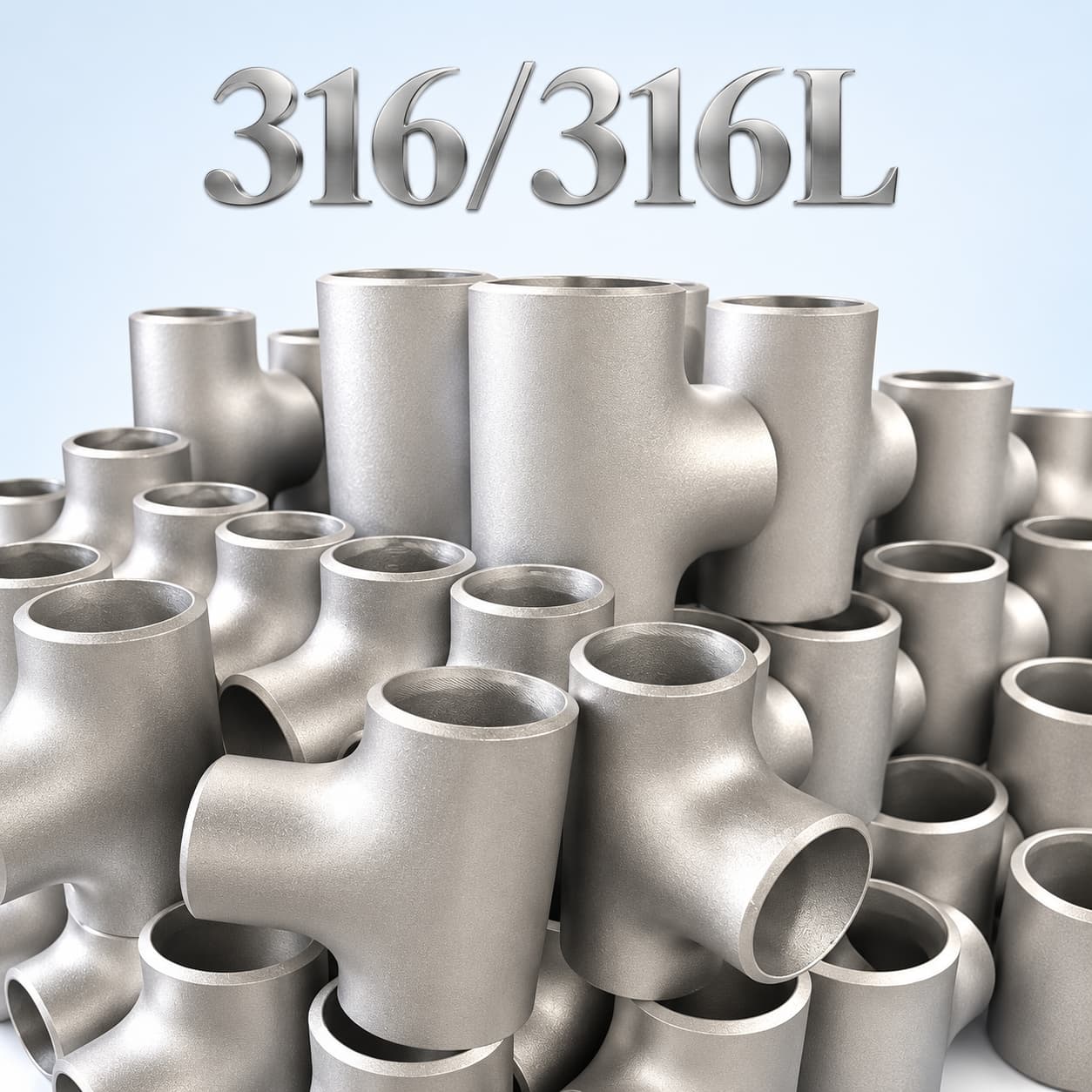

316 / 316L Stainless Steel Tees

Grade: 316/316L

Types:

Equal Tee, Straight Tee, Reducing Tee, Seamless Tee, Welded Tee, Butt-Welding Tee.

Standards:

ASTM B16.9, EN10253-4, JIS B2312/2313

316 and 316L are molybdenum-bearing austenitic stainless steels with improved resistance to pitting and crevice corrosion compared with 304, especially in chloride-containing environments. 316L is the lower-carbon version and is commonly selected for welded piping systems. Stainless steel fittings made from these grades are widely used in chemical, pharmaceutical, marine, food-processing, water-treatment and other corrosive services.

Chemical Composition

Element	Specified / Typical Range (wt. %)
C	≤0.07 / ≤0.030
Mn	≤2.00
Si	≤1.00
P	≤0.045
S	≤0.030
Cr	16.0–18.0
Ni	10.0–14.0
Mo	2.0–3.0
N	≤0.10
Fe	Balance

Mechanical Properties

Property	Minimum / Requirement
Tensile Strength, min.	515 MPa (316) / 485 MPa (316L)
Yield Strength, 0.2%, min.	205 MPa (316) / 170 MPa (316L)
Elongation, min.	30%
Hardness	As required by the applicable fitting specification

Chemical and petrochemical plants
Oil and gas gathering and processing
Process branch piping
Water treatment and utility systems
Food, pharmaceutical and sanitary piping
Offshore and marine systems
