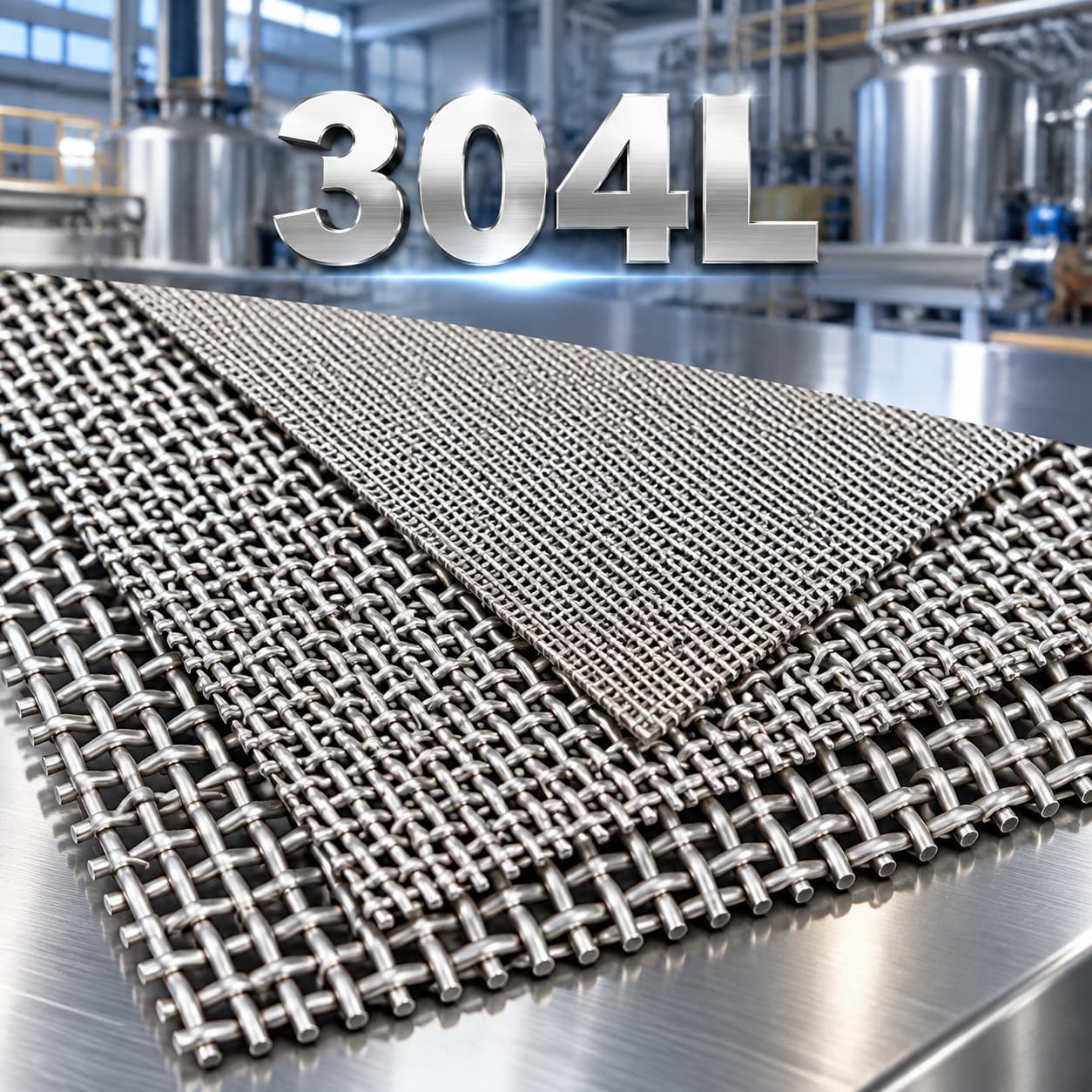

304L Stainless Steel Mesh

Grade: 304L/UNS S30403

Mesh Type:

Plain Weave Mesh, Twill Weave Mesh, Dutch Weave Mesh, Welded Wire Mesh

Common Wire Diameter:

0.025–3.0 mm

304L stainless steel wire mesh is a low carbon version of 304 stainless steel. It has improved welding performance and reduced risk of intergranular corrosion after welding. It is commonly selected for welded equipment and applications requiring long service life.

Common Mesh Specifications and Mesh Counts

Mesh Count	Wire Diameter	Typical Application
1–20 mesh	0.5–3.0 mm	Heavy screening
20–100 mesh	0.10–0.50 mm	Industrial filtration
100–300 mesh	0.025–0.15 mm	Fine filtration
300–500 mesh	0.02–0.05 mm	Precision filtration

Wire Mesh Types and Characteristics

Mesh Type	Characteristics
Plain Weave Mesh	Simple structure, uniform openings, widely used for general filtration.
Twill Weave Mesh	Higher strength and suitable for finer filtration.
Dutch Weave Mesh	High precision filtration for liquid and gas filtration.
Welded Wire Mesh	Strong structure for protection and industrial applications.

Chemical equipment
Pressure vessels
Welded structures
Food and pharmaceutical equipment

Introduction

Specification

Common Mesh Specifications and Mesh Counts

Mesh Count	Wire Diameter	Typical Application
1–20 mesh	0.5–3.0 mm	Heavy screening
20–100 mesh	0.10–0.50 mm	Industrial filtration
100–300 mesh	0.025–0.15 mm	Fine filtration
300–500 mesh	0.02–0.05 mm	Precision filtration

Types

Wire Mesh Types and Characteristics

Mesh Type	Characteristics
Plain Weave Mesh	Simple structure, uniform openings, widely used for general filtration.
Twill Weave Mesh	Higher strength and suitable for finer filtration.
Dutch Weave Mesh	High precision filtration for liquid and gas filtration.
Welded Wire Mesh	Strong structure for protection and industrial applications.
